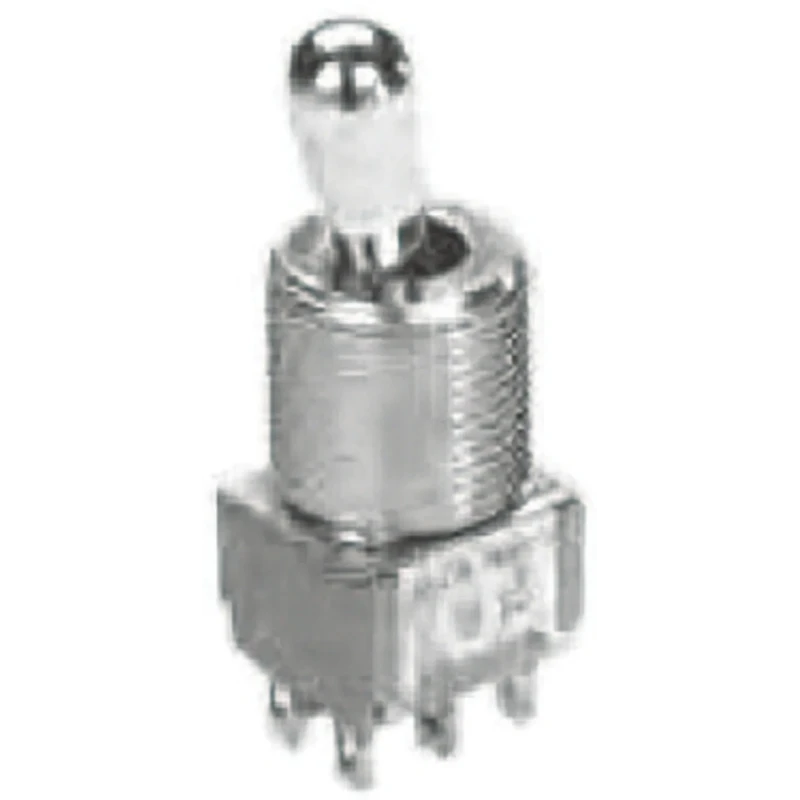

TE Connectivity Panel Mount Toggle Switch, On-Off-On, DPDT, Solder Terminal, 28 V dc, 125 V ac 1-1825139-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Mount Type | Panel |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 711-0000Brand: TE ConnectivityManufacturers Part No.: 1-1825139-9 |
| Switch Operation | On-Off-On |
| Actuator Length | 17.5mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 125V ac |
| Actuator Material | Phenolic |
Key Features
- The switch supports solder terminals for secure connections.
- Rated for 5A current with AC voltage of 125V and DC voltage of 28V.
- Panel mount type designed with a phenolic actuator material for durability.
- Actuator length is 17.5 mm, suitable for panel installation applications.
- Operating temperature range from -30°C to 85°C ensures reliable performance in varied environments.
- Epoxy sealed terminals and stainless steel frame enhance robustness and longevity.
- Complies with RoHS standards ensuring environmental safety.
Product Description
TE Connectivity 1-1825139-9 Panel Mount Toggle Switch is engineered for reliable electrical and industrial automation applications requiring precise switch control. This DPDT (Double Pole Double Throw) switch features an On-Off-On operation allowing selection between multiple circuit states in compact panel installations. The solder terminals provide secure and stable connections suitable for high-quality product assemblies.
Rated for a maximum current of 5A, it supports AC voltage of 125V and DC voltage of 28V, ensuring compatibility with a variety of industrial and electrical systems. The phenolic actuator material combined with a stainless steel frame and brass tin-plated solder support offers robust mechanical strength and corrosion resistance, essential for demanding operating environments.
Designed with epoxy sealed terminals to protect against dirt and moisture ingress, this toggle switch maintains operational integrity under varying conditions. Its operating temperature range from -30°C to 85°C covers typical industrial ambient temperatures, making it ideal for control panels and instrumentation.
The actuator length of 17.5 mm facilitates easy manual operation and installation on standard panels. This product complies with RoHS directives, supporting eco-friendly manufacturing practices.
Ideal for electrical, industrial automation, manufacturing, and commercial equipment applications, this toggle switch ensures durable and reliable switching performance. Package contents include one unit of the TE Connectivity Panel Mount Toggle Switch model 1-1825139-9.
DPDT contact configuration allows double pole switching. On-Off-On operation supports multiple circuit states. Solder terminal type ensures secure electrical connection. Robust phenolic actuator and stainless steel frame construction.
Operating voltage up to 125V AC and 28V DC. Temperature range accommodates harsh industrial environments. Epoxy sealed terminals resist environmental contaminants. Compliant with RoHS environmental standards. Browse similar Toggle Switches and electrical components in the Electronics & Electricals category at EnvMart for enhanced industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a DPDT (Double Pole Double Throw) contact configuration, allowing for multiple circuit states in panel installations.
This model supports a maximum AC voltage of 125V and a DC voltage of 28V.
The toggle switch is rated for a maximum current of 5A.
The actuator is made from phenolic material, while the frame is constructed from stainless steel, providing mechanical strength and corrosion resistance.
The actuator length is 17.5 mm, facilitating easy manual operation and installation.
It operates effectively within a temperature range of -30°C to 85°C, suitable for various industrial environments.
The terminals are epoxy sealed to protect against dirt and moisture ingress, maintaining operational integrity under varying conditions.
This model complies with RoHS standards, ensuring it meets environmental safety requirements.
It features solder terminals, which provide secure and stable connections for high-quality product assemblies.
It is suitable for electrical, industrial automation, manufacturing, and commercial equipment applications.
The country of origin for this switch is India.
The switch operates in an On-Off-On configuration, allowing for selection between multiple circuit states.
