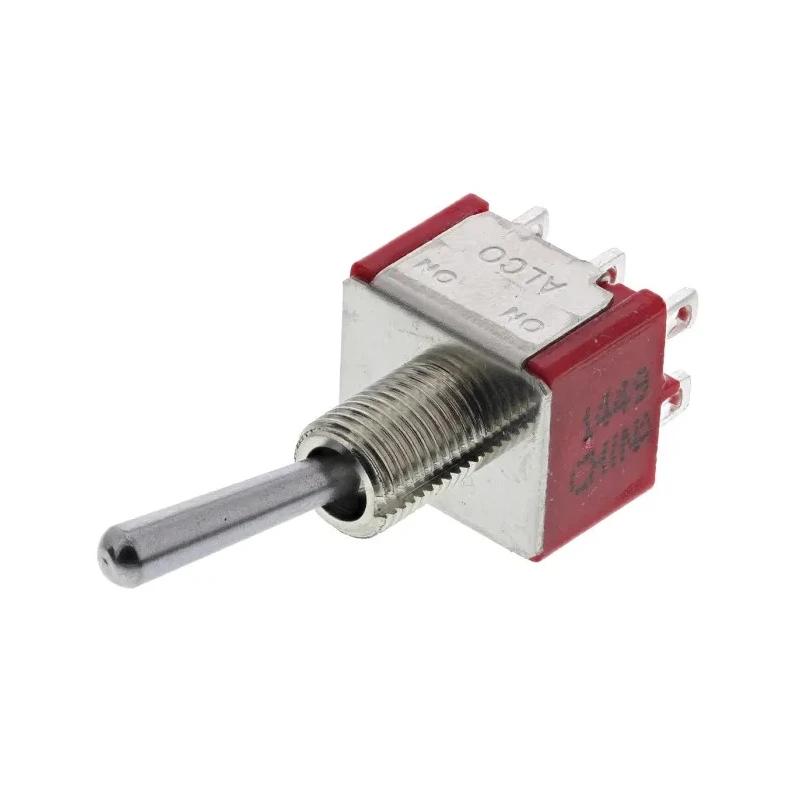

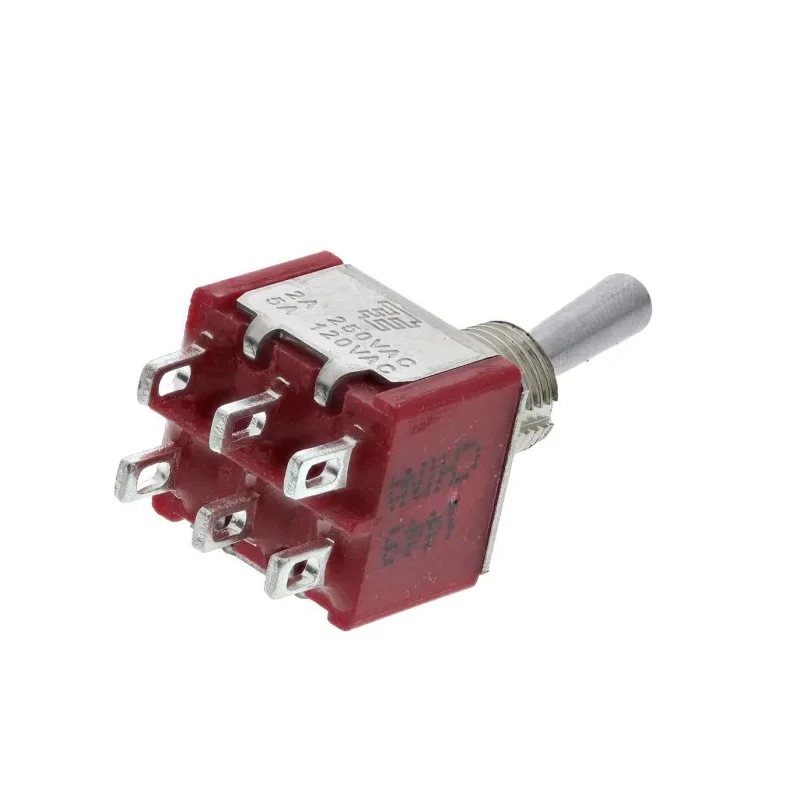

TE Connectivity Gemini A Series Panel Mount Toggle Switch, PCB Mount, On-On Double Pole Double Throw (DPDT), 5A 2-1825138-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| Width | 0.45in |
| Mount Type | PCB |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-9911Brand: TE ConnectivityManufacturers Part No.: 2-1825138-0 |
| Switch Operation | On-On |
| Actuator Length | 12.19mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 125V ac |
| Actuator Material | Phenolic |
Key Features
- This toggle switch features a through hole terminal design for secure PCB mounting.
- The switch operates with a 5A contact current, supporting up to 28 V dc and 125 V ac voltage ratings.
- It has a durable phenolic actuator material ensuring longevity and reliability.
- The Gemini A series switch supports operating temperatures ranging from -30°C to 85°C.
- It complies with RoHS standards ensuring environmental safety.
- Compact dimensions include a panel cutout size of 6.35 mm and actuator length of 12.19 mm.
- The switch configuration is On-On-(On) allowing for versatile circuit control.
- It features an epoxy sealed terminal and stainless steel frame with brass tin plated solder support for enhanced durability.
Product Description
TE Connectivity 2-1825138-0 Gemini A Series toggle switch is a high-quality panel mount switch designed for PCB mounting in industrial and electrical automation systems. It features a double pole double throw (DPDT) On-On switch operation, suitable for controlling multiple circuit pathways reliably.
The switch supports a nominal contact current of 5A, and is rated for 28 V dc and 125 V ac, making it ideal for low voltage control panels and electronic equipment.
Constructed with a phenolic actuator material, this toggle switch offers durable performance over a wide operating temperature range of -30°C to 85°C. The epoxy sealed terminals and stainless steel frame with brass tin plated solder support enhance reliability and protect against environmental and mechanical stress.
With an actuator length of 12.19 mm and panel cutout size of 6.35 mm, it fits standard mounting configurations. The On-On-(On) switch configuration allows for flexible electrical circuit arrangements in industrial, laboratory, and automation environments.
This toggle switch features a through hole terminal design for secure PCB mounting. The switch supports 5A contact current with 28 V dc and 125 V ac ratings. Phenolic actuator material ensures long-lasting operation. Operating temperature ranges from -30°C to 85°C.
Compliant with RoHS standards for environmental safety. Compact form factor with a 6.35 mm panel cutout size. Epoxy sealed terminals for enhanced protection. Stainless steel frame with brass tin plated solder support for durability.
This product is widely used in industrial automation, electrical panels, and electronic device manufacturing. It offers reliable switching for circuits in control systems requiring DPDT functionality. TE Connectivity's Gemini A series guarantees quality and industry compliance.
Explore more Toggle Switch options and related electrical components in EnvMart's extensive catalog for professional industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This toggle switch supports a contact current of 5A.
It is rated for 28 V dc and 125 V ac voltage applications.
The operating temperature range is from -30°C to 85°C.
This model is designed for PCB mounting with a through hole terminal design.
The required panel cutout size for this switch is 6.35 mm.
The actuator length is 12.19 mm.
It features a double pole double throw (DPDT) contact configuration.
The actuator is made from phenolic material, and the terminals are epoxy sealed for enhanced protection.
Yes, it complies with RoHS standards for environmental safety.
This switch is suitable for industrial automation, electrical panels, and electronic device manufacturing.
The frame is made of stainless steel with brass tin plated solder support.
The switch operation type is On-On-(On), allowing for versatile circuit control.
