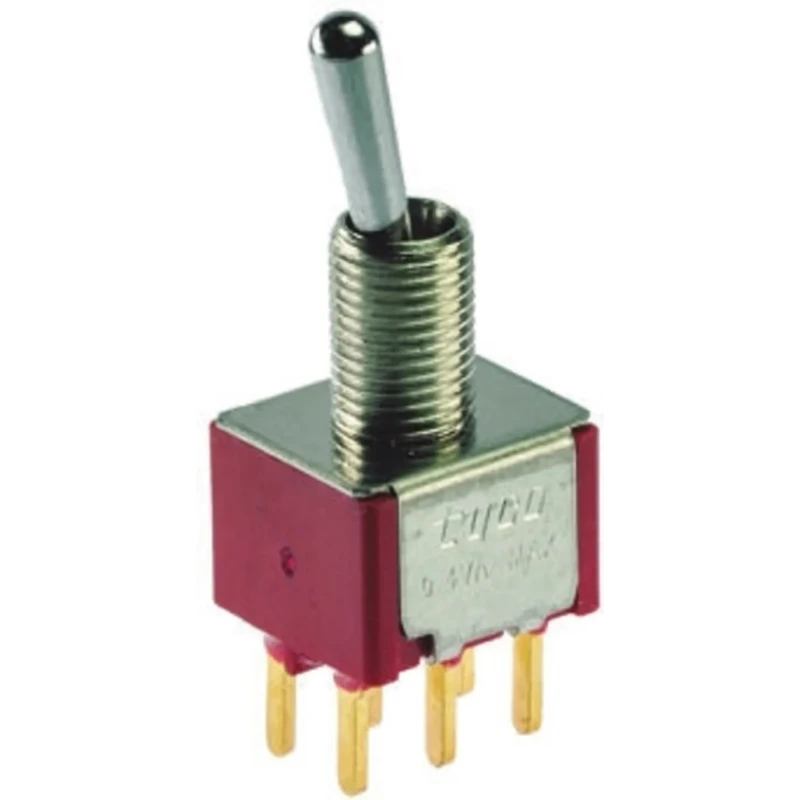

TE Connectivity Gemini A Series Toggle Switch, PCB Mount, On-Off-On DPDT, 5A, Through Hole Terminal, 28 V dc, 115 1825139-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| IP Rating | IP67 |
| Width | 0.45in |
| Mount Type | PCB |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-9858Brand: TE ConnectivityManufacturers Part No.: 1825139-9 |
| Switch Operation | On-Off-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- This toggle switch supports a contact current rating of 5A suitable for moderate loads.
- Mount type is PCB with through hole terminals ensuring stable soldered connections.
- It features an IP67 rating providing excellent protection against dust and water ingress.
- Made with a phenolic actuator and epoxy sealed terminals for durability and long service life.
- Supports contact voltages of 28 V dc and 115 V ac making it compatible with various circuits.
- Operating temperature range spans -30°C to 85°C suitable for diverse environments.
- Compact actuator length of 10.41 mm and panel cutout size of 6.35 mm ensure easy integration.
- The stainless steel frame with brass tin plated solder support enhances mechanical strength.
Product Description
TE Connectivity 1825139-9 Gemini A Series Toggle Switch is a high-quality on-off-on DPDT switch engineered for PCB mount installations. It operates reliably with a 5A contact current rating and is equipped with through hole terminals that ensure robust solder connections. The switch meets IP67 ingress protection standards, making it suitable for applications exposed to dust and water.
Constructed with a phenolic actuator and epoxy sealed terminals, this toggle switch provides long-lasting durability. It supports contact voltages of 28 V dc and 115 V ac, suitable for a wide range of electrical and industrial applications. The operating temperature range from -30°C to 85°C allows use in varied environmental conditions.
The switch’s dimensions include an actuator length of 10.41 mm and a panel cutout size of 6.35 mm, enabling easy mounting and integration into device panels. Featuring a stainless steel frame with brass tin plated solder support, it assures mechanical strength and stable performance in demanding industrial, automation, and electronics manufacturing environments.
This toggle switch supports a contact current rating of 5A suitable for moderate loads. Mount type is PCB with through hole terminals ensuring stable soldered connections. It features an IP67 rating providing excellent protection against dust and water ingress.
Made with a phenolic actuator and epoxy sealed terminals for durability and long service life. Supports contact voltages of 28 V dc and 115 V ac making it compatible with various circuits. Operating temperature range spans -30°C to 85°C suitable for diverse environments.
Compact actuator length of 10.41 mm and panel cutout size of 6.35 mm ensure easy integration. The stainless steel frame with brass tin plated solder support enhances mechanical strength.
This toggle switch is ideal for use in industrial controls, automation systems, electronic equipment, and PCB mounted devices where reliable switching and environmental protection are essential. Explore more Toggle Switches and related components at EnvMart for your electronics and electrical project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This toggle switch has a contact current rating of 5A, making it suitable for moderate loads.
It features an IP67 rating, providing excellent protection against dust and water ingress.
This switch supports contact voltages of 28 V dc and 115 V ac, making it compatible with various circuits.
The operating temperature range spans from -30°C to 85°C, allowing use in diverse environments.
It is designed for PCB mounting with through hole terminals, ensuring stable soldered connections.
The actuator length is 10.41 mm and the panel cutout size is 6.35 mm, facilitating easy integration.
This toggle switch is configured as On-Off-On with a DPDT (Double Pole Double Throw) contact configuration.
It features a phenolic actuator and epoxy sealed terminals for durability, along with a stainless steel frame and brass tin plated solder support.
This model complies with RoHS standards, ensuring it meets environmental regulations.
It is ideal for use in industrial controls, automation systems, electronic equipment, and PCB mounted devices.
The country of origin for this toggle switch is India.
