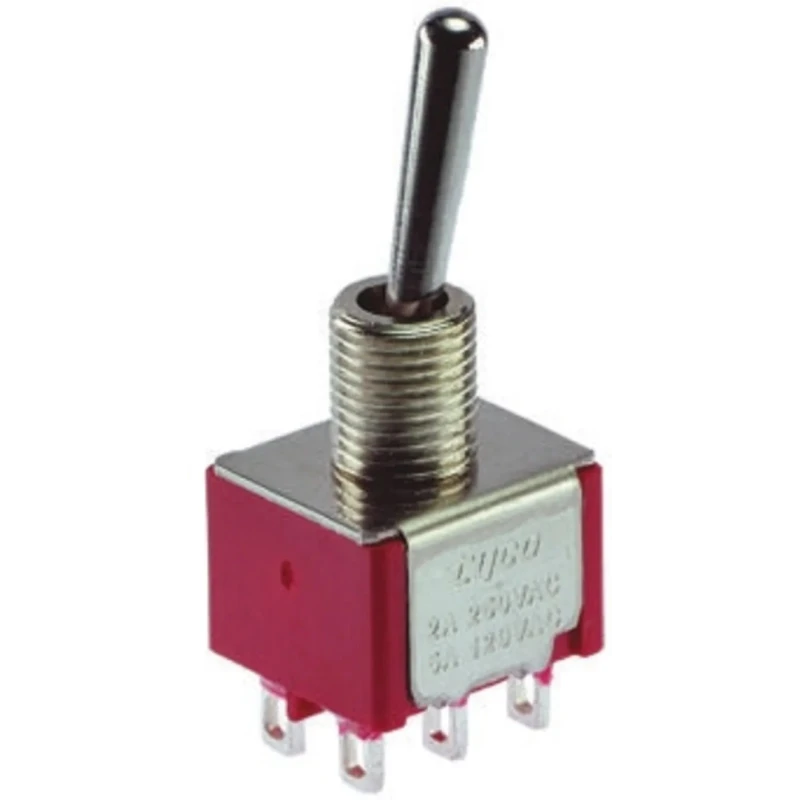

TE Connectivity Toggle Switch, Panel Mount, On-On-On DPDT, 20 V DC, 20 V AC, Solder Terminal, Gemini A Series 3-1825139-8
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| Width | 0.45in |
| Mount Type | Panel |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-9873Brand: TE ConnectivityManufacturers Part No.: 3-1825139-8 |
| Switch Operation | On-On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 20V dc |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 20V ac |
| Actuator Material | Phenolic |
Key Features
- The switch features an On-On-On operation configuration.
- It supports a contact current of 400mA suitable for low power circuits.
- The terminal type is solder, enabling reliable electrical connections.
- Made with a phenolic actuator material for durability in harsh environments.
- The switch supports a panel cutout size of 6.35 mm for installation.
- Operating temperature ranges from -30°C to 85°C for versatile use.
- The compact dimensions measure approximately 0.5in length, 0.45in width, and 0.35in height.
- The stainless steel frame and epoxy sealed terminals provide mechanical strength and protection.
Product Description
TE Connectivity 3-1825139-8 Toggle Switch is a high-quality panel mount switch designed for reliable electrical operations in industrial and electronic applications. It features a Double Pole Double Throw (DPDT) contact configuration with an On-On-On switch operation allowing multiple circuit control options at 20 V DC and 20 V AC voltages.
This toggle switch provides a solder terminal type for secure electrical connections and is designed with a phenolic actuator material that offers mechanical durability and resistance to environmental stresses. The switch fits a 6.35 mm panel cutout size and has compact dimensions of 0.5 inches in length, 0.45 inches in width, and 0.35 inches in height, making it suitable for space-constrained panel installations.
The operating temperature range from -30°C to 85°C allows it to function reliably in a variety of industrial conditions. The stainless steel frame with brass tin-plated solder support and epoxy sealed terminals enhances the robustness and longevity of the device. This product is part of the Gemini A series and is RoHS compliant, ensuring it meets environmental safety standards.
Typical applications include industrial automation systems, electrical panels, and control devices where precise switching is required. The toggle switch is ideal for use in electrical, automation, manufacturing, and commercial equipment requiring durable and reliable switch components.
The switch features an On-On-On operation configuration. Supports 400mA contact current suitable for low power circuits. Uses solder type terminals for strong electrical connectivity. Phenolic actuator material for enhanced durability.
Fits 6.35 mm panel cutout size for installation. Wide operating temperature range of -30°C to 85°C. Compact size with 0.5in length, 0.45in width, 0.35in height dimensions. Stainless steel frame and epoxy sealed terminals for mechanical strength.
Complies with RoHS environmental standards. Explore more Toggle Switches and electrical components in the Electronics & Electricals category at EnvMart to find compatible products for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for multiple circuit control options.
The maximum operating temperature for this toggle switch is 85°C, making it suitable for various industrial conditions.
It requires a panel cutout size of 6.35 mm for proper installation.
This toggle switch uses solder type terminals, which provide secure electrical connections.
The contact current rating for this switch is 400mA, making it suitable for low power circuits.
The actuator is made from phenolic material, which enhances its durability in harsh environments.
This unit has compact dimensions of approximately 0.5 inches in length, 0.45 inches in width, and 0.35 inches in height.
Yes, this toggle switch complies with RoHS environmental standards, ensuring it meets safety requirements.
The operating temperature range for this switch is from -30°C to 85°C, allowing for versatile use in different environments.
The switch features an On-On-On operation configuration, allowing for multiple positions.
This model is part of the Gemini A series, which is designed for reliable electrical operations.
Typical applications include industrial automation systems, electrical panels, and control devices where precise switching is required.
