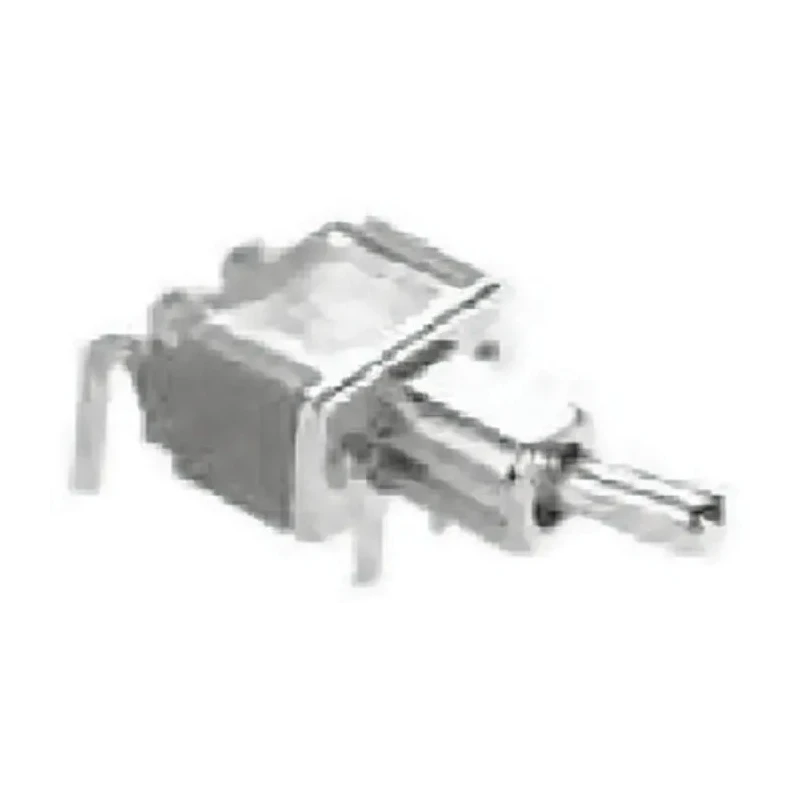

TE Connectivity Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 28 V dc 115 V ac 1-1825136-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-9707PBrand: TE ConnectivityManufacturers Part No.: 1-1825136-3 |
| Switch Operation | On-On |
| Actuator Length | 6.86mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- Single Pole Double Throw (SPDT) contact configuration ensures versatile circuit control.
- On-On switch operation suitable for alternate between two circuits.
- Designed for PCB mounting with through hole terminal type for secure installation.
- Rated for 28 V dc and 115 V ac contact voltages for wide application compatibility.
- Durable actuator made of phenolic material with length of 6.86 mm for precise operation.
- Epoxy sealed terminals and stainless steel frame with brass tin plated solder support resist corrosion.
- IP67 rated providing dust-tight and waterproof performance suitable for harsh industrial environments.
- Operating temperature range from -30°C to 85°C to withstand diverse conditions.
Product Description
TE Connectivity model 1-1825136-3 is a high-quality toggle switch designed for PCB mounting applications, featuring an On-On SPDT contact configuration. It supports a contact current of 5A and is suitable for both DC and AC voltages, 28 V dc and 115 V ac respectively, making it ideal for various industrial and electrical automation tasks.
The switch has a phenolic actuator measuring 6.86 mm in length, providing durability and reliable tactile operation. Constructed with epoxy sealed terminals and a stainless steel frame complemented by brass tin plated solder support, this toggle switch offers excellent mechanical strength and resistance to environmental factors.
With an IP67 rating, the device is dust-tight and protected against immersion in water, making it suitable for challenging conditions in industrial automation, manufacturing, and control gear environments. It operates effectively within a temperature range of -30°C to 85°C.
This toggle switch is RoHS compliant, ensuring it meets strict environmental and safety standards. It is a non-illuminated type, optimized for seamless integration into electrical circuits requiring reliable switching.
Single Pole Double Throw (SPDT) for versatile switching. On-On operation for two-position circuit control. PCB mount with through hole terminals for firm installation. 5A current rated for moderate load applications. Epoxy sealed terminals and stainless steel construction for durability.
IP67 protection suitable for industrial and rugged environments. Operates from -30°C to 85°C for wide temperature resilience. Phenolic actuator ensures reliable switching motion. RoHS compliant ensuring adherence to environmental norms.
Non-illuminated design for compactness and simplicity.
This product is ideal for use in electrical automation systems, industrial machinery controls, and any application requiring robust, dependable toggle switching. Browse more Toggle Switches from TE Connectivity on EnvMart for comprehensive electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile circuit control.
It is rated for 28 V DC and 115 V AC, making it suitable for a variety of applications.
The maximum operating temperature for this toggle switch is 85°C.
This toggle switch has an IP67 rating, indicating it is dust-tight and protected against immersion in water.
It is designed for PCB mounting with through hole terminals for secure installation.
The actuator is made of phenolic material and has a length of 6.86 mm.
This model is rated for a contact current of 5A.
It operates effectively within a temperature range of -30°C to 85°C.
Yes, this product is RoHS compliant, ensuring it meets environmental and safety standards.
The switch operation type is On-On, allowing it to alternate between two circuits.
It features epoxy sealed terminals and a stainless steel frame, providing resistance to corrosion and environmental factors.
It is ideal for use in electrical automation systems, industrial machinery controls, and any application requiring robust switching.
