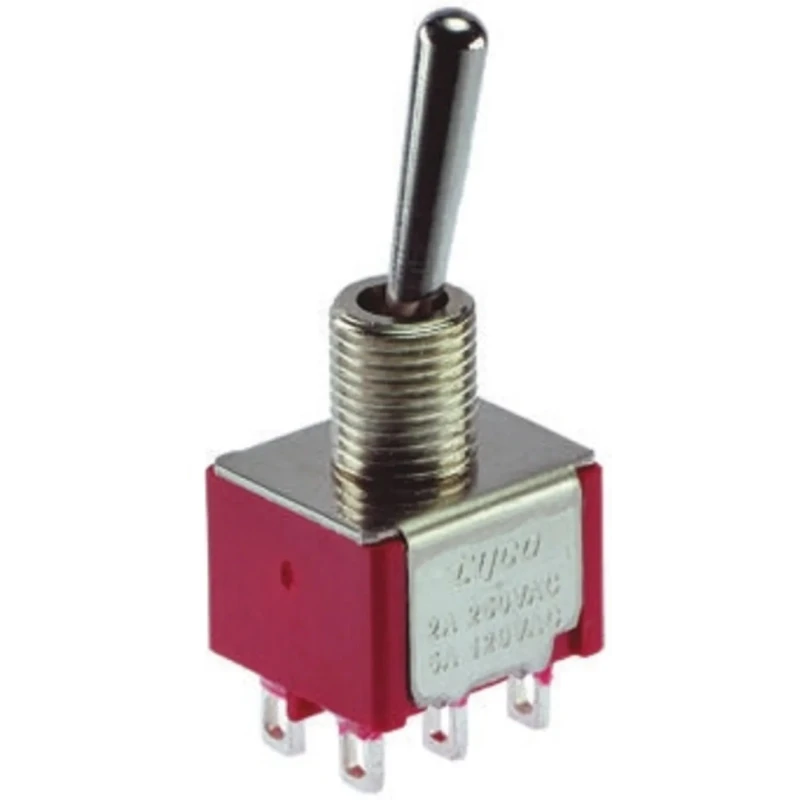

TE Connectivity Toggle Switch Panel Mount DPDT On-On Switch 28 V dc 125 V ac 3-1825138-8
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| Width | 0.45in |
| Mount Type | Panel |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-9785Brand: TE ConnectivityManufacturers Part No.: 3-1825138-8 |
| Switch Operation | On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 125V ac |
| Actuator Material | Phenolic |
Key Features
- Double Pole Double Throw (DPDT) switch operation with On-On switching.
- Panel mount type with a precise 6.35 mm panel cutout size.
- Solder terminal type for secure electrical connections.
- Operating temperature range from -30°C to 85°C, suitable for varied environments.
- Compact actuator length of 10.41 mm made from durable phenolic material.
- Electrical ratings support 5A contact current at 28 V dc and 125 V ac.
- Stainless steel frame with brass tin plated solder support for mechanical robustness.
- Part of the Gemini A series with epoxy sealed terminals to improve reliability.
Product Description
TE Connectivity 3-1825138-8 Toggle Switch is a high-quality panel mount switch designed for electrical and automation applications requiring reliable control. Featuring a Double Pole Double Throw (DPDT) On-On configuration, this switch enables switching between two circuits for versatile operation.
The switch supports a contact current of 5 Amperes and operates safely at 28 V dc and 125 V ac voltages, making it suitable for a wide range of industrial and commercial equipment.
The compact design includes a 6.35 mm panel cutout size for easy mounting and a phenolic actuator with a length of 10.41 mm that provides comfortable manual operation. It features epoxy sealed terminals and a corrosion-resistant stainless steel frame with brass tin plated solder terminals to ensure durability and long-lasting performance in demanding environments.
Rated for operation from -30°C to 85°C, this toggler is suited for industrial, laboratory, manufacturing, and electrical automation systems where dependable switching is essential.
DPDT On-On switch action for versatile circuit control. Panel mount installation with a 6.35 mm cutout. Robust solder terminal connections. Wide temperature range for broad application suitability. Durable phenolic actuator construction.
Reliable 5A current rating at 28 V dc / 125 V ac. Stainless steel frame with tin plated brass solder supports. Gemini A series quality with epoxy sealed terminals.
This toggle switch is ideal for usage in industrial automation, electrical control panels, manufacturing equipment, and other commercial electronic systems requiring precise and robust switching components.
Explore more Toggle Switches from TE Connectivity and other brands in the Electronics & Electricals category on EnvMart to find components best suited to your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a contact current of 5 Amperes at 28 V dc and 125 V ac.
The required panel cutout size for this toggle switch is 6.35 mm.
It operates within a temperature range of -30°C to 85°C, making it suitable for various environments.
This unit features solder terminals for secure electrical connections.
The actuator length is 10.41 mm, made from phenolic material.
It has a Double Pole Double Throw (DPDT) configuration with On-On switching action.
The switch features a stainless steel frame with brass tin plated solder supports and a phenolic actuator.
This model is part of the Gemini A series, known for its reliability and quality.
It complies with RoHS standards, ensuring it meets environmental regulations.
This switch is suitable for industrial automation, electrical control panels, and manufacturing equipment.
The dimensions of this unit are 0.5 inches in length, 0.45 inches in width, and 0.35 inches in height.
It is designed for panel mount installation, ensuring easy integration into various setups.
