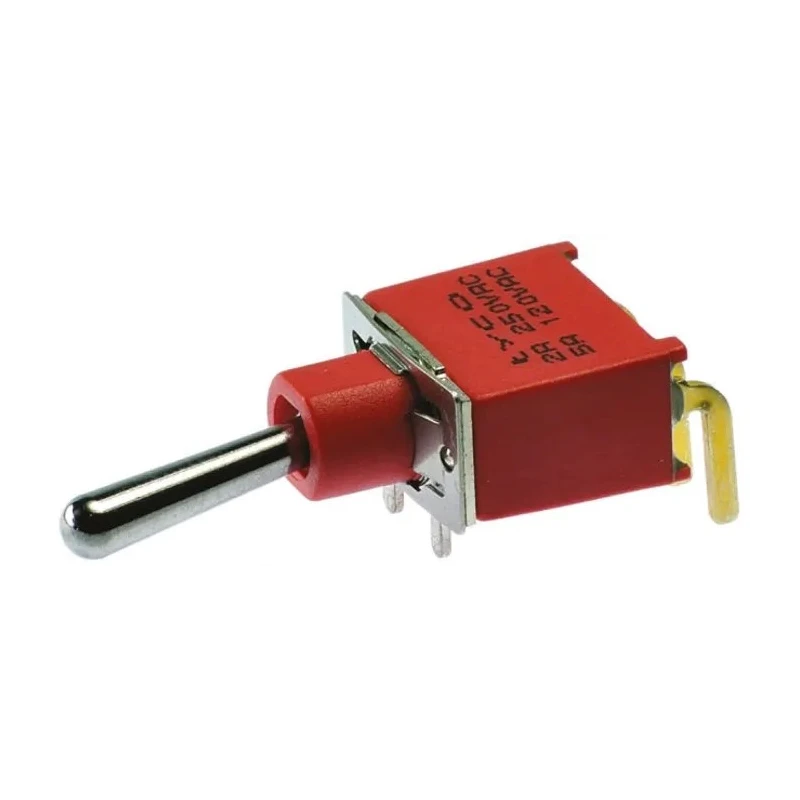

TE Connectivity Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 28 V dc 115 V ac 1-1825142-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 0.50in |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-9501PBrand: TE ConnectivityManufacturers Part No.: 1-1825142-5 |
| Switch Operation | On-On |
| Actuator Length | 12.7mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 400mA |
| Mechanical Life | 6000Cycles |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- The switch features a through hole terminal mount type for secure PCB installation.
- It has an IP67 rating, ensuring protection against dust and water ingress.
- The actuator length is precisely 12.7mm and made of phenolic material for durability.
- This switch supports a maximum switch contact current of 400mA.
- It operates reliably within a temperature range of -30°C to 85°C.
- Mechanical life expectancy of the switch reaches up to 6000 cycles.
- The switch has a length of 0.50 inches, suitable for compact PCB applications.
- It complies with RoHS standards ensuring reduced hazardous substances in manufacture.
Product Description
TE Connectivity 1-1825142-5 Toggle Switch is a high-quality SPDT switch designed for PCB mounting with On-On switch operation. It supports a voltage rating of 28 V dc and 115 V ac, making it ideal for diverse electrical and automation applications requiring secure and reliable switching.
The switch utilizes a through hole terminal mount offering a firm connection to printed circuit boards and includes an actuator made of durable phenolic material, measuring 12.7 mm in length for precision control. The product is engineered to meet IP67 standards providing complete dust tight and water ingress protection, suitable for harsh industrial environments.
Designed for longevity, this toggle switch provides a mechanical life of up to 6000 cycles, ensuring dependable operation over extended use. It supports a switch contact current of 400mA, enabling moderate power control in automation and electronic systems.
Operating temperature range between -30°C and 85°C allows this component to function consistently in varying environmental conditions. The switch features a through hole terminal for stable PCB integration. IP67 sealed for protection against dust and water.
Phenolic actuator material ensures durability and reliable operation. Suitable for industrial and automation systems requiring SPDT configuration. Complies with RoHS for environmental safety.
This toggle switch complements diverse electrical and automation applications including control panels, instrumentation, and machinery interface, providing reliable switching solutions. It is available as a component in the Gemini A Series with stainless steel framing for enhanced robustness.
Explore more products in the Toggle Switch category available at EnvMart for your industrial hardware needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of 28 V dc and 115 V ac, making it suitable for various electrical applications.
The maximum switch contact current for this toggle switch is 400mA.
It has a mechanical life expectancy of up to 6000 cycles, ensuring reliable operation over time.
This toggle switch operates reliably within a temperature range of -30°C to 85°C.
It features a through hole terminal mount type for secure PCB installation.
The actuator length is 12.7mm and is made of phenolic material.
This unit has an IP67 rating, providing protection against dust and water ingress.
Yes, it complies with RoHS standards, ensuring reduced hazardous substances in its manufacture.
The contact configuration is SPDT (Single Pole Double Throw), allowing for versatile switching options.
It is suitable for industrial and automation systems requiring SPDT configuration, including control panels and instrumentation.
The switch has a length of 0.50 inches, making it suitable for compact PCB applications.
This model features a through hole terminal type for stable PCB integration.
