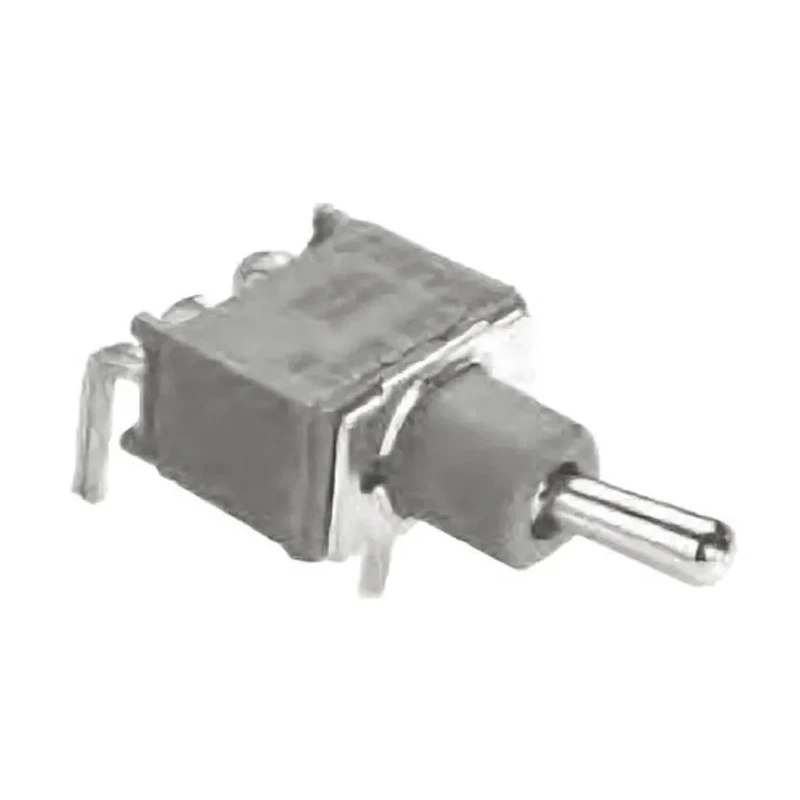

TE Connectivity Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 28 V dc 115 V ac 1825142-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-9488PBrand: TE ConnectivityManufacturers Part No.: 1825142-1 |
| Switch Operation | On-On |
| Actuator Length | 7.62mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- The switch features a single-pole double-throw (SPDT) contact configuration.
- It operates with On-On switch configuration and supports a contact current of 400mA.
- Designed for PCB mounting with through-hole terminal type for reliable connections.
- Rated for contact voltages of 28 V dc and 115 V ac ensuring versatile usage.
- The actuator length is precisely 7.62mm, constructed from durable phenolic material.
- It meets RoHS standards and offers a temperature operating range from -30°C to 85°C.
- The stainless steel frame with brass tin-plated solder support adds to its robustness.
- Epoxy sealed terminals and break-before-make contact timing enhance performance and reliability.
Product Description
TE Connectivity 1825142-1 Toggle Switch PCB Mount On-On SPDT Through Hole Terminal rated at 28 V dc and 115 V ac is engineered for industrial and electrical automation applications requiring reliable switching.
This toggle switch is part of the Gemini A Series, featuring an IP67 sealed design that meets rigorous environmental protection standards against dust and water ingress, ideal for harsh industrial environments.
The switch has a durable stainless steel frame combined with brass tin-plated solder support, providing mechanical strength and excellent electrical contact.
The actuator is made of phenolic material with a length of 7.62mm, designed for efficient and precise manual operation on PCBs. The switch operates with a break-before-make contact timing and supports a 400mA contact current suitable for control circuits.
With a temperature operating range from -30°C to 85°C, it can be employed in varied climates and industrial setups including laboratories, manufacturing lines, and automation control panels.
Single-pole double-throw (SPDT) contact configuration. On-On switch operation ensuring reliable toggle functionality. Allows for through-hole mounting on printed circuit boards enhancing ease of integration. Robust IP67 rating ensures protection in dust and moisture-prone environments.
Durable phenolic actuator and epoxy sealed terminals for extended switch life. Stainless steel frame construction with brass tin-plated contacts for optimal conductivity. Certified RoHS compliant for environmental safety.
Suitable for electrical, industrial automation, and laboratory equipment applications.
This product is part of the Electronics & Electricals category specialized in Switches & Sockets, specifically designed for Toggle Switch requirements. EnvMart offers comprehensive options to explore similar electrical switching solutions for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a single-pole double-throw (SPDT) contact configuration, allowing it to toggle between two positions.
It is rated for contact voltages of 28 V dc and 115 V ac, making it versatile for various applications.
This model supports a contact current of up to 400mA, suitable for control circuits.
The switch has an IP67 rating, providing protection against dust and water ingress, making it suitable for harsh environments.
It operates within a temperature range of -30°C to 85°C, allowing it to function in various climates and industrial settings.
This toggle switch is designed for PCB mounting with a through-hole terminal type for reliable connections.
The actuator is constructed from phenolic material, which is known for its durability in various applications.
The actuator length is precisely 7.62mm, designed for efficient manual operation.
Yes, it is certified RoHS compliant, ensuring it meets environmental safety standards.
This model operates with an On-On switch configuration, allowing for reliable toggle functionality.
The switch features a durable stainless steel frame combined with brass tin-plated solder support for optimal conductivity.
It is suitable for electrical, industrial automation, and laboratory equipment applications, providing reliable switching in these environments.
