Molex Insertion & Extraction Tool Handtool Series Extraction & Insertion Tool Contact Size 22-30 AWG 63812-0000

Molex 63812-0000 Insertion & Extraction Tool Handtool Series is a high-quality tool designed for the precise insertion and extraction of KK 2.54 mm (.100 in) centre series contacts with contact size of 22-30 AWG. Manufactured in the United States, this combination handtool allows secure installation and removal of metal contacts from connector housings without damage, ensuring reliable electrical connections.

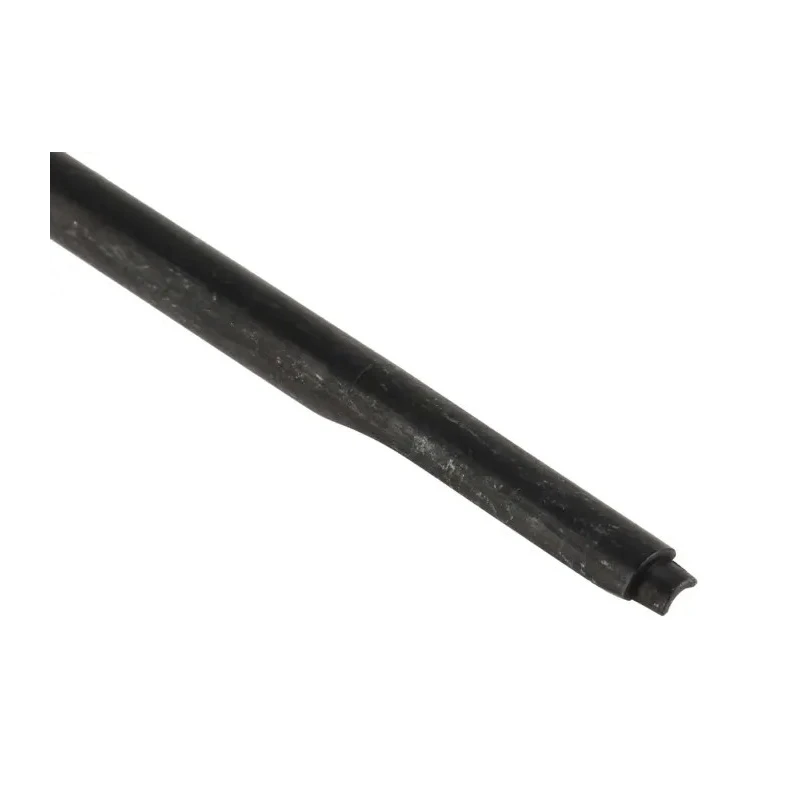

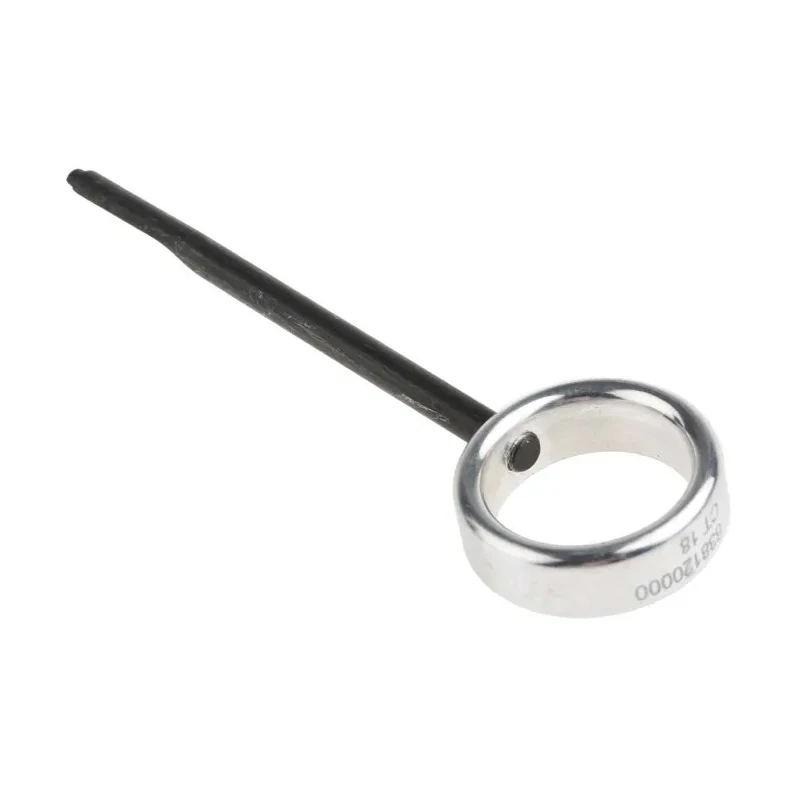

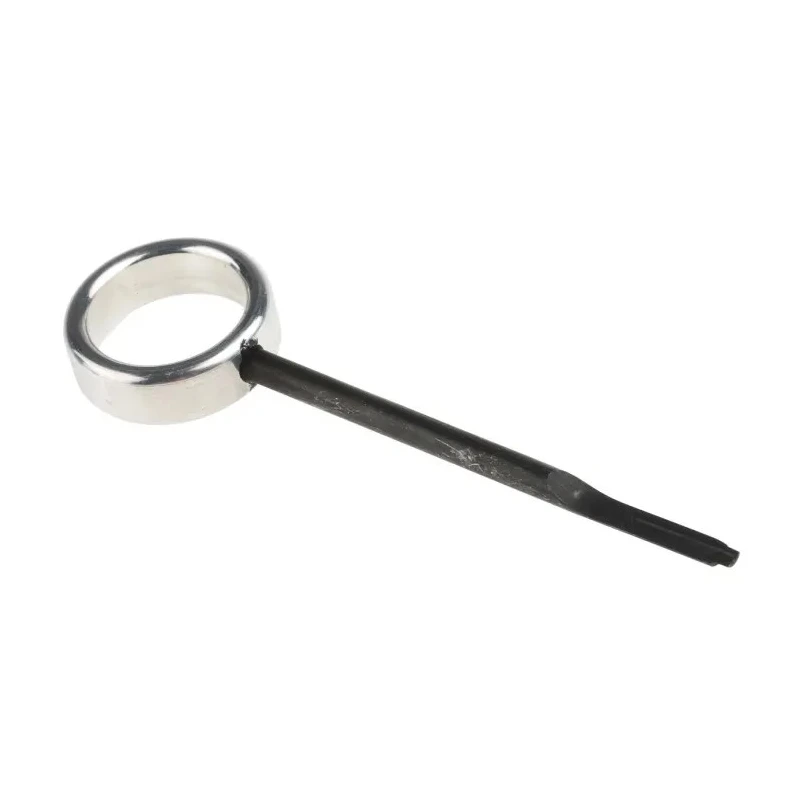

The tool features a durable metal construction resistant to corrosion and designed for long-term use in industrial and manufacturing environments. Its ergonomic ringed design accommodates both right-handed and left-handed operators comfortably, reducing operator fatigue during repetitive use. The flat end ensures proper placement and seating of terminals in the connector housings.

Its simple operating principle helps save time in assembly processes across applications such as computing hardware assembly, radio and television broadcasting equipment maintenance, and automotive machinery wiring.

To use, place the ring finger through the circular opening and insert the wire into the pin groove with the flat side facing up. Push the terminal firmly into the connector housing using thumb pressure combined with the tool, allowing partial or full terminal insertion.

This tool supports all KK series 2.54 mm centre series contacts and housings, providing compatibility with a wide range of Molex products. It is an essential handtool for electrical assembly, repair, and prototyping tasks requiring precise terminal handling.

The tool fits KK 2.54 mm (.100 in) housing contacts. Durable metal construction offers corrosion resistance for long life. Ergonomic ringed design suitable for right and left-handed users. Flat end allows precise positioning of terminals and contacts.

Saves time and reduces operator fatigue during insertion and extraction. Compatible with Molex KK series contacts. Applications include computing, broadcast equipment, and automotive machinery. Supports partial and full insertion of terminals into connector housings.

Perfectly suited for industrial tools and electrical hand tool sets, this Molex insertion and extraction tool improves productivity and reliability in electronic assembly processes. Browse other high-quality hand tools and insertion & extraction tools at EnvMart to complement your workshop tooling needs.
