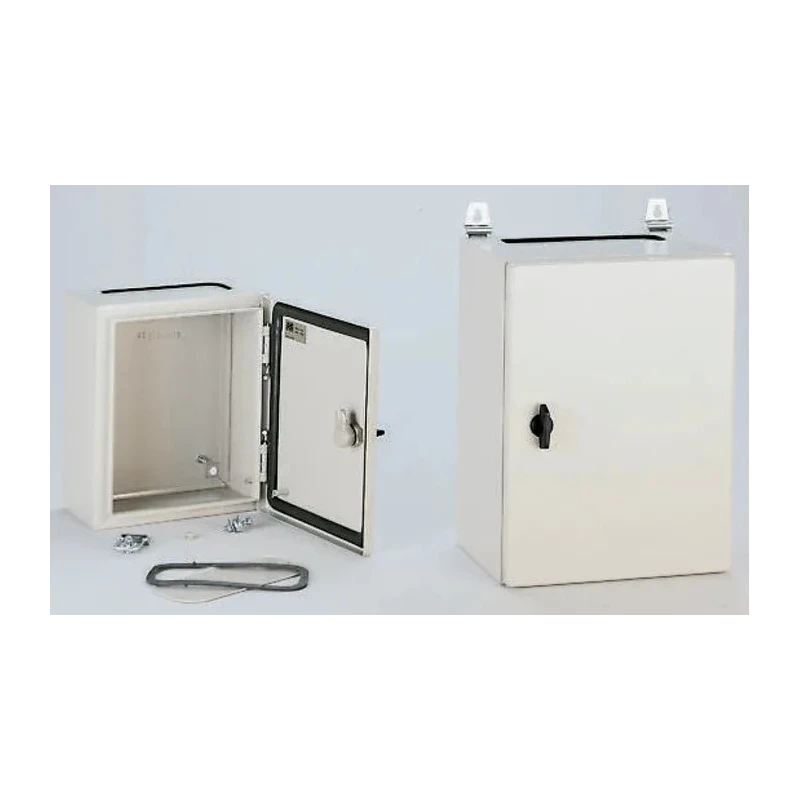

Schneider Electric Spacial CRN Series Steel Wall Box Enclosure IP66, IK10, 600 mm x 600 mm x 200 mm NSYCRN66200

Schneider Electric NSYCRN66200 Spacial CRN Series Steel Wall Box is a robust multi-purpose steel enclosure designed for industrial and commercial electrical equipment housing. This wall mounting enclosure combines high mechanical strength with excellent environmental protection, making it ideal for demanding applications in industrial automation, manufacturing, and electrical control systems.

The enclosure’s body is constructed from high-quality steel finished with an epoxy-polyester powder coat in grey RAL 7035, which provides corrosion resistance and long-term durability. Its dimensions are 600 mm (height) x 600 mm (width) x 200 mm (depth), suitable for a variety of control and automation equipment installations.

Featuring an IP66 ingress protection rating according to IEC 60529, this wall box is dust-tight and protected against powerful water jets, suitable for both indoor and outdoor installations. The IK10 shock resistance rating ensures the enclosure withstands high impacts, providing enhanced protection in harsh environments.

The enclosure door is plain and reversible with a 120° opening angle, equipped with a 3 mm double-bar lock for secure access. The hinges and cable gland plate are removable for ease of installation and maintenance. A standard gland plate is included, offering cable entry solutions. The chassis mounting plate is not included, so mounting arrangements should be planned accordingly.

This Spacial CRN series Wall Box includes one lock, one door, one body, and one cable gland plate per unit. It is designed with a polyurethane seal to guarantee watertightness over long periods, making it highly reliable for industrial automation, control panels, and electrical installations.

The product meets international standards including cULus, UL, IEC 62208, REACH, and RoHS, ensuring compliance with quality and safety regulations. The enclosure is made from steel with epoxy-polyester powder grey finish.

Wall mounting design with plain reversible door opening 120°. IP66 ingress protection and IK10 impact resistance. Includes lock, door, body, and cable gland plate. Designed for industrial automation, manufacturing, and electrical control systems.

Removable hinges and gland plate for easy maintenance. Polyurethane seal guarantees watertightness. Complies with cULus, UL, IEC 62208, REACH, RoHS standards. Dimensions: 600 mm height x 600 mm width x 200 mm depth. Explore more Schneider Electric enclosures and accessories in the Electrical Enclosures category at EnvMart for comprehensive industrial solutions.
