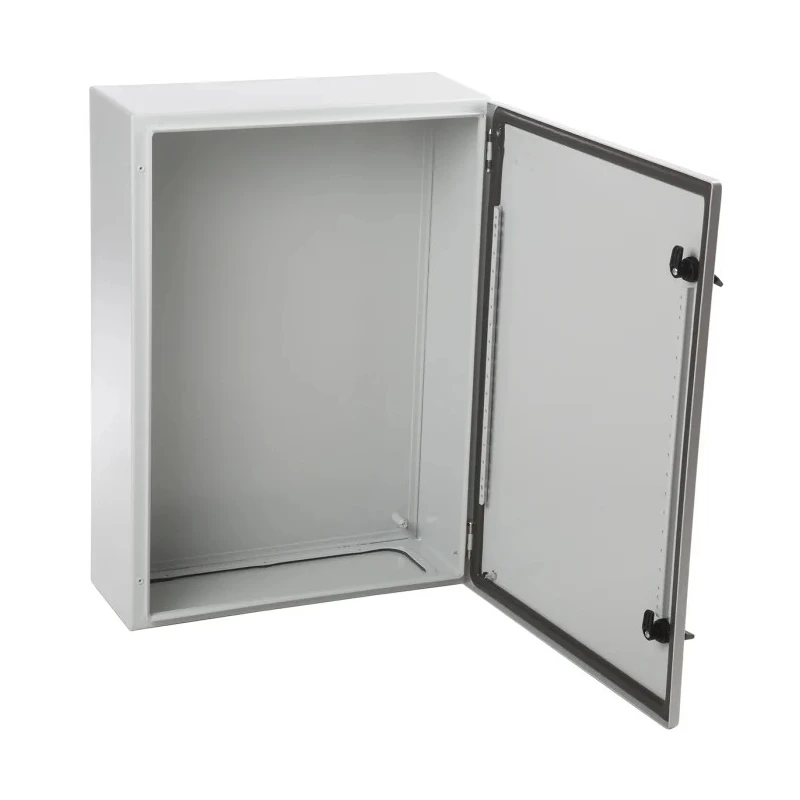

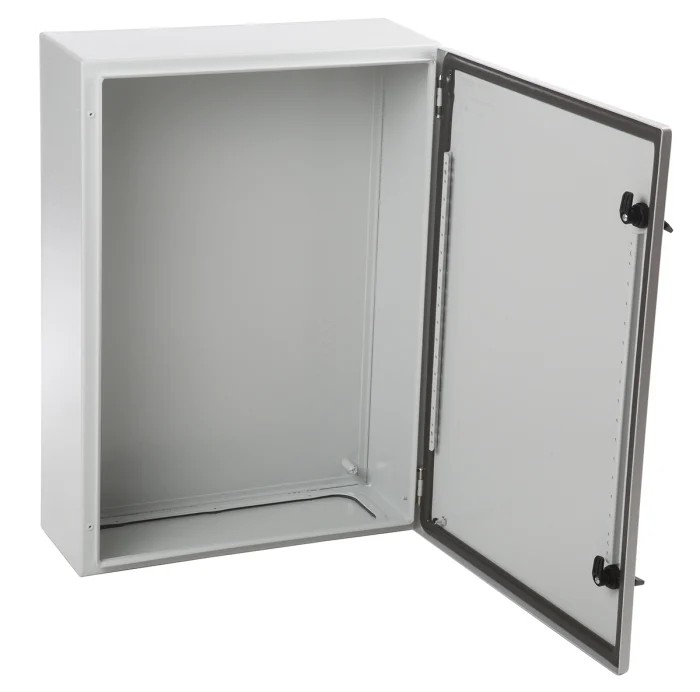

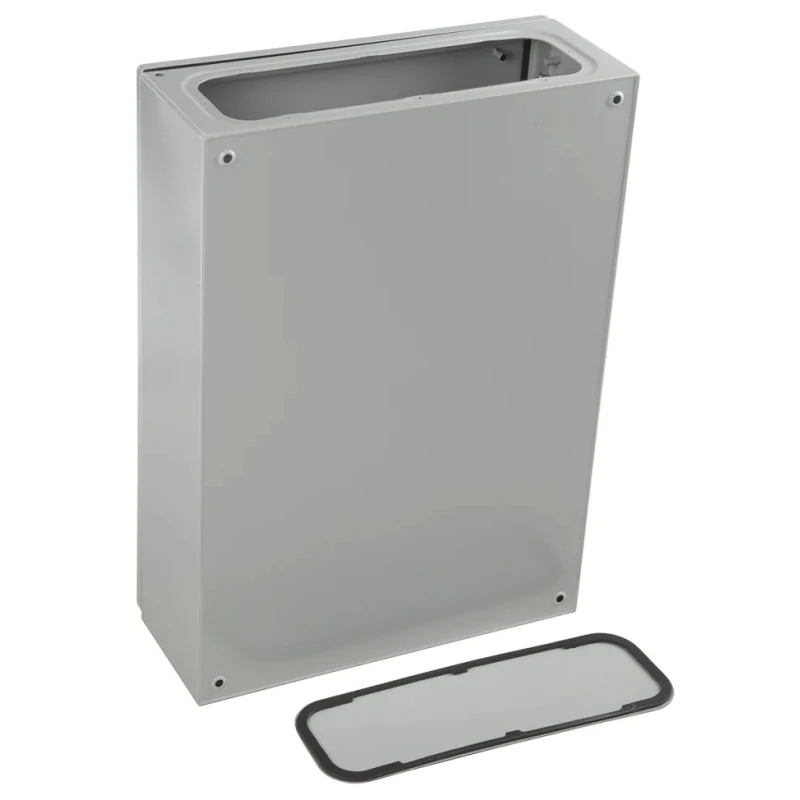

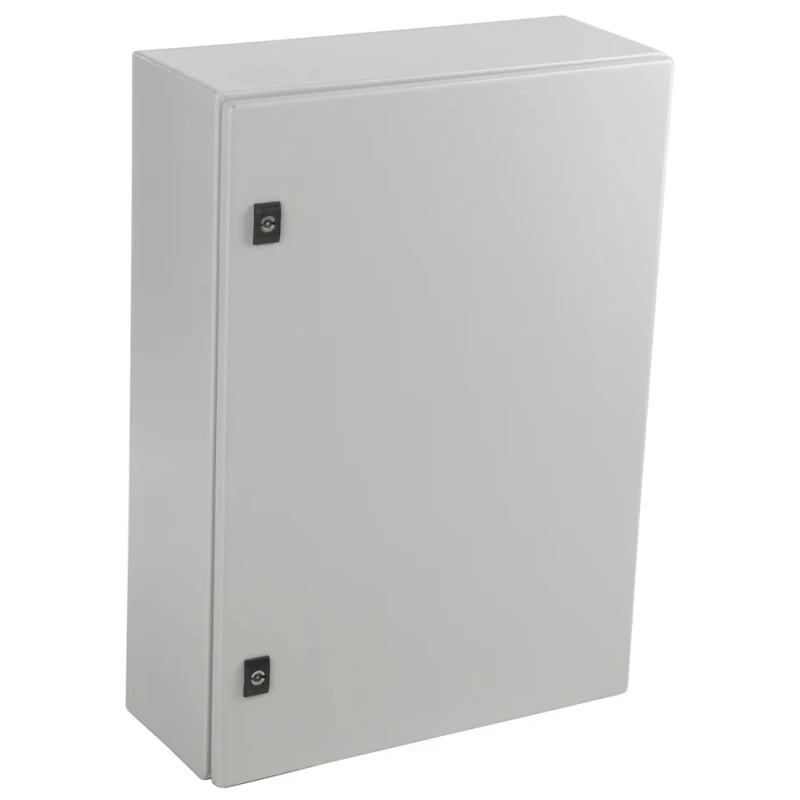

Schneider Electric Spacial CRN Series Steel Wall Box Enclosure, IP66, IK10, 700 mm x 500 mm x 200 mm NSYCRN75200
Specifications
| Country of Origin | India |
|---|---|
| Display | screen |
| Brand | Schneider Electric |
| Colour | Grey |
| Body Material | Steel |
| Model | NSYCRN75200 |
| IP Rating | IP66 |
| Series | Spacial CRN |
| External Width | 500mm |
| External Depth | 200mm |
| External Height | 700mm |
| Standards/Approvals | UL, cULus, RoHS, REACH, IEC 62208 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 775-5823Brand: RS PRO |
| Door Lock Type | Double Bar |
| Better World Claim | Designed for Disassembly |
| Internal Mount Type | Panel |
| IK Rating | IK10 |
Key Features
- The enclosure is constructed from durable steel with an epoxy-polyester powder grey finish ensuring corrosion resistance.
- Features a plain, reversible 120° opening front door secured by a 3 mm double-bar lock for security.
- Incorporates a standard gland plate and removable hinges for flexible cable ingress and door management.
- Complies with UL, cULus, RoHS, REACH, and IEC 62208 standards, guaranteeing quality and environmental compliance.
- Designed with a polyurethane seal for long-lasting water-tightness under harsh conditions.
- Suitable for industrial automation, control panel housing, and electrical distribution use cases.
- Includes lock, door, body, and cable gland plate in the package for ready installation.
Product Description
Schneider Electric NSYCRN75200 Spacial CRN Series Steel Wall Box Enclosure is a compact multi-purpose wall mounting enclosure engineered for demanding industrial and commercial environments. It features robust steel body construction finished with an epoxy-polyester powder coating in grey RAL 7035 for superior corrosion resistance and aesthetic durability.
The enclosure dimensions are 700 mm (height) x 500 mm (width) x 200 mm (depth), providing an optimal balance of size and capacity for electrical panel installations. Its plain front door opens 120° and is reversible, secured by a 3 mm double-bar lock ensuring enhanced security against unauthorized access.
This enclosure is rated IP66 according to IEC 60529, protecting internal components from dust ingress and powerful water jets, and IK10 as per IEC 62262 for mechanical impact resistance. The structure includes a standard gland plate and removable hinges for ease of cabling and door reversal. The polyurethane seal guarantees durable water-tightness even in outdoor or harsh industrial settings. The enclosure does not include a mounting plate but offers welded studs for mounting options.
Compliant with key certifications including UL, cULus, RoHS, REACH, and IEC 62208, this Spacial CRN model supports industrial automation, electrical control, HVAC, and infrastructure applications. Its smart hinge design allows quick door removal and reversal, and the welded studs provide secure earth continuity solutions for electrical safety.
The enclosure is made of steel with epoxy polyester coating and polyurethane seal. Supports wall mounting with welded studs and includes a gland plate for cable ingress. Plain reversible door opens 120°, secured by a 3 mm double-bar lock.
Rated IP66 and IK10 for ingress protection and mechanical impact resistance. Certified to multiple international standards ensuring compliance and durability. Designed for use in industrial automation, electrical control panels, and building electrical applications.
Package includes the body, door, lock, and cable gland plate for installation completeness.
Schneider Electric Spacial CRN enclosures are recognized for durability and versatility across industrial, manufacturing, water treatment, and electrical distribution sectors. Designed for both indoor and outdoor use, they offer protection, security, and environmental sealing for sensitive electrical equipment.
Explore more Schneider Electric electrical enclosures and related products on EnvMart for comprehensive industrial installation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure measures 700 mm in height, 500 mm in width, and 200 mm in depth.
It is rated IP66, which protects against dust ingress and powerful water jets.
The enclosure is constructed from steel with an epoxy-polyester powder coating for corrosion resistance.
It features a plain, reversible front door secured by a 3 mm double-bar lock for enhanced security.
It complies with UL, cULus, RoHS, REACH, and IEC 62208 standards.
The enclosure has an IK10 rating, indicating high mechanical impact resistance.
Yes, it includes the body, door, lock, and cable gland plate for complete installation.
The door opens 120° and is reversible, allowing for flexible installation options.
It is suitable for industrial automation, electrical control panels, HVAC, and infrastructure applications.
It supports wall mounting with welded studs and includes a standard gland plate for cable ingress.
The enclosure is finished in grey, specifically RAL 7035.
The enclosure is manufactured in India.
