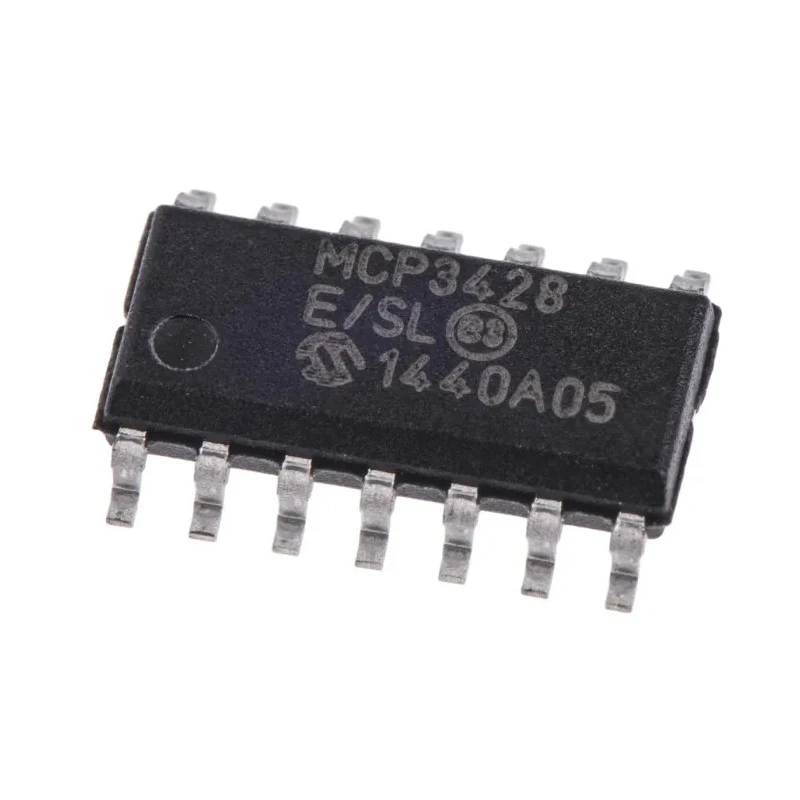

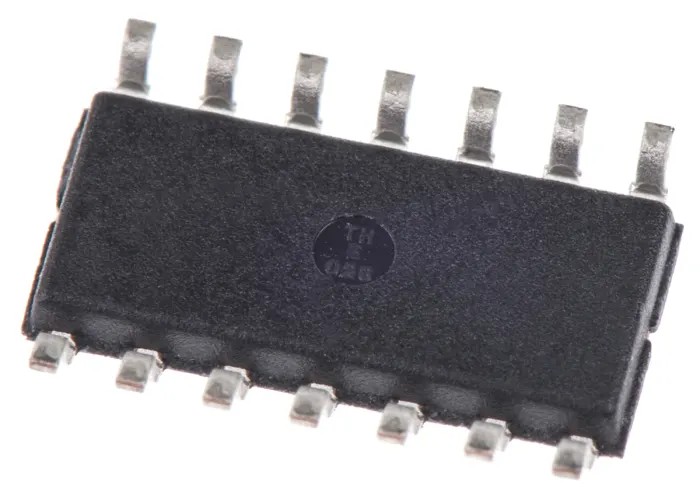

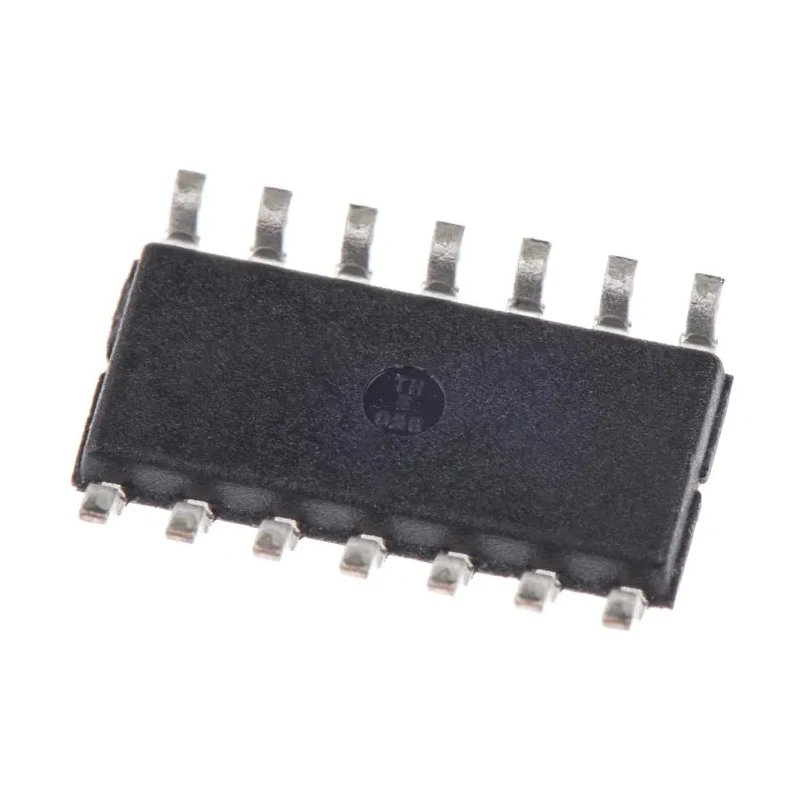

Microchip 4-Channel 16-bit Delta Sigma ADC Serial I2C Interface 0.02 ksps, 14-Pin SOIC MCP3428-E/SL
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 16 bit |
| Brand | Microchip |
| Height | 1.75mm |
| Length | 8.65mm |
| Model | MCP3428-E/SL |
| Mount Type | Surface |
| Sampling rate | 0.02ksps |
| Series | MCP3428 |
| Input Type | Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial-I2C |
| Architecture | Delta Sigma |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 703-7945PBrand: MicrochipManufacturers Part No.: MCP3428-E/SL |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Number of ADCs | 4 |
| Programable Data rate options are | 15 SPS, 60 SPS or 240 SPS |
Key Features
- Offers high resolution of 16 bits for precise digital conversion.
- Delta Sigma architecture ensures low noise and high accuracy.
- Programmable data rate options of 15 SPS, 60 SPS, or 240 SPS for flexible sampling.
- Compact 14-pin SOIC surface mount package ideal for compact PCB designs.
- Operating voltage range from 2.7 V to 5.5 V suitable for various applications.
- Wide operating temperature range from -40°C to 125°C for harsh environments.
- Compatible with Serial I2C interface for easy system integration.
- Automotive standard compliant with AEC-Q100 for reliability.
Product Description
Microchip MCP3428-E/SL is a high-performance 4-channel analogue to digital converter with 16-bit resolution, utilizing Delta Sigma architecture to provide high accuracy and low noise conversion. It operates at a base sampling rate of 0.02 ksps and supports programmable data rates of 15, 60, or 240 samples per second, enabling flexibility across a broad range of precision sensing applications.
Housed in a compact 14-pin SOIC surface mount package, this ADC is optimized for space-constrained electronic circuit designs. The device operates reliably within a voltage range from 2.7 V up to 5.5 V, making it suitable for battery-powered and other low-voltage electronics. It provides a Serial I2C interface supporting simple and efficient communication with microcontrollers and processors in embedded systems.
Designed to meet stringent automotive standards (AEC-Q100), the MCP3428-E/SL ADC is capable of functioning across an extended temperature range from -40°C to 125°C, making it ideal for demanding industrial, automotive, and instrumentation applications.
Key applications include industrial control, data acquisition systems, laboratory instrumentation, and automotive electronics. This converter series enables precise multi-channel measurements for voltage input signals, benefitting a wide array of commercial and industrial electronics systems.
High resolution 16-bit Delta Sigma ADC ensures precise measurement outcomes. Four ADC channels allow simultaneous multi-signal monitoring. Flexible sampling rates with programmable data rate options. Compact 14-pin SOIC package fits densely populated PCBs.
Wide supply voltage range and broad operating temperature for industrial use. Serial I2C interface for easy connectivity with processing units. Certified automotive standard AEC-Q100 compliance guarantees reliability.
The set is ideal for engineers developing complex electronic systems requiring robust, accurate analog-to-digital conversion. It enhances data conversion efficiency and precision in multiple sectors including manufacturing, automotive, and laboratory instrumentation.
For additional technical documentation including schematics, 3D models, and programming guides, design engineers can access resources suitable for seamless integration and development.
Explore more Analogue to Digital Converters at EnvMart to find models tailored to your specific industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model offers a resolution of 16 bits for precise digital conversion.
It supports programmable data rates of 15 SPS, 60 SPS, or 240 SPS, allowing flexibility in sampling.
The input type for this analogue to digital converter is voltage.
It operates within a voltage range of 2.7 V to 5.5 V, suitable for various applications.
The maximum operating temperature for this unit is 125°C.
This model can operate in temperatures as low as -40°C.
It features four ADC channels, allowing for simultaneous multi-signal monitoring.
This ADC is housed in a compact 14-pin SOIC surface mount package.
It uses a Serial I2C interface for easy connectivity with microcontrollers and processors.
Yes, it is compliant with the AEC-Q100 automotive standard for reliability.
This model utilizes Delta Sigma architecture, which ensures low noise and high accuracy.
The dimensions of this model are 8.65 mm in length and 1.75 mm in height.
