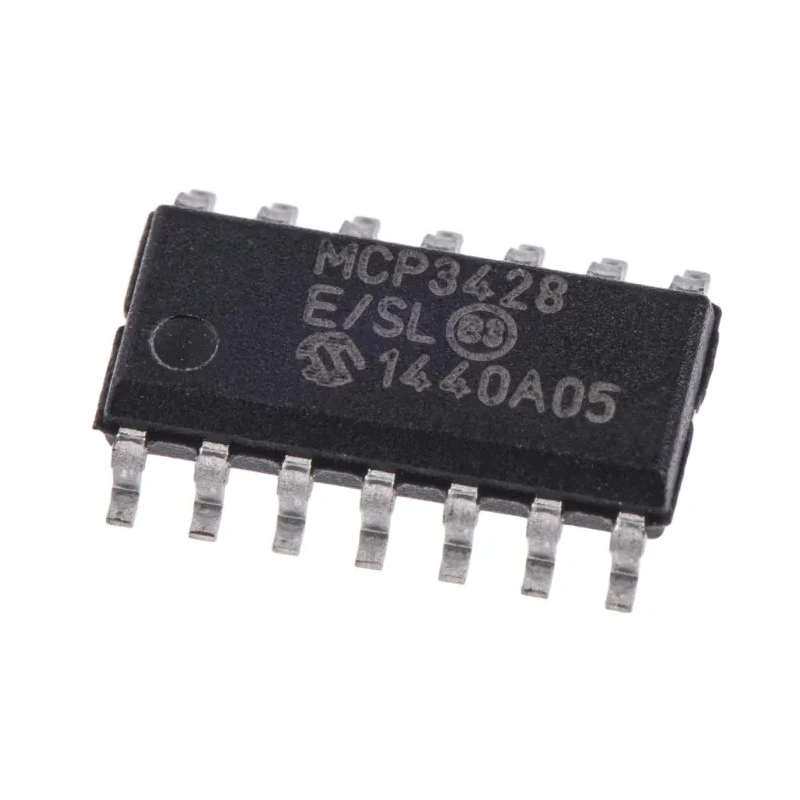

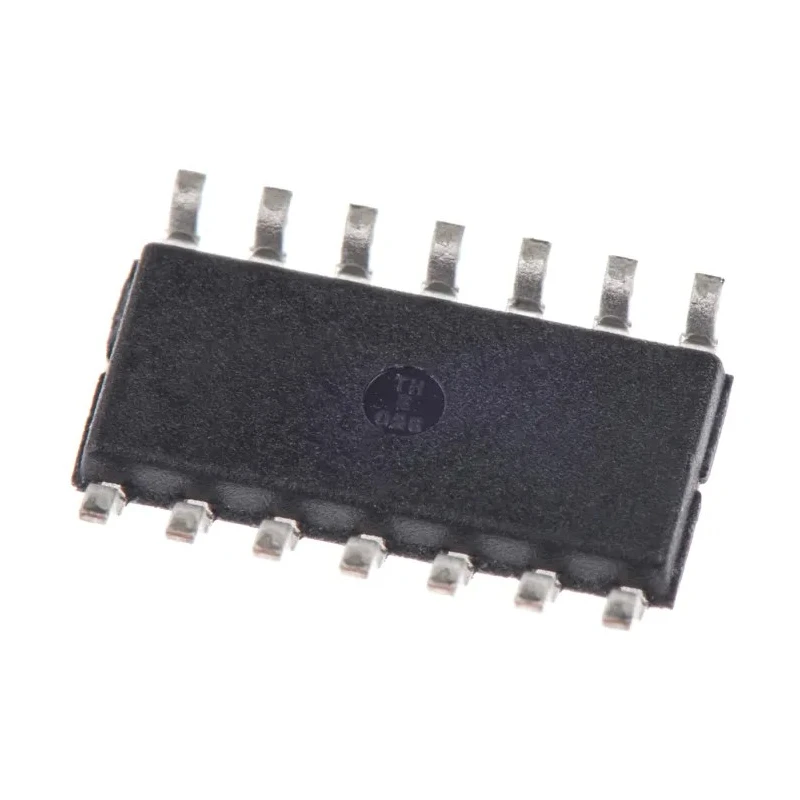

Microchip Delta Sigma 4 Channel 16 bit ADC 0.02 ksps Serial-I2C Interface 14-Pin SOIC MCP3428-E/SL
Specifications
| Country of Origin | Thailand |
|---|---|
| Resolution | 16 bit |
| Brand | Microchip |
| Height | 1.75mm |
| Length | 8.65mm |
| Model | MCP3428-E/SL |
| Mount Type | Surface |
| Sampling rate | 0.02ksps |
| Series | MCP3428 |
| Input Type | Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial-I2C |
| Architecture | Delta Sigma |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 703-7945Brand: MicrochipManufacturers Part No.: MCP3428-E/SL |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Number of ADCs | 4 |
| Programable Data rate options are | 15 SPS, 60 SPS or 240 SPS |
Key Features
- This ADC supports serial I2C interface for easy integration.
- It is packaged in a 14-Pin SOIC surface-mount package.
- Device operates within a supply voltage range of 2.7V to 5.5V.
- The operating temperature range is from -40°C to 125°C ensuring reliability in harsh conditions.
- Programmable data rates options include 15 SPS, 60 SPS, or 240 SPS.
- Complies with Automotive Standard AEC-Q100 for automotive applications.
- Compact device dimensions with height 1.75mm and length 8.65mm.
- Ideal for precise voltage input measurements in industrial and embedded systems.
Product Description
Microchip MCP3428-E/SL is a high-precision Delta Sigma Analogue to Digital Converter designed for industrial and embedded applications requiring multi-channel, high-resolution voltage measurement. With 4 integrated ADC channels and 16-bit resolution, this device allows accurate conversions at a sampling rate of 0.02 ksps.
The ADC is housed in a compact 14-Pin SOIC surface-mount package, facilitating space-saving PCB designs. It operates reliably within a wide temperature range from -40°C to 125°C and supports supply voltages from 2.7V up to 5.5V, making it suitable for a variety of power system environments.
Featuring a serial I2C interface, the device integrates seamlessly into systems requiring multiple sensor inputs or data acquisition with minimal wiring complexity. Programmable data rate options of 15, 60, or 240 SPS provide flexibility to balance conversion speed and noise performance.
This ADC offers 4 independent channels for simultaneous multi-sensor acquisition. Its 16-bit resolution ensures high accuracy for precise voltage measurements. Wide operating temperature and voltage range enables use in automotive and industrial setups.
Compact 14-Pin SOIC packaging supports efficient PCB layout and assembly. Serial I2C interface simplifies connectivity in embedded systems. Compliant with Automotive Standard AEC-Q100 for quality assurance in automotive applications.
Programmable sampling rates allow customization based on application needs. Thailand is the country of origin, reflecting Microchip's global manufacturing standards.
This ADC is highly suitable for industrial automation, instrumentation, automotive data acquisition, and other demanding electronic designs requiring stable, multi-channel analogue-to-digital conversion.
Explore the range of semiconductor solutions to empower your design projects with reliable performance and quality.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a resolution of 16 bits, allowing for high-accuracy voltage measurements.
The MCP3428-E/SL operates within a temperature range of -40°C to 125°C, making it suitable for harsh environments.
It supports a supply voltage range from 2.7V to 5.5V, accommodating various power system environments.
This ADC has 4 independent channels, allowing for simultaneous multi-sensor acquisition.
The device offers programmable data rate options of 15 SPS, 60 SPS, or 240 SPS to balance conversion speed and noise performance.
It utilizes a serial I2C interface for easy integration into embedded systems.
The MCP3428-E/SL is packaged in a 14-Pin SOIC surface-mount package.
Yes, it complies with Automotive Standard AEC-Q100, ensuring quality assurance for automotive applications.
The maximum operating temperature for the MCP3428-E/SL is 125°C.
This model has a height of 1.75mm and a length of 8.65mm, making it compact for PCB designs.
It supports voltage input type for accurate analogue to digital conversion.
The architecture of this ADC is Delta Sigma, which is known for its high precision in measurements.
