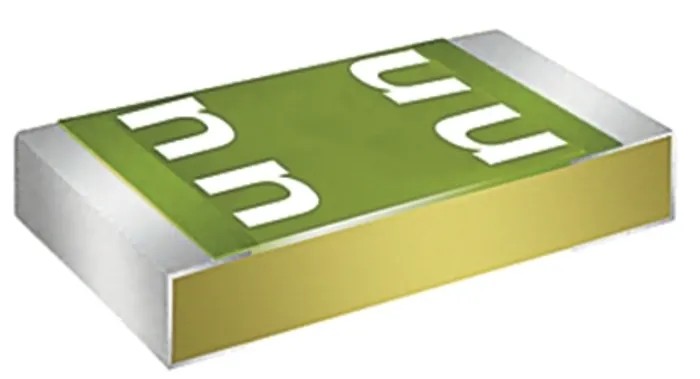

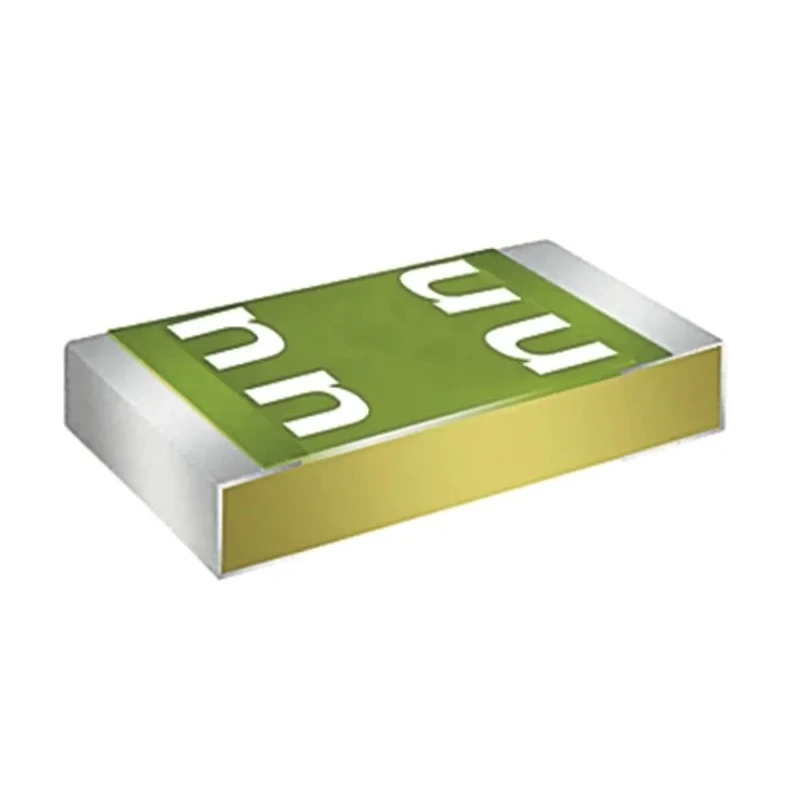

Schurter Non-Resettable Fuse 7A, 63V DC, Time Delay, Epoxy Glass Body 3413.0326.22
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Schurter |
| Body Material | Epoxy Glass |
| Height | 0.6mm |
| Depth | 3.2mm |
| Series | UST 1206 |
| Maximum Operating Temperature | 90°C |
| Resistance | 8.7mΩ |
| Package Type | Reel |
| Minimum Operating Temperature | -55°C |
| Package Size | 1206 |
| Breaking Capacity | 600A |
| Terminal Material | Tin Plated Copper |
| Standards/Approvals | CE, REACH, RoHS, CSA, UL 248-14 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 703-2773PBrand: SchurterManufacturers Part No.: 3413.0326.22 |
| Fuse Characteristics | Time Delay |
Key Features
- Epoxy glass body ensures durable and robust construction.
- Time delay fuse speed provides protection against transient peaks.
- Operating temperature range from -55°C to 90°C for versatile applications.
- Breaking capacity rated at 600A for high fault tolerance.
- Surface mount technology with 1206 package size for compact installation.
- Tin plated copper terminals optimize connectivity and corrosion resistance.
- Compliance with CE, REACH, RoHS, CSA, and UL 248-14 standards.
- Manufactured in Switzerland ensuring high-quality standards.
Product Description
Schurter 3413.0326.22 non-resettable fuse is engineered for dependable secondary protection in both DC and AC circuits, specifically rated for 7A current at 63 volts DC. This fuse features a time delay characteristic, making it suitable for circuits with inrush currents, such as LCD backlight DC-AC inverters.
Constructed with an epoxy glass body, the fuse maintains robust mechanical and thermal reliability. The tin plated copper terminal material ensures excellent conductivity and long-term corrosion resistance.
This 1206 surface mount package integrates seamlessly into compact circuit designs, conserving space while providing efficient protection. Its breaking capacity of 600A highlights its ability to safely interrupt high fault currents.
The fuse operates effectively across a wide temperature range from -55°C minimum to 90°C maximum, enabling performance in varied environmental conditions. Schurter's UST series fuses comply with stringent international standards including CE, REACH, RoHS, CSA, and UL 248-14, reinforcing product safety and environmental compliance.
Epoxy glass body ensures durable and robust construction. Time delay fuse speed provides protection against transient peaks. Wide operating temperature range from -55°C to 90°C. Breaking capacity rated at 600A for fault tolerance.
1206 surface mount package size for compact applications. Tin plated copper terminals optimize connectivity and corrosion resistance. Compliance with multiple international standards for safety. Manufactured in Switzerland for quality assurance.
This non-resettable fuse is ideal for industrial, electronics manufacturing, telecommunications, power supply protection, and HVAC equipment where reliable overcurrent protection is critical. Its surface mount design suits automated assembly processes, improving production efficiency.
Explore the wide range of Schurter fuses at EnvMart for dependable and certified electrical protection solutions.
Explore more products in our Non-Resettable Fuses category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 7A current at 63 volts DC.
It has a breaking capacity rated at 600A, allowing it to safely interrupt high fault currents.
The fuse operates effectively within a temperature range of -55°C to 90°C.
The fuse features an epoxy glass body and tin plated copper terminals for optimal conductivity and corrosion resistance.
It comes in a 1206 surface mount package size, suitable for compact installations.
This model complies with CE, REACH, RoHS, CSA, and UL 248-14 standards, ensuring safety and environmental compliance.
The resistance of this fuse is rated at 8.7mΩ.
It features a time delay characteristic, making it suitable for circuits with inrush currents.
This non-resettable fuse is manufactured in Switzerland, ensuring high-quality standards.
It is ideal for industrial, electronics manufacturing, telecommunications, power supply protection, and HVAC equipment.
The surface mount design allows for automated assembly processes, improving production efficiency in compact circuit designs.
The fuse has a height of 0.6mm and a depth of 3.2mm, making it compact for various applications.
