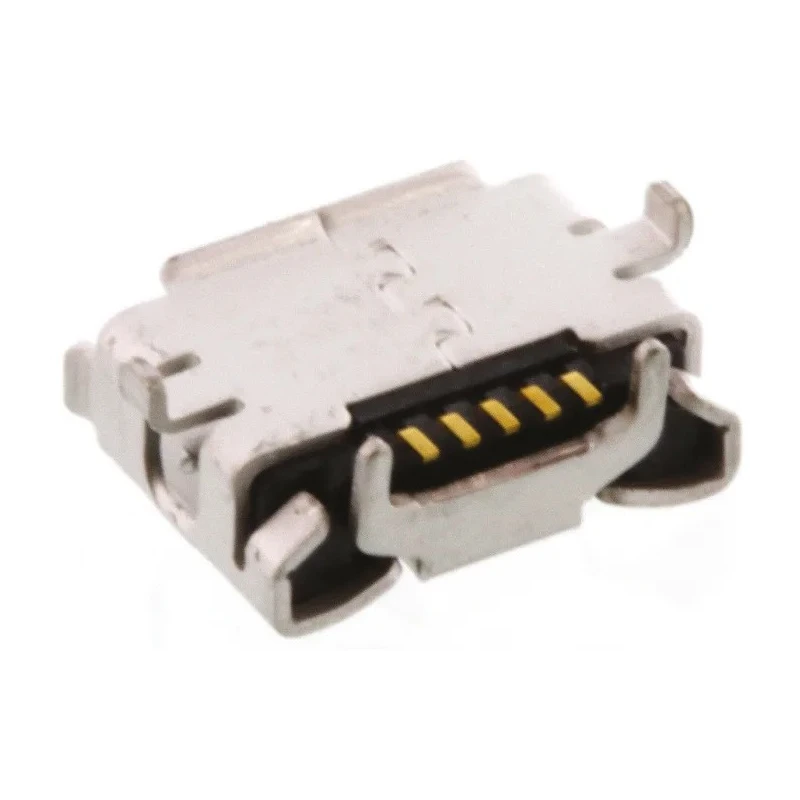

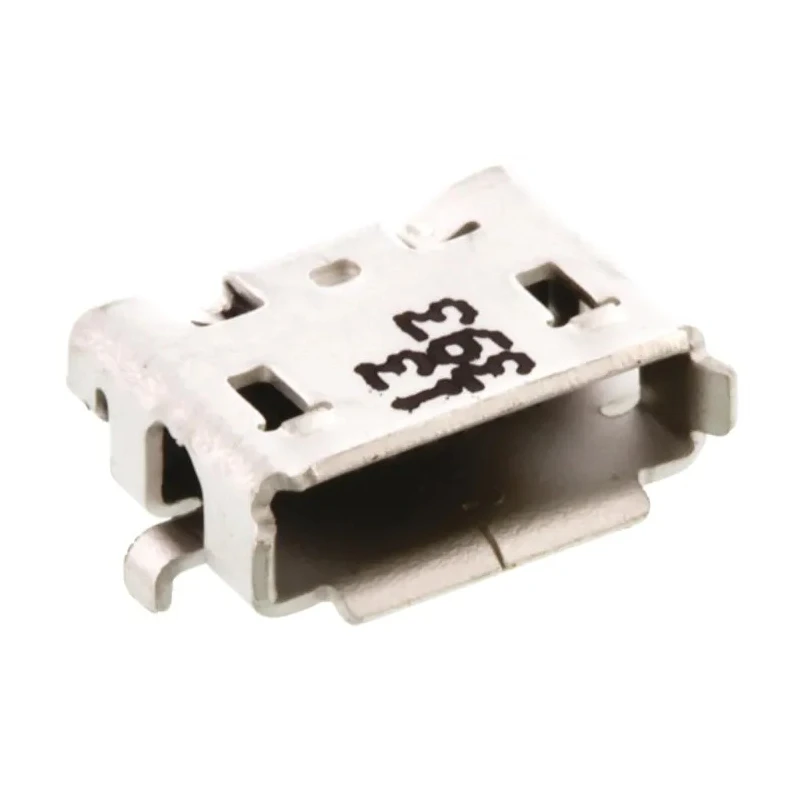

Molex Right Angle Surface Mount Female 1 Port Micro USB Type AB Connector USB 2.0 47589-0001
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | 4758 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| USB Type | Micro USB Type AB |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 702-5488PBrand: MolexManufacturers Part No.: 47589-0001 |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- Compact surface mount design saves PCB space.
- Supports USB 2.0 with 1A current rating and 30V voltage.
- Durable copper alloy contacts for reliable connections.
- Right angle orientation provides wiring flexibility.
- Over 10,000 insertion cycles for high durability.
- Lead-in housing facilitates blind mating with cable plugs.
- Fully shielded stainless steel shell ensures EMI protection and mechanical strength.
- Latching tabs secure the connector to mating plugs firmly.
Product Description
Molex 47589-0001 is a Right Angle Surface Mount female 1 port Micro USB Type AB connector compliant with USB 2.0 standards, offering a compact and reliable solution for electronic devices requiring high-speed data transfer.
The connector features a space-saving 0.65 mm pitch design with durable copper alloy contacts engineered for over 10,000 mating cycles. Its right angle orientation accommodates PCB layout flexibility, while the lead-in feature on its housing enables blind mating with compatible cable plugs, simplifying assembly.
The connector’s fully shielded laser-welded stainless steel shell provides robust mechanical strength and effective EMI shielding for enhanced signal integrity. Latching tabs incorporated in the shell ensure a secure mating connection to prevent accidental disconnections during use.
Engineered to operate reliably within a temperature range of -20°C to 85°C and rated for 1 amp current and 30 volts, this connector supports a wide variety of small portable electronic devices. Typical applications encompass mobile phones, PDAs, GPS units, MP3 players, digital cameras, printers, keyboards, flash drives, and vehicle battery chargers.
This USB Type AB connector series offers performance and reliability ideally suited for demanding industrial, commercial, and consumer electronics environments. Compact surface mount design saves PCB space. Supports USB 2.0 with 1A current rating and 30V voltage.
Durable copper alloy contacts for reliable connections. Right angle orientation provides wiring flexibility. Over 10,000 insertion cycles for high durability. Lead-in housing facilitates blind mating with cable plugs. Fully shielded stainless steel shell ensures EMI protection and mechanical strength.
Latching tabs secure the connector to mating plugs firmly. Operating temperature range from -20°C to 85°C for varied environments. Ideal for small portable electronics including mobile phones, GPS, and cameras. Explore our comprehensive range of USB Connectors on EnvMart to find compatible parts and accessories designed for industrial, laboratory, and commercial electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 1A, making it suitable for various electronic applications.
This connector supports a voltage of 30V, allowing it to be used in a range of electronic devices.
The operating temperature range is from -20°C to 85°C, which accommodates various environmental conditions.
It is engineered for over 10,000 insertion cycles, ensuring durability in frequent use scenarios.
This model features a surface mount design, which helps save PCB space during installation.
The contacts are made from durable copper alloy, providing reliable connections.
It has a right angle orientation, which offers flexibility in wiring and PCB layout.
This connector complies with USB 2.0 specifications, ensuring compatibility with various devices.
It uses solder termination, which is common for secure connections on PCBs.
Typical applications include mobile phones, PDAs, GPS units, MP3 players, and digital cameras.
Yes, it features a fully shielded stainless steel shell that ensures EMI protection and mechanical strength.
This connector is a female type, designed to mate with male USB plugs.
