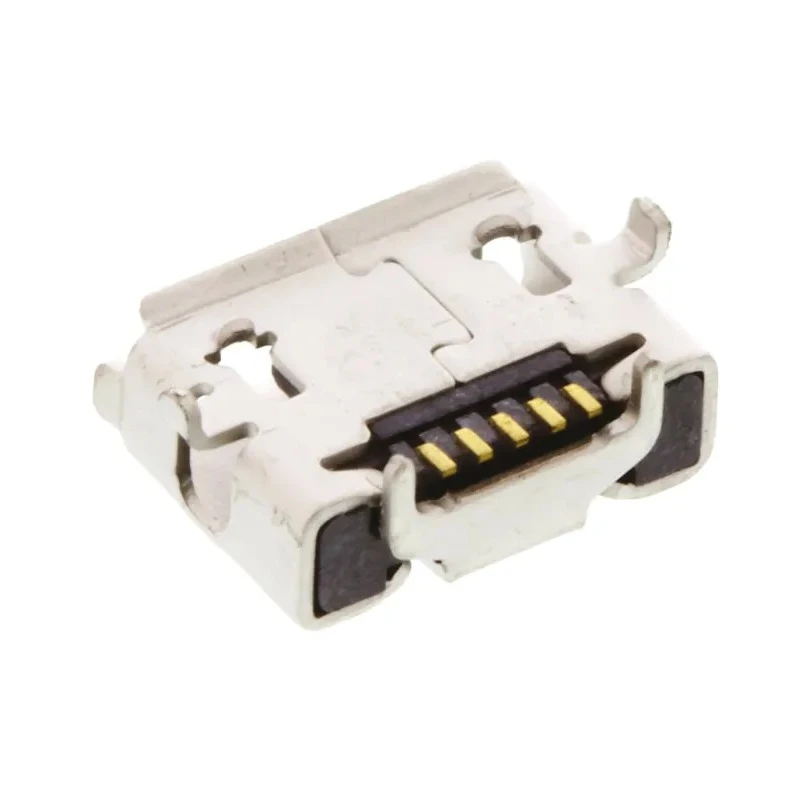

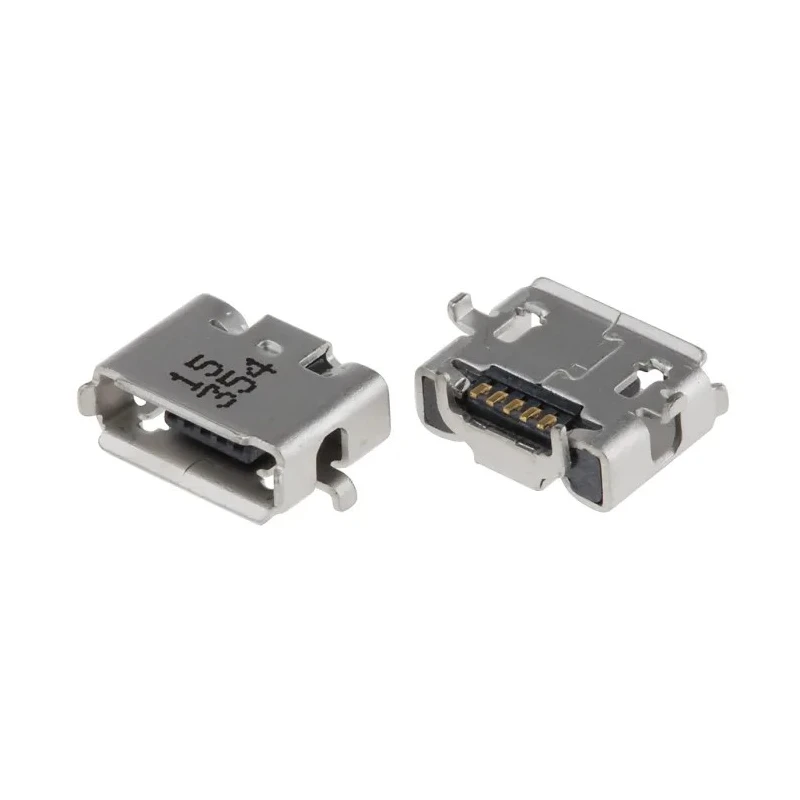

Molex Right Angle Surface Mount Female 1 Port Micro USB Type AB Connector USB 2.0 47590-0001

Molex 47590-0001 is a high-quality USB connector designed as a right angle surface mount female Micro USB Type AB interface compliant with USB 2.0 standards. It supports a current rating of 1.8A and voltage rating up to 30V, suitable for robust power and data transmission applications.

Its copper alloy contact material ensures high electrical conductivity for reliable signal transfer, while gold-plated contacts protect against corrosion to maintain connection integrity over extended usage.

This connector operates effectively across a broad temperature range from -30°C to +85°C, making it well-suited for demanding industrial and commercial environments.

The solder termination offers a secure, vibration-resistant joint ideal for PCB mounting, providing mechanical stability. The right angle orientation facilitates installation in space-constrained areas, optimizing PCB layout.

Featuring a fully shielded laser-welded stainless steel shell, this Molex connector provides mechanical strength and excellent electromagnetic interference (EMI) protection. The shell's latching tabs ensure a firm mating with the plug assembly, preventing loosening during operation.

Designed for durability, it guarantees over 10,000 mating cycles, attesting to a long service life critical for industrial and laboratory equipment requiring dependable USB connections.

This connector supports OTG (On-The-Go) technology, which allows portable devices like PDAs, digital cameras, and vehicle battery chargers to communicate directly without the need for a host computer. This capability enhances the functionality and connectivity of mobile and embedded systems.

Applications include personal digital assistants (PDAs), digital cameras, vehicle battery chargers, and other portable electronic devices requiring compact, reliable USB connectivity solutions.

Manufactured in China, this product is part of the Molex MICRO-USB series, which features a compact PCB space-saving footprint and advanced design elements such as lead-in housing for blind mating, ensuring ease of assembly and high reliability.

EnvMart offers this Molex 47590-0001 Connector as an essential component for electronics manufacturing, repair, and assembly, meeting high industrial standards for USB power and data transmission.
