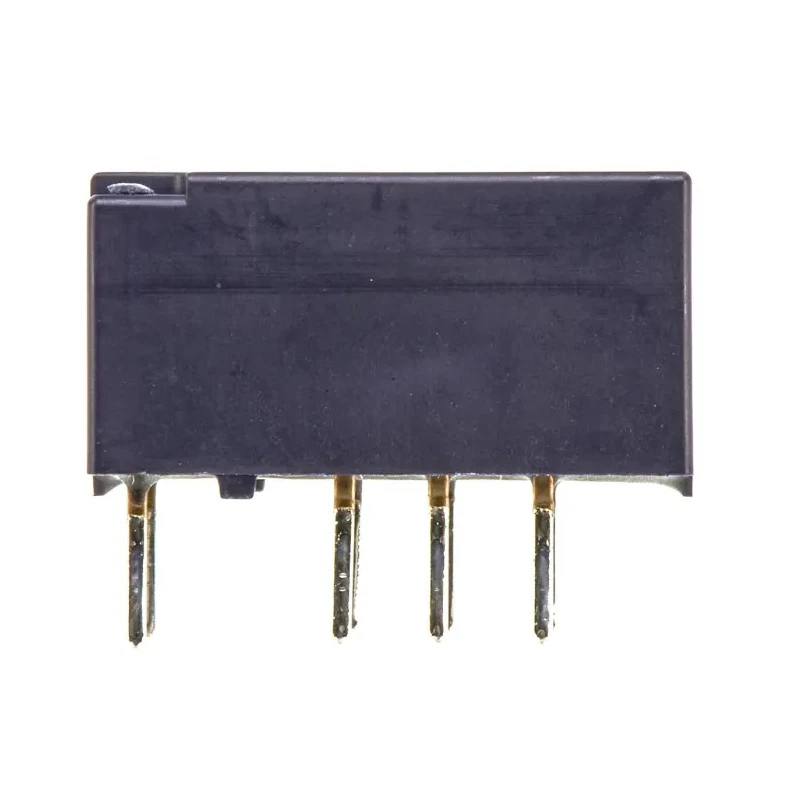

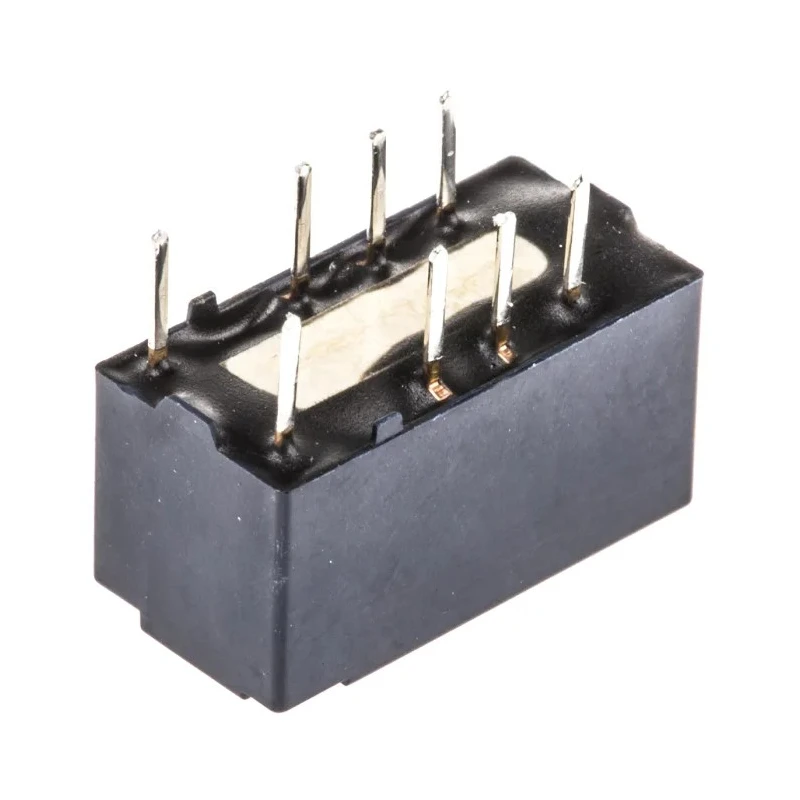

Panasonic Through Hole Signal Relay, 24V DC Coil, 2A Switching Current, DPDT Contact Configuration TXD2-24V

Panasonic TXD2-24V Through Hole Signal Relay is a high-quality, reliable signal relay featuring a 24V DC coil and 2A switching current with DPDT contact configuration. Designed for PCB mounting via a through hole mount, this relay offers compact dimensions of 15mm length, 7.4mm width, and 8.2mm height, making it suitable for space-constrained industrial and electronic applications.

This relay features gold plated contacts providing superior conductivity and reliability, with a coil resistance of 1850 ohms and coil power of 230 milliwatts for energy-efficient operation. Its sealed construction enhances shock and vibration resistance and allows for automatic washing processes, assuring durability in demanding environments.

Operating safely between temperatures of -40°C and 85°C, the TXD2-24V is compliant with RoHS environmental standards, emphasizing safety and eco-friendly manufacturing practices. Its robust design and approved supplementary insulation class according to EN standards (EN60950) make it suitable for use in facsimile machines, modems, communication devices, medical equipment, automotive electronics, and security systems.

The relay offers a switching voltage rating of up to 220V AC and DC, enabling versatile electrical applications requiring reliable switching performance. Made in Japan, Panasonic ensures quality through recognized certifications including UL, CSA, and BSI approvals.

Coil voltage is 24 volts DC for stable relay operation. Contact configuration is DPDT, supporting dual-pole, double-throw switching. Switching current rating of 2 amperes ensures reliable load handling. Gold plated contacts provide enhanced durability and conductivity.

Compact form factor with 15mm x 7.4mm x 8.2mm dimensions for efficient PCB integration. Energy-efficient coil power consumption of 230mW. Wide operating temperature range: -40°C to 85°C. Exceptional shock and vibration resistance with sealed construction.

Compliance with RoHS standards and EN supplementary insulation. Manufactured in Japan, UL recognized, CSA and BSI approved.

This Panasonic through hole signal relay is engineered for industrial, automation, communication, medical, automotive, and security applications requiring high reliability and performance. For more Signal Relay options or Panasonic products, browse EnvMart's extensive product catalog to find the best fit for your technical application needs.
