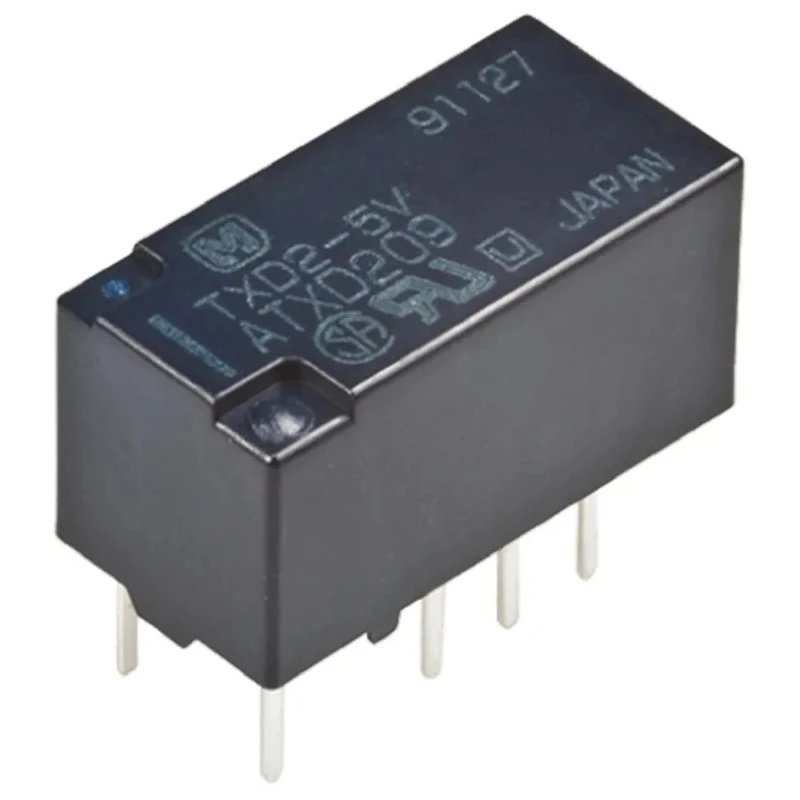

Panasonic PCB Signal Relay, 5V DC Coil, 2A Switching Current, DPDT Contact Configuration, 220V DC Switching Voltage TXD2-L-5V

Panasonic TXD2-L-5V PCB Signal Relay is a high-quality electronic component designed for use in signal switching applications requiring a reliable and compact relay solution. This signal relay features a 5V DC coil voltage powering a double pole double throw (DPDT) contact configuration suitable for diverse industrial and commercial electronic circuits. With a switching current rating of 2A and switching DC voltage capability up to 220V, it ensures robust performance in demanding environments.

The relay mounts directly on printed circuit boards (PCBs) via through-hole terminals, facilitating straightforward installation and integration into various devices. Its compact physical dimensions - 15mm in length, 7.4mm width, and 8.2mm height - make it ideal for space-constrained designs.

Operating reliably across a wide temperature spectrum from -40°C to +85°C, the TXD2-L-5V ensures stable function in challenging conditions. The contact material is gold-plated to minimize contact resistance (100mΩ typical) and offers enhanced corrosion resistance to extend operational life. Coil resistance stands at 166Ω with a coil power rating of 230mW, promoting low power consumption.

Built for durability, this relay series exhibits superior shock and vibration resistance with a sealed construction that supports automated washing processes, making it suitable for manufacturing environments. It complies with RoHS standards and is produced in Japan, underscoring its quality and safety for industrial, laboratory, communication, automotive, medical, and security applications.

This PCB signal relay features a 5V DC coil voltage and DPDT contact configuration. Switching current rating of 2A and switching voltage up to 220V DC. Compact through-hole mount design with dimensions 15mm x 7.4mm x 8.2mm.

Wide operating temperature range from -40°C to 85°C for versatile use. Gold plated contacts ensure low resistance and reliable signal switching. Coil resistance is 166Ω and power consumption only 230mW. Sealed construction offers high shock, vibration resistance, and automatic washing compatibility.

Complies with RoHS requirements and originates from Japan.

Typical applications for the Panasonic TXD2-L-5V relay include facsimile machines, modems, communication equipment, medical devices, automotive electronics, and security systems. Its strong surge breakdown voltage and approvals including UL recognition, CSA, and BSI make it suitable for high-reliability industrial environments.

Explore Panasonic's range of Signal Relays for reliable performance in electronics and automation systems at EnvMart.
