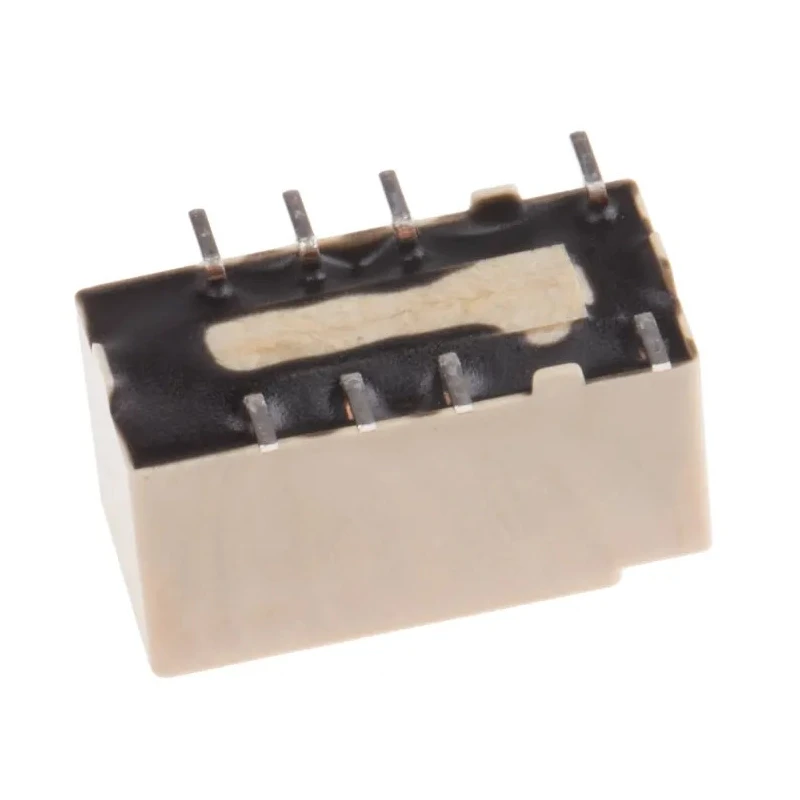

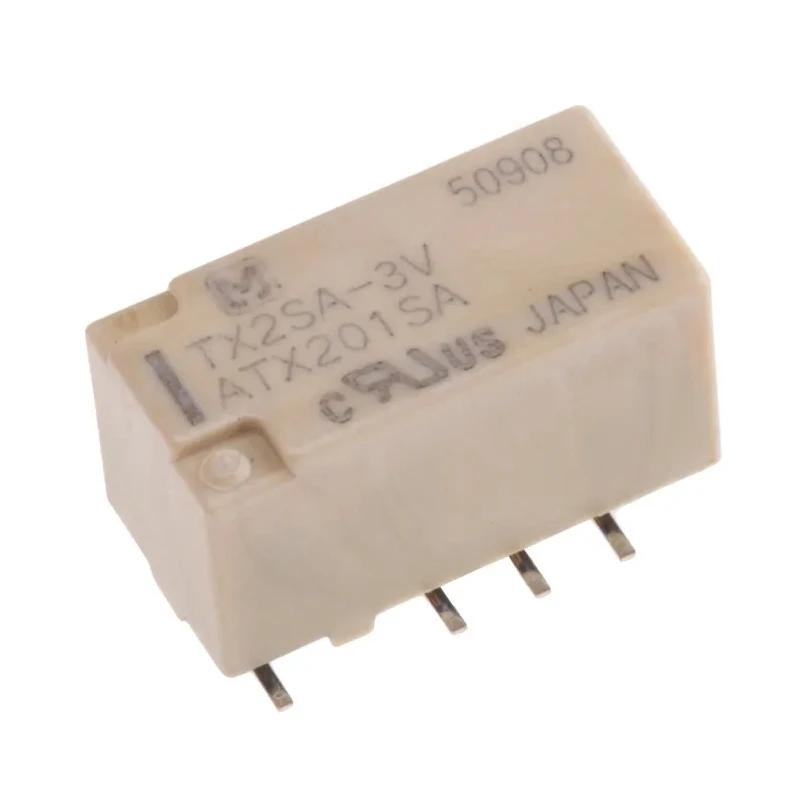

Panasonic Surface Signal Relay, 3V DC Coil Voltage, 2A Switching Current, DPDT Contact Configuration TX2SA-3V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 8.2mm |
| Length | 15mm |
| Model | TX2SA-3V |
| Width | 7.4mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | G6K |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-6354Brand: PanasonicManufacturers Part No.: TX2SA-3V |
| Coil Resistance | 64.3Ω |
| Coil Voltage | 3V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 220V ac |
| Coil Power | 140mW |
Key Features
- DPDT contact configuration for versatile switching applications.
- Surface mount type suitable for PCB integration.
- High switching voltages of 220V AC and DC ensure robust performance.
- Coil resistance of 64.3Ω and low coil power of 140mW.
- Gold plated contact material enhances conductivity and durability.
- Wide operating temperature range from -40°C to 85°C.
- Sealed construction allows for automatic washing processes.
- Ideal for telecommunications, measurement, security, and medical equipment.
Product Description
Panasonic TX2SA-3V surface mount Signal Relay features a 3V DC coil voltage and 2A switching current designed for reliable electrical circuit switching. Its DPDT (Double-Pole Double-Throw) contact configuration supports a wide range of applications where multiple circuit switching is needed.
This relay adopts a compact form factor measuring 15mm in length, 7.4mm in width, and 8.2mm in height, making it suitable for PCB surface mounting. The coil exhibits a resistance of 64.3Ω and a low power consumption of 140mW. The gold-plated contacts provide excellent conductivity and resistance to corrosion.
It supports switching voltages up to 220V AC and DC, and operates efficiently within a temperature range of -40°C to 85°C. The sealed construction ensures durability and allows for automatic washing processes common in manufacturing environments.
This relay series offers high breakdown and surge voltage tolerance alongside superior vibration and shock resistance, making it ideal for industrial uses such as telecommunications, measurement instruments, security devices, and medical equipment.
DPDT contact configuration with gold-plated contacts ensures high reliability. Compact surface mount design for efficient PCB layout integration. Supports 3V DC coil voltage with low coil power consumption. Wide temperature operation range -40°C to 85°C.
Sealed construction suitable for automatic washing. High switching voltage capability up to 220V AC/DC. High vibration and shock resistance for rugged applications. Ideal for telecommunication and measurement industries.
RoHS compliant for environmental safety.
This Panasonic TX2SA-3V relay provides a reliable, compact, and efficient switching solution for various industrial and electronic applications. Explore the Electronics & Electricals category at EnvMart for related relays and components to optimize your design and manufacturing processes.
