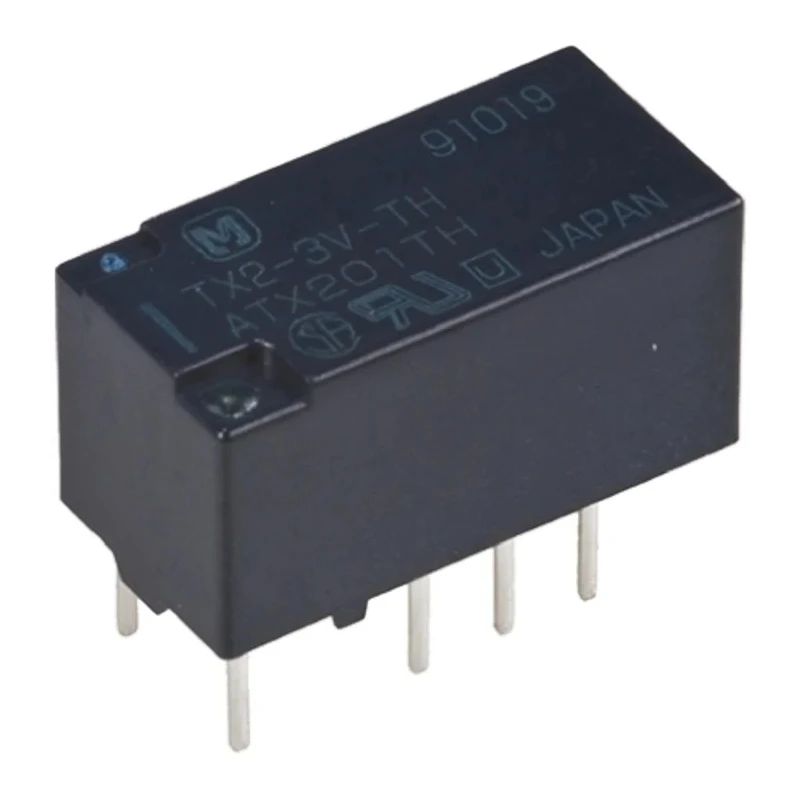

Panasonic PCB Signal Relay 24V DC Coil 2A DPDT Through Hole Mount TX2-L2-24V-TH
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 8.2mm |
| Length | 15mm |
| Model | TX2-L2-24V-TH |
| Width | 7.4mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | TX-TH |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-6314Brand: PanasonicManufacturers Part No.: TX2-L2-24V-TH |
| Coil Resistance | 4.114kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Switching Power | 60W |
Key Features
- Supports a switching current of 2A.
- Suitable for PCB mount applications with through hole terminal type.
- Operates within a temperature range of -40°C to 85°C.
- Compact dimensions with length 15mm, width 7.4mm and height 8.2mm.
- Features gold plated contacts with a contact resistance of 100mΩ.
- Low coil power consumption of 140mW and coil resistance of 4.114kΩ.
- High contact capacity with 7.5A inrush current capability.
- Sealed construction for surge resistance and automatic washing.
Product Description
Panasonic TX2-L2-24V-TH PCB Signal Relay features a 24V DC coil and DPDT (Double Pole Double Throw) contact configuration, designed for reliable signal relay applications in industrial and automation environments. The relay supports a switching current of 2A and a switching voltage of up to 250V AC and 220V DC, making it suitable for various electrical and control applications.
This relay is PCB mount type with through hole terminals, enabling easy integration onto printed circuit boards. Its compact form factor with dimensions of 15mm length, 7.4mm width, and 8.2mm height facilitates installation in tight spaces. The gold plated contact material ensures low contact resistance of 100mΩ, enhancing electrical performance and durability.
Designed for harsh conditions, it operates over a wide temperature range from -40°C to 85°C. The coil consumes only 140mW of power with a coil resistance of 4.114kΩ, ensuring energy efficiency. Notably, this relay can handle a controlled inrush current of up to 7.5A, supporting high capacity control requirements such as air conditioning systems and other industrial equipment.
Its sealed construction provides excellent surge resistance along with high vibration and shock tolerance, suitable for industrial, HVAC, manufacturing, and automation system applications. Compliance with RoHS environmental standards ensures it meets industry regulatory requirements. Manufactured in Japan, this Panasonic relay guarantees quality and reliability.
Typical use cases include signal conditioning, electrical isolation, automation controls, and switching applications requiring precise and durable relay components. The TX2-L2-24V-TH relay is an essential component for engineers and designers focused on high performance and compact signal relay needs.
Supports a switching current of 2A. Suitable for PCB mount applications with through hole terminal type. Operates within a temperature range of -40°C to 85°C. Compact dimensions with length 15mm, width 7.4mm and height 8.2mm.
Features gold plated contacts with a contact resistance of 100mΩ. Low coil power consumption of 140mW and coil resistance of 4.114kΩ. High contact capacity with 7.5A inrush current capability. Sealed construction for surge resistance and automatic washing.
Compliance with RoHS standards. Explore more Panasonic Signal Relays and components at EnvMart for your electrical and industrial automation needs.
