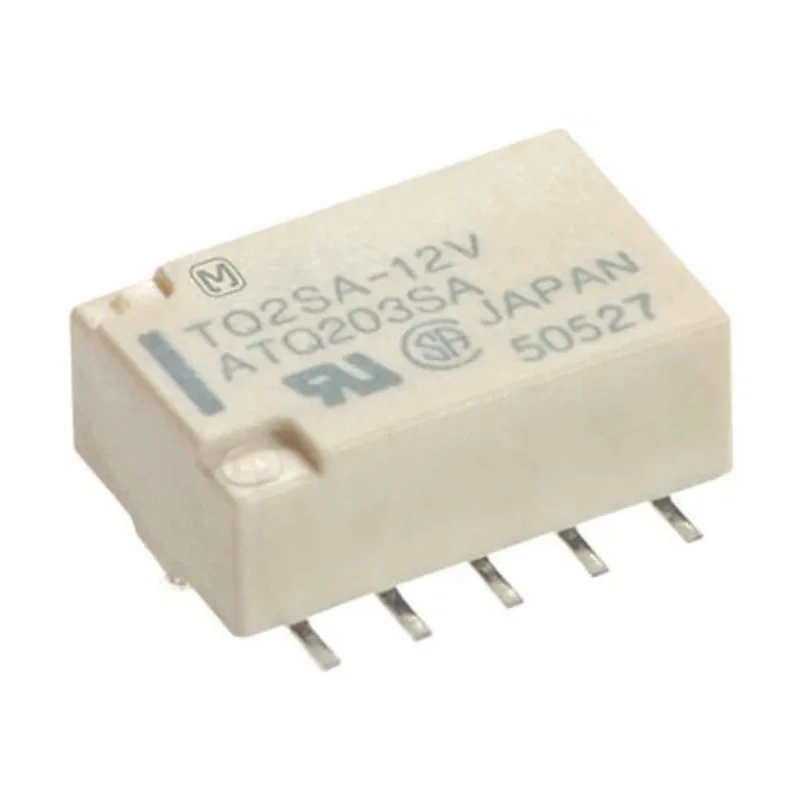

Panasonic PCB Signal Relay 24V DC Coil, 2A Switching Current, DPDT Contact Configuration TQ2SA-L2-24V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5.6mm |
| Length | 14mm |
| Model | TQ2SA-L2-24V |
| Width | 9mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | TQ |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-6257Brand: PanasonicManufacturers Part No.: TQ2SA-L2-24V |
| Coil Resistance | 2.88kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 200mW |
| Switching Power | 60W |
Key Features
- The relay operates with a switching current capacity of 2 amperes.
- Supports switching voltages of up to 125V AC and 220V DC.
- Compact low-profile design with 5.6 mm height suitable for surface mounting.
- Gold-plated contacts provide low contact resistance of 50 milliohms.
- Coil resistance is 2.88 kilo-ohms with a coil power consumption of 200 milliwatts.
- Operates reliably in temperature range from -40°C to 70°C.
- RoHS compliant meeting industry quality and safety standards.
- Ideal for industrial control, communication, measurement and quality assurance equipment.
Product Description
Panasonic TQ2SA-L2-24V PCB Signal Relay is a high-quality latching relay designed for industrial and commercial electronics applications featuring a 24V DC coil voltage and a 2A switching current with DPDT (double-pole double-throw) contact configuration. Its compact low profile height of 5.6 mm and surface mount design facilitate efficient PCB integration in automation and control systems.
The relay enables switching of loads up to 125V AC and 220V DC, making it versatile for various electrical circuits. Gold-plated contacts ensure low contact resistance of 50 milliohms, enhancing reliability and signal integrity in sensitive electronic environments. With coil resistance of 2.88 kΩ and nominal coil power of only 200mW, it provides energy-efficient operation suitable for long-term use.
Designed to withstand operating temperatures from -40°C to +70°C, this relay reliably performs in demanding industrial conditions. The product is RoHS compliant ensuring environmental safety and meets recognized industry approvals for quality standards. Its flat compact body supports high-frequency characteristics and low thermal EMF, suitable for communication applications, measurement devices, and QA instrumentations.
The Panasonic TQ2 Series latching relays are ideal for automated surface mount devices offering high sensitivity and durability. Its application in signal conditioning and relay-based automation systems enhances performance reliability for industrial, laboratory, and commercial use cases.
The relay supports PCB surface mounting with low profile terminals. It is suitable for SMD automatic insertion processes in manufacturing. Gold plated contact material assures longevity and minimal electrical noise. Often used in communication equipment, measurement instruments, and QA equipment.
Comes from Japan with assured build quality and technical precision.
This product fits within the Signal Relay category at EnvMart, ideal for customers seeking robust industrial-grade PCB relays. For more options, browse our extensive range of Panasonic Signal Relays and related products suitable for diverse electrical and industrial automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 2 amperes.
It supports switching voltages of up to 125V AC and 220V DC.
The coil voltage is 24V DC, with a coil power consumption of 200 milliwatts.
This model has a height of 5.6 mm, length of 14 mm, and width of 9 mm.
It features a DPDT (double-pole double-throw) contact configuration.
The contact resistance is 50 milliohms, which helps enhance reliability and signal integrity.
It operates reliably in a temperature range from -40°C to +70°C.
This relay is designed for PCB surface mounting with low profile terminals.
The coil resistance is 2.88 kilo-ohms.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
It is ideal for industrial control, communication, measurement, and quality assurance equipment.
This relay is manufactured in Japan.
