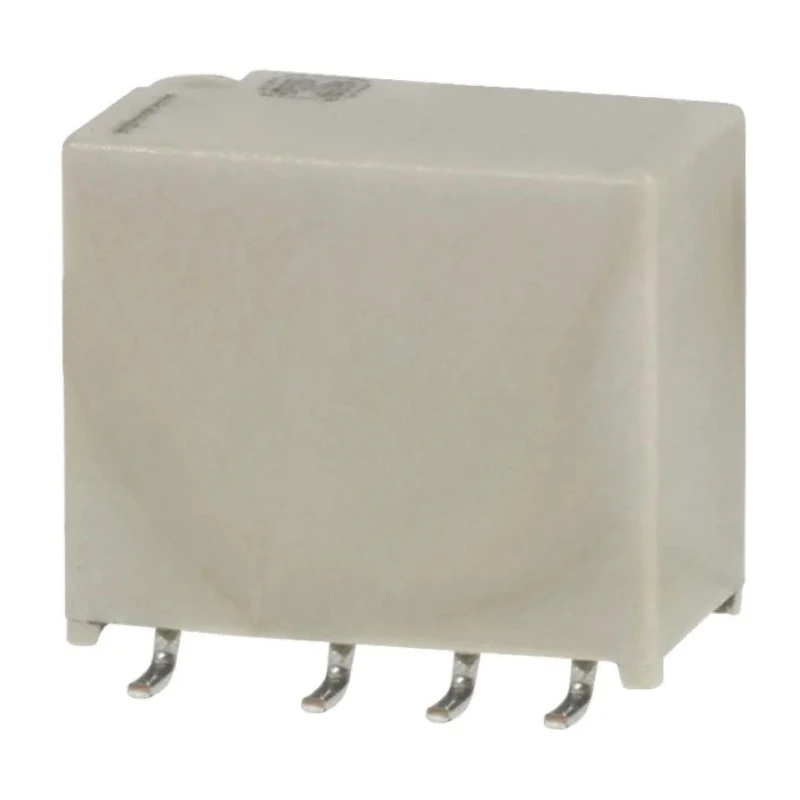

Panasonic Surface Signal Relay 3V DC Coil 1A DPDT AGN260A03
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 9mm |
| Length | 10.9mm |
| Model | AGN260A03 |
| Width | 5.7mm |
| Mount Type | Surface |
| Contact Material | Gold Plated Silver Aluminium |
| Series | FTR-B4 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-5884Brand: PanasonicManufacturers Part No.: AGN260A03 |
| Coil Resistance | 90Ω |
| Coil Voltage | 3V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 100mW |
Key Features
- Compact slim body measuring 9mm height, 10.9mm length, and 5.7mm width for high packing density.
- Gold plated silver aluminum contacts ensure excellent conductivity and reliability.
- Suitable for mounting on PCBs with surface mount type and PCB terminal connections.
- Wide operating temperature range from -40°C to 85°C suitable for varied environments.
- Low coil power consumption at 100mW with a coil resistance of 90Ω.
- High surge resistance and vibration/shock resistance for demanding industrial applications.
- Typical use in telecommunications, measurement, audio-visual, and automation equipment.
- Sealed construction allows safe automatic washing processes.
Product Description
Panasonic AGN260A03 Surface Signal Relay is a high-quality DPDT relay designed for industrial and electronic applications requiring reliable switching performance. Featuring a low power 3V DC coil and capable of handling a switching current of 1A, this relay supports both AC and DC loads with switching AC voltage up to 125V and DC voltage up to 110V.
The relay's compact slim body, with a height of only 9mm and small footprint measuring 5.7mm by 10.9mm, allows for increased packing density on printed circuit boards. Its surface mount design with PCB terminals simplifies installation in a variety of electronic systems.
Constructed with gold plated silver aluminum contacts, the AGN260A03 ensures high contact reliability and long service life. It withstands high surge currents and offers excellent resistance against vibration and shock, making it ideal for rugged industrial, telecommunications, and measurement applications.
This model is sealed for automatic washing and meets the environmentally friendly RoHS directive. Operating temperature ranges from -40°C to 85°C, ensuring performance across diverse environmental conditions.
Commonly used in telecommunications, audio visual devices, and measurement equipment, this relay is a versatile component for automation and control solutions requiring precise and durable signal switching.
Compact slim body measuring 9mm height, 10.9mm length, and 5.7mm width for high packing density. Gold plated silver aluminum contacts ensure excellent conductivity and reliability. Suitable for mounting on PCBs with surface mount type and PCB terminal connections.
Wide operating temperature range from -40°C to 85°C suitable for varied environments. Low coil power consumption at 100mW with a coil resistance of 90Ω. High surge resistance and vibration/shock resistance for demanding industrial applications.
Typical use in telecommunications, measurement, audio-visual, and automation equipment. Sealed construction allows safe automatic washing processes. Complies with RoHS standards, ensuring environmental compatibility. Manufactured in Japan providing assured quality and performance.
Explore our wide range of Signal Relays and electrical components on EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 1A.
The coil voltage for this relay is 3V DC.
It has a compact slim body measuring 9mm in height, 10.9mm in length, and 5.7mm in width.
The relay operates within a temperature range of -40°C to 85°C.
It features a DPDT (Double Pole Double Throw) contact configuration.
The contacts are made of gold plated silver aluminum, ensuring excellent conductivity and reliability.
This relay is suitable for surface mounting and has PCB terminal connections.
The coil resistance for the AGN260A03 is 90Ω.
It can switch AC voltage up to 125V and DC voltage up to 110V.
Yes, it complies with RoHS standards, ensuring environmental compatibility.
The coil power consumption is low at 100mW.
This relay is commonly used in telecommunications, measurement, audio-visual, and automation equipment.
