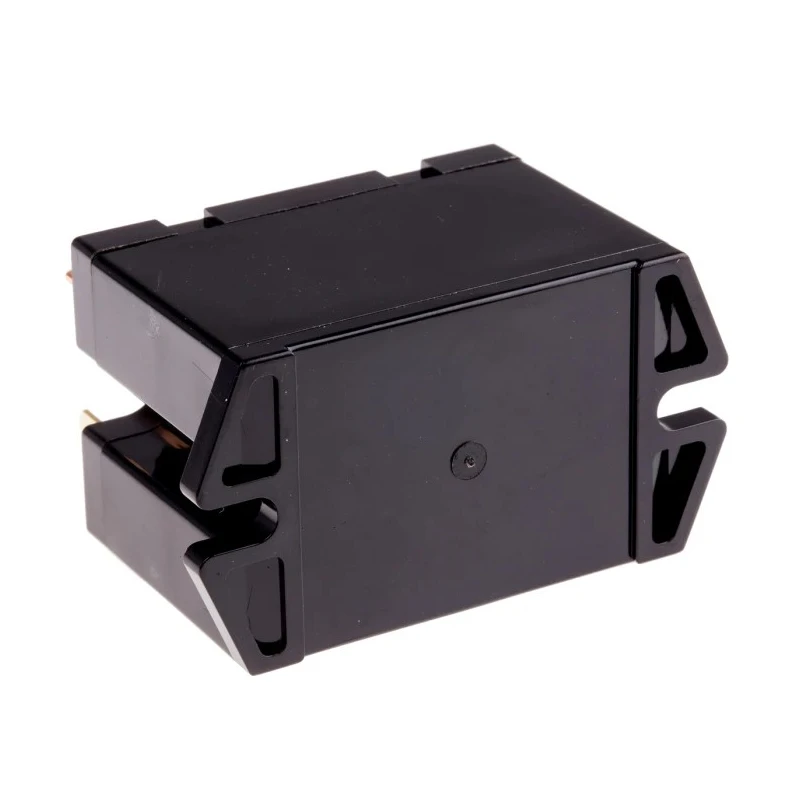

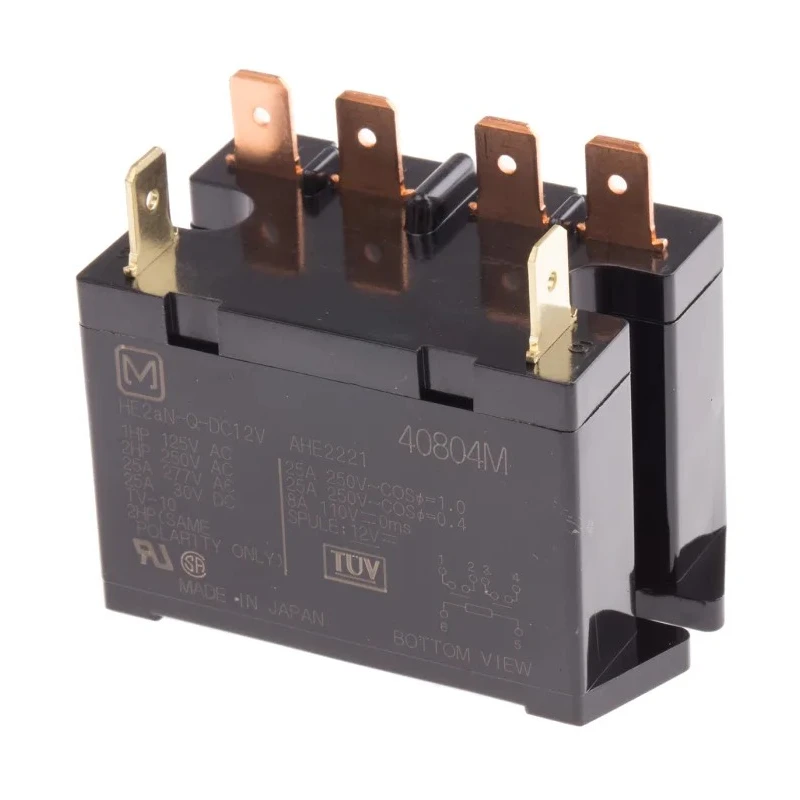

Panasonic PCB Power Relay 12V DC Coil 30A Switching Current DPST HE2AN-Q-DC12V

Panasonic HE2AN-Q-DC12V PCB Power Relay is a high-performance electrical component designed for industrial, office equipment, and home appliance automation. Featuring a nominal 12V DC coil voltage and capable of switching up to 30A current, this DPST relay offers excellent surge resistance above 10,000V, ensuring durability and reliability in demanding applications.

Constructed with silver alloy contacts, it ensures minimal contact resistance (100mΩ) for efficient electrical performance and reduced power losses. The relay's compact form factor, measuring 60mm in length, 35mm in height, and 33mm in width, allows for convenient PCB mount installation with quick connect terminals, facilitating rapid assembly and servicing.

Engineered for robust operation, it is rated for switching voltages up to 277V AC and 30V DC. Its coil resistance of 75Ω and coil power of 1.92W provide balanced power consumption without sacrificing operational reliability. The relay supports a broad operating temperature range from -50°C to 55°C, making it suitable for various industrial environments including machine tools, moulding equipment, air conditioners, and heating systems.

Additional features include superior surge voltage tolerance and a mechanism designed to prevent contact welding through pre-tension and kick-off action. These attributes contribute to a longer lifespan and enhanced performance stability under heavy electrical loads.

High capacity and long life with surge resistance exceeding 10,000V. Compact dimensions of 60mm length, 35mm height, and 33mm width. Silver alloy contact material ensures reliable electrical conductivity. Operating temperature range from -50°C to 55°C suitable for industrial environments.

Quick connect terminal type for ease of installation and maintenance. Ideal for use in machine tools, moulding equipment, air conditioners, and heating equipment. Designed to resist contact welding through pre-tension and kick-off mechanism.

Coil resistance of 75Ω and coil power of 1.92W for efficient operation.

This relay meets multiple international standards and approvals including CSA, VDE, RoHS, TUV, and UL, ensuring compliance and quality assurance for professional industrial applications. Manufactured in Japan, it stands as a premium component for reliable electrical relay requirements.
