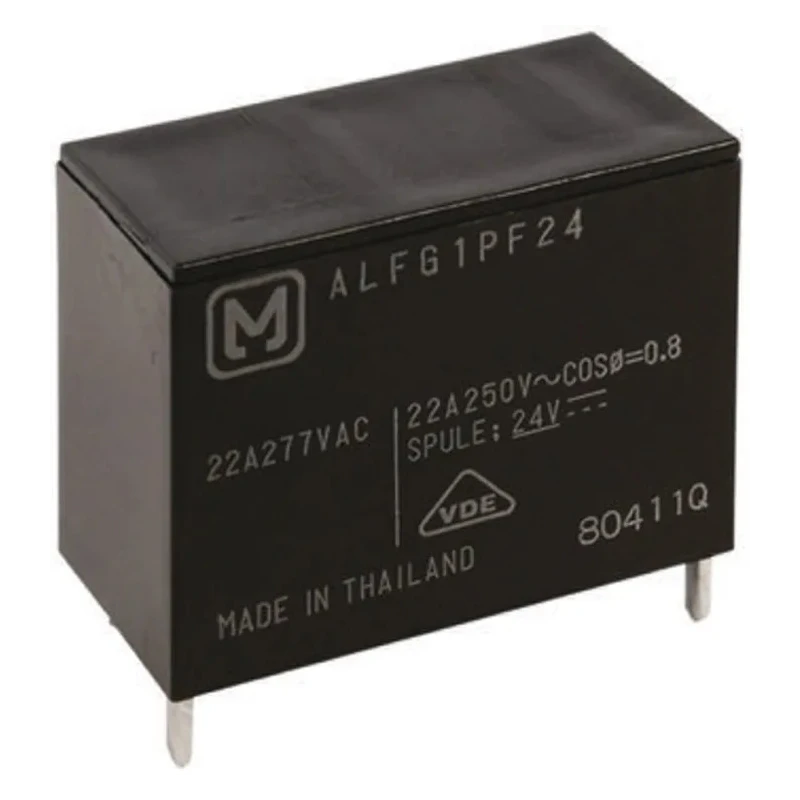

Panasonic PCB Power Relay 12V DC Coil 22A Switching Current SPST ALFG1PF12
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 23.3mm |
| Length | 30.1mm |
| Model | ALFG1PF12 |
| Width | 15.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ALFG |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 22A |
| Terminal type | Through Hole |
| Typical Applications | Solar inverter, Uninterriptible PSU's, Office equipment |
| Contact Resistance | 100mΩ |
| Standards/Approvals | UL, RoHS, VDE |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-5569Brand: PanasonicManufacturers Part No.: ALFG1PF12Distrelec Article No.: 13711160 |
| Coil Resistance | 103Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.4W |
| Surge breakdown voltage | 6kV |
Key Features
- This power relay has a SPST contact configuration suitable for PCB mounting.
- Coil resistance is 103 ohms with coil power consumption of 1.4W.
- The relay supports a switching AC voltage up to 250V AC.
- Operating temperature range is from -40°C to 60°C for durability.
- Contact material uses silver alloy ensuring low contact resistance of 100mΩ.
- Compact size dimensions include length 30.1mm, width 15.7mm, and height 23.3mm.
- Surge breakdown voltage rating is 6kV for strong insulation resistance.
- Typical applications include solar inverters, uninterruptible power supplies, and office equipment.
Product Description
Panasonic ALFG1PF12 is a PCB power relay with a 12V DC coil voltage and a high switching current capacity of 22A, designed for reliable electrical switching in various industrial and electronic systems.
The relay features a SPST contact configuration and through-hole terminal type, making it easy to mount on printed circuit boards. Its ALFG series design offers compact dimensions (30.1mm length, 15.7mm width, 23.3mm height) suitable for space-constrained applications.
With a coil resistance of 103Ω and coil power consumption of 1.4W, this relay balances energy efficiency and performance. It can switch AC voltages up to 250V and handle switching power of 5.5 kVA.
Operating temperature ranges from -40°C to 60°C, providing robust performance across varying environmental conditions. The contact material is a silver alloy, which ensures low contact resistance of 100mΩ, enhancing electrical reliability. The relay’s insulation resistance and a surge breakdown voltage of 6kV contribute to long-term durability and safety.
This compact power relay is ideal for critical applications such as photovoltaic power generation systems (solar inverters), uninterruptible power supplies, home appliances, and office equipment. Its ability to reduce coil holding voltage by up to 35% at 20°C ambient temperature results in significant energy savings for equipment.
This power relay has a SPST contact configuration suitable for PCB mounting. Coil resistance is 103 ohms with coil power consumption of 1.4W. The relay supports a switching AC voltage up to 250V AC. Operating temperature range is from -40°C to 60°C for durability.
Contact material uses silver alloy ensuring low contact resistance of 100mΩ. Compact size dimensions include length 30.1mm, width 15.7mm, and height 23.3mm. Surge breakdown voltage rating is 6kV for strong insulation resistance.
Typical applications include solar inverters, uninterruptible power supplies, and office equipment.
Panasonic’s ALFG1PF12 power relay is built to comply with UL, RoHS, and VDE standards, ensuring industry-standard safety and environmental compliance. This relay is manufactured in Thailand and is supplied new, ready for immediate integration into electrical control and automation projects.
Explore more Power Relays and electrical components in EnvMart's comprehensive Electronics & Electricals category for advanced industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 22A.
The coil voltage for this power relay is 12V DC.
It features a Single Pole Single Throw (SPST) contact configuration.
This relay can switch AC voltages up to 250V AC.
The dimensions of this model are 30.1mm in length, 15.7mm in width, and 23.3mm in height.
The coil power consumption is 1.4W.
The operating temperature range is from -40°C to 60°C.
The contact material is silver alloy, which ensures low contact resistance.
The surge breakdown voltage rating for this relay is 6kV.
Typical applications include solar inverters, uninterruptible power supplies, and office equipment.
This relay complies with UL, RoHS, and VDE standards.
It is designed for PCB mounting with a through-hole terminal type.
