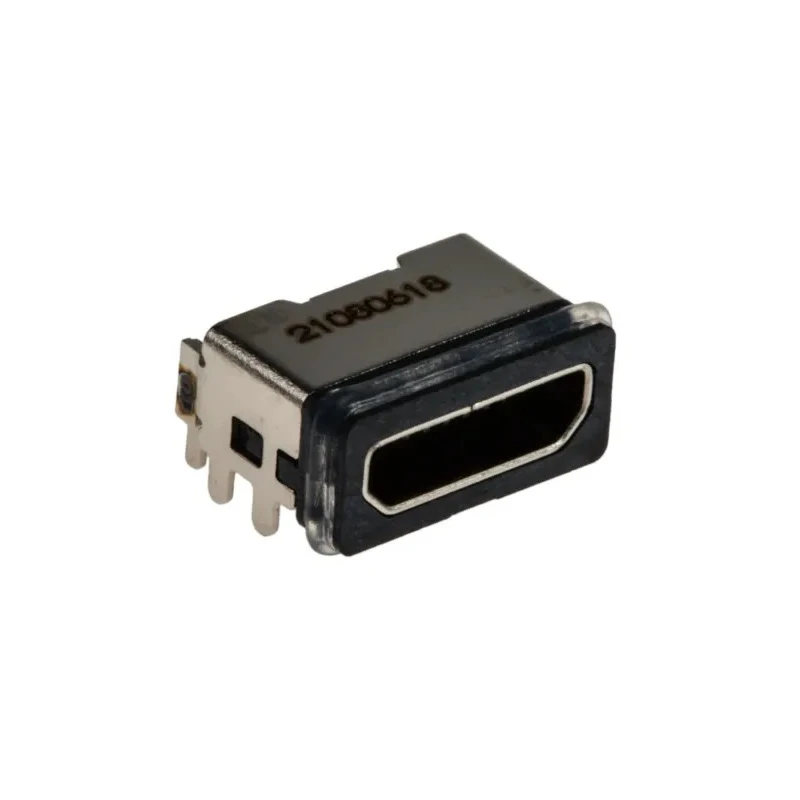

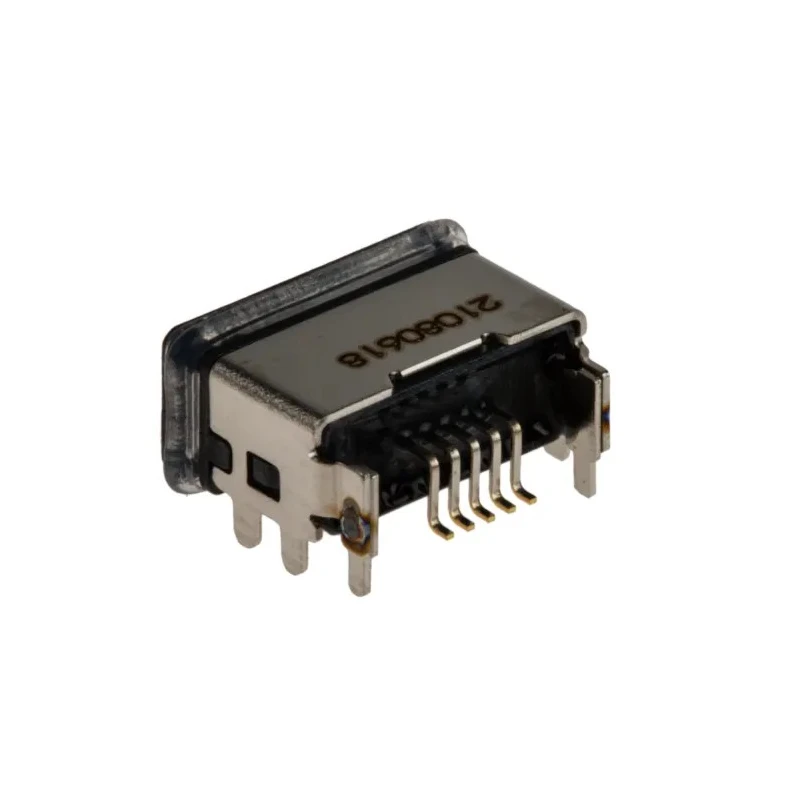

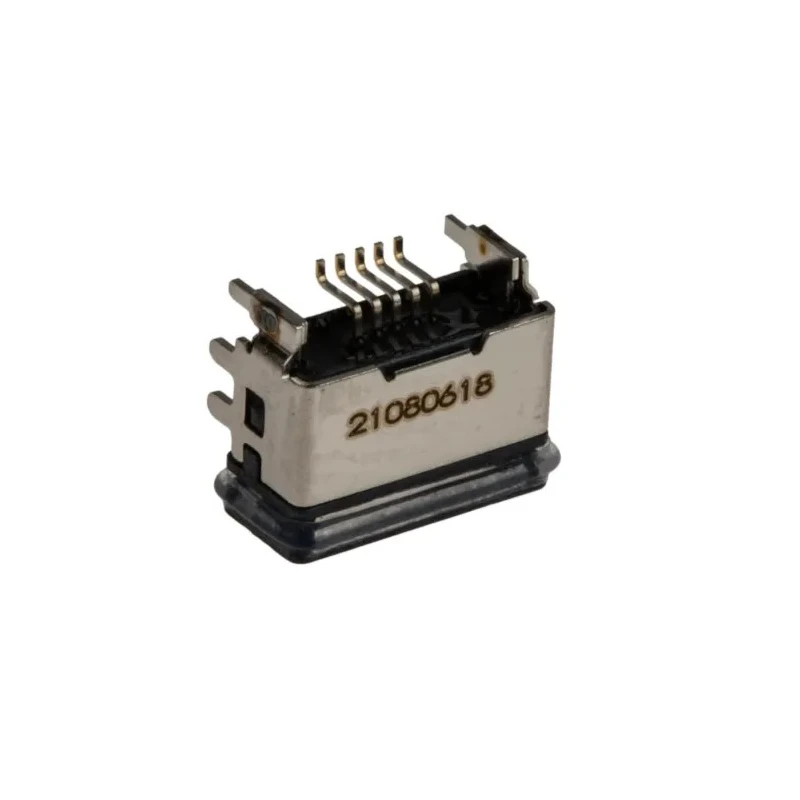

Molex Right Angle Surface Mount Female Micro USB Type B Connector 1 Port IP67 30V 1.8A USB 2.0 204926-1103

Molex 204926-1103 Micro USB Connector is engineered for reliable performance in demanding industrial and consumer electronics applications. Featuring a right angle, surface mount female Micro USB Type B design, it supports USB 2.0 standard to ensure seamless data transmission at high speeds.

The connector is rated for 1.8A current with a maximum operating voltage of 30V. Its IP67 rating certifies protection against dust ingress and temporary immersion in water up to 1 meter, making it suitable for use in environments exposed to moisture and dust.

Copper alloy contacts plated with gold enhance corrosion resistance and provide stable electrical connections. The connector’s termination is through soldering, securing the component firmly onto PCBs with excellent electrical insulation and transfer efficiency.

Its body is made from a liquid crystal polymer resin, which offers high tensile and compressive strength for durability and resistance to physical strain in heavy-duty and industrial settings. The connector is rated for up to 10,000 mating cycles, contributing to a long operational life span.

Operating temperature spans from -30°C to 85°C, enabling reliable function in extreme industrial conditions. The right angle orientation facilitates installation in compact or corner PCB layouts commonly found in mobile and stationary electronic devices.

Applications include a wide range of electronic devices such as printers, projectors, computers, gaming consoles, and DVD players. Supports USB 2.0 high-speed data transfer. 1.8A current rating and 30V voltage rating suitable for various electronic circuits.

Right angle surface mount design for space-saving PCB installations. IP67-rated for dust and water resistance in harsh environments. Gold-plated copper alloy contacts for enhanced durability and corrosion resistance. Solder termination method ensures secure and stable mounting.

Withstands a wide operating temperature range from -30°C to +85°C. Long-lasting service life with 10,000 mating cycles durability. Ideal for applications in consumer electronics and industrial devices. Explore more Molex products in the USB Connectors category at EnvMart to find reliable solutions for your electronics manufacturing and assembly needs.
