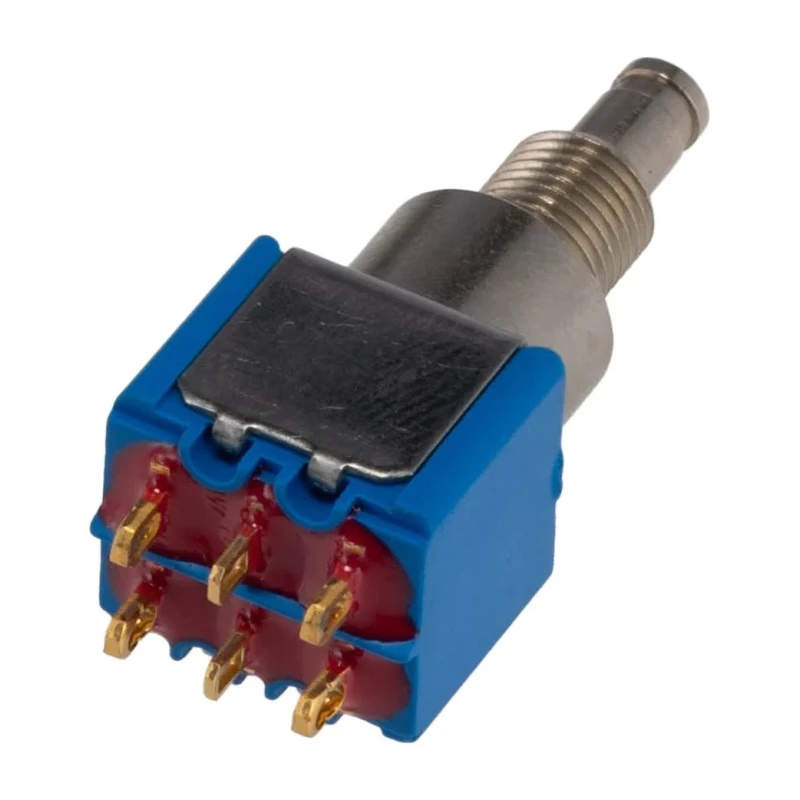

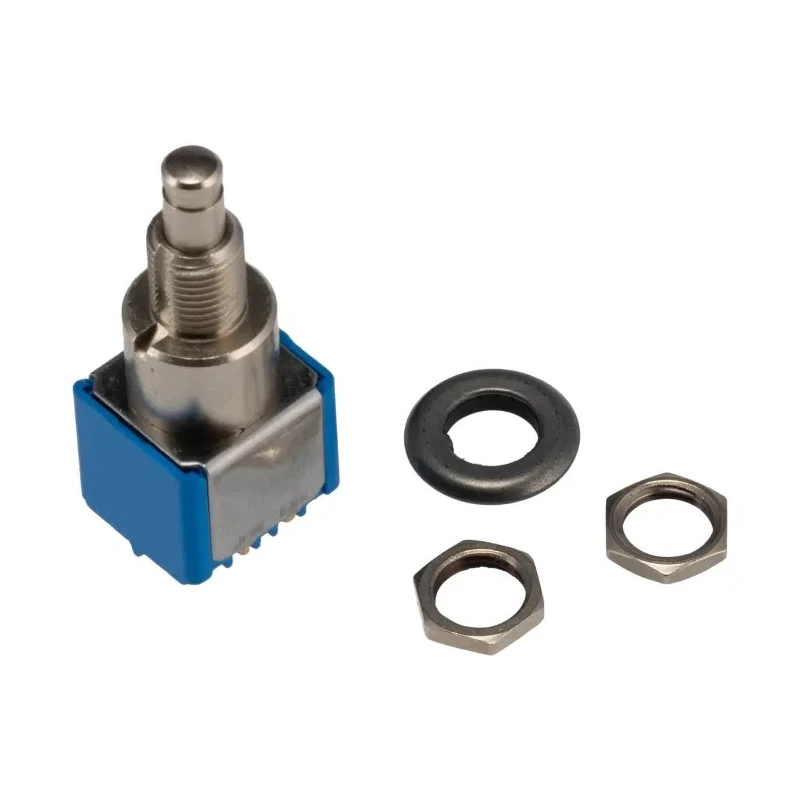

APEM 8000 Series Miniature Momentary Push Button Switch, Panel Mount, 6.5 mm Cutout, DPDT, IP65, 30 V dc 8642ADBK

Name: APEM 8000 Series Miniature Momentary Push Button Switch, Panel Mount, 6.5 mm Cutout, DPDT, IP65, 30 V dc 8642ADBK
Brand: APEM
SKU: 351597
Price: 2884.97 INR
Availability: InStock



Category Push Button Switches Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Model	8642ADBK
IP Rating	IP65
Mount Type	Panel
Series	8000
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Switch Configuration	On-Mom, On-On
Insulation resistance	1000 MOhm @ 500 V dc
Minimum Operating Temperature	-40°C
Panel Cutout Size	6.5 mm
Terminal type	Solder
Standards/Approvals	RoHS
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	692-8437Brand: APEMManufacturers Part No.: 8642ADBK
Switch Operation	Momentary
Contact DC Voltage	30V dc
Actuator Style	Plunger
Switch Contact Current	400mA
Electrical Life	30000 cycles
Stock No	692-8434 is a DPDT Latching switch

Key Features

The switch features a plunger-style actuator and is IP65 rated for dust and water resistance.
It supports a contact DC voltage of 30 V dc and a switch contact current of 400 mA.
Operates reliably within a temperature range of -40°C to 85°C.
Constructed with a stainless steel body and epoxy sealed terminals for durability.
The switch offers an electrical life of 30,000 cycles ensuring long-term functionality.
It complies with RoHS standards for environmental and safety assurance.
Terminal type is solder, facilitating secure electrical connections.
Designed for on-momentary and on-on switch configurations for versatile control.

Product Description

APEM 8642ADBK is a high-quality miniature push button switch from the 8000 Series, engineered for industrial and control panel applications requiring reliable momentary switching.

The switch is panel mounted with a 6.5 mm cutout and features a sturdy plunger actuator. It has a Double Pole Double Throw (DPDT) contact configuration, enabling control of two separate circuits simultaneously.

With an IP65 rating, the switch provides excellent protection against dust ingress and water jets, making it suitable for harsh industrial environments. The device operates efficiently at voltages up to 30 V dc and a current rating of 400 mA.

Manufactured with a stainless steel body and epoxy sealed terminals, it ensures robustness and long service life. The nickel plated brass actuator supports interchangeable colored caps for customization. The switch is compliant with RoHS directives, guaranteeing the absence of hazardous substances.

Operating temperature range is from -40°C to 85°C, supporting a wide variety of ambient conditions found in industrial settings. The switch features a plunger actuator style for easy actuation. It offers an electrical life expectancy of 30,000 cycles ensuring durability.

The terminal type is solder, providing secure connectivity. The switch supports On-Momentary and On-On configurations for flexible control schemes. The IP65 rating ensures ingress protection suitable for many industrial applications.

This miniature push button switch is ideal for use in industrial automation, electrical control systems, machinery control panels, and instrumentation. Its compact size and robust design meet the requirements for precision and reliability in commercial and manufacturing environments.

France is the country of origin, reflecting the quality and manufacturing standards of APEM products. Explore the complete APEM 8000 Series for various other Push Button Switches and related components available at EnvMart.
