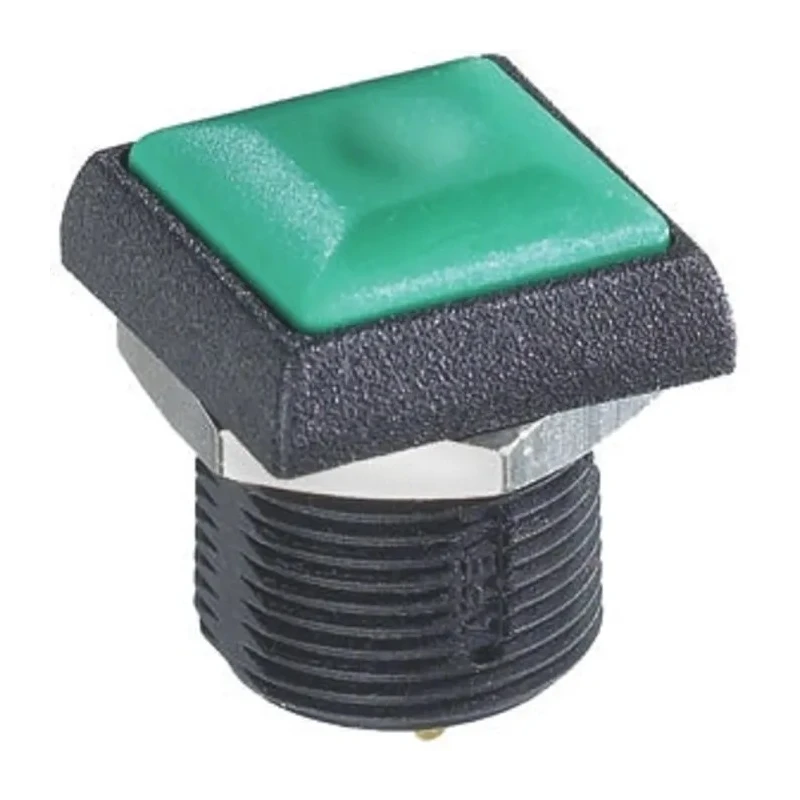

APEM IR Series Push Button Switch Momentary Panel Mount 14.8 mm Cutout SPST IP67 48 V dc 250 V ac IRC3S432

Name: APEM IR Series Push Button Switch Momentary Panel Mount 14.8 mm Cutout SPST IP67 48 V dc 250 V ac IRC3S432
Brand: APEM
SKU: 351324
Price: 3952.48 INR
Availability: InStock



Category Push Button Switches Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Model	IRC3S432
IP Rating	IP67
Mount Type	Panel
Series	IR
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	NC/NO, NO, NC
Minimum Operating Temperature	-40°C
Panel Cutout Size	14.8 mm
Terminal type	Solder
Standards/Approvals	RoHS
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	691-1509Brand: APEMManufacturers Part No.: IRC3S432
Switch Operation	Momentary
Actuator Colour	Green
Contact DC Voltage	48V dc
Actuator Style	Button
Switch Contact Current	200mA
Contact AC Voltage	250V ac
Legend	Plunger Marking Available on Request (Symbol 12 mm max)

Key Features

The actuator colour is green and has a button style for easy operation.
The switch supports momentary operation for temporary circuit control.
It is suitable for AC voltage up to 250 V and DC voltage up to 48 V.
The terminal type is solder and the switch current rating is 200 mA.
The operating temperature range is from -40°C to 85°C for robust industrial use.
The switch is RoHS compliant, ensuring environmentally friendly manufacturing standards.
IP67 rating provides dust-tight and water-resistant protection for harsh environments.
Contact configurations include NC/NO with plunger marking available on request.

Product Description

APEM IRC3S432 is a high-quality push button switch from the IR Series, designed for momentary operation with panel mounting. It features a 14.8 mm cutout size, green button actuator, and is ideal for applications requiring reliable momentary control.

This switch supports single-pole single-throw (SPST) contact configuration and is rated for contact voltages of 48 V DC and 250 V AC with a current rating of 200 mA. Its solder terminal type allows secure connections in electrical circuits.

The device is rated IP67, making it resistant to dust and immersion in water, suitable for demanding industrial, automation, manufacturing, and HVAC environments. Operating from -40°C to 85°C, it ensures dependable performance in varying thermal conditions.

APEM IR Series switches comply with RoHS standards, supporting environmentally responsible use. The switch offers NC/NO configurations with plunger marking options available upon request to assist with panel identification.

The actuator colour is green and has a button style for easy operation. The switch supports momentary operation for temporary circuit control. It is suitable for AC voltage up to 250 V and DC voltage up to 48 V. The terminal type is solder and the switch current rating is 200 mA.

The operating temperature range is from -40°C to 85°C for robust industrial use. The switch is RoHS compliant, ensuring environmentally friendly manufacturing standards. IP67 rating provides dust-tight and water-resistant protection for harsh environments.

Contact configurations include NC/NO with plunger marking available on request.

Ideal for industrial automation systems, control panels, electrical equipment, and machinery, this push button switch ensures reliable momentary switching performance and longevity. The IP67 enclosure rating and robust operating temperature range make it suitable for harsh environments.
