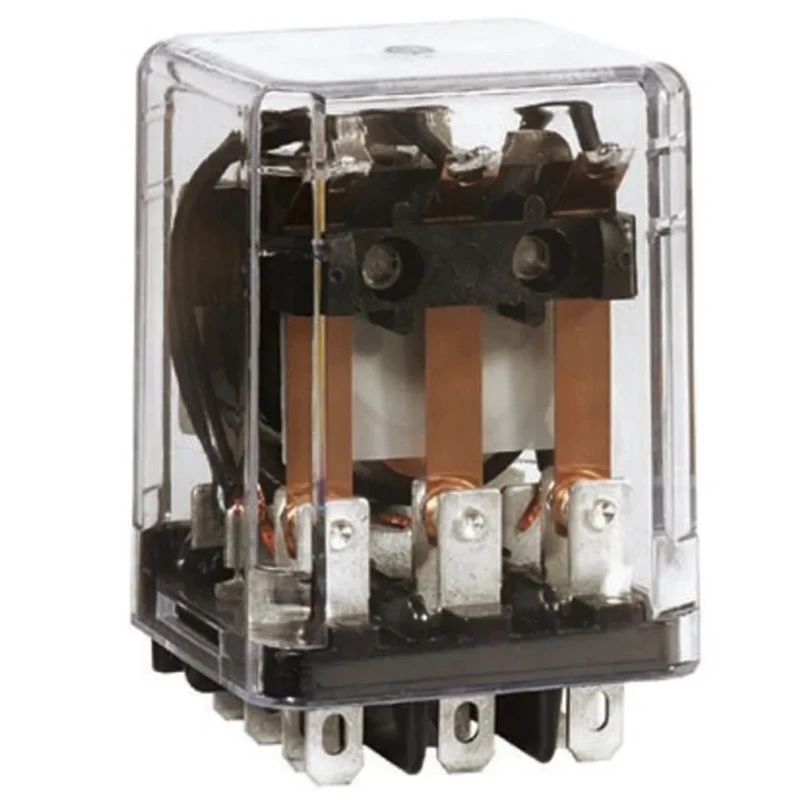

TE Connectivity Panel Mount Power Relay, 120V AC Coil, 10A Switching Current, 3PDT KUP-14A55-120 9-1393117-9
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 55.6mm |
| Length | 73.7mm |
| Model | KUP-14A55-120 9-1393117-9 |
| Width | 35.7mm |
| Mount Type | Panel Mount |
| Contact Material | Silver Alloy |
| Series | KUP |
| Maximum Operating Temperature | 45°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 10A |
| Terminal type | Quick Connect |
| Standards/Approvals | CSA, REACH, RoHS, UL |
| Pay online using | Or choose to pay later via bank transfer |
| Coil Resistance | 1.7kΩ |
| Coil Voltage | 120V ac |
| Switching AC Voltage | 250V ac |
Key Features
- Features a coil voltage of 120V AC for reliable power control.
- Supports a 3PDT contact configuration for versatile switching.
- Provides a switching current rating of 10A and switching AC voltage up to 250V AC.
- Panel mount design with quick connect solder terminals enables easy installation.
- Operates across a temperature range from -45°C to 45°C with Class B coil insulation.
- Constructed using silver alloy contact material for durability and conductivity.
- Compact dimensions of 73.7mm length, 55.6mm height, and 35.7mm width for efficient panel integration.
- Complies with CSA, REACH, RoHS, and UL standards ensuring safety and environmental compliance.
Product Description
TE Connectivity KUP-14A55-120 9-1393117-9 Panel Mount Power Relay features a 120V AC coil designed to meet robust industrial and laboratory electrical control needs. Its 3PDT (Triple Pole Double Throw) contact configuration allows for multiple circuits control in automation and control systems.
This relay supports a switching current of 10A with switching AC voltage of up to 250V AC. Its panel mount format includes quick connect terminals (4.75mm) that facilitate rapid installation and maintenance.
Built with silver alloy contacts, the relay ensures excellent conductivity and long service life. The device operates efficiently across harsh environments, withstanding temperatures from -45°C to 45°C, protected by Class B coil insulation.
Physically compact, the relay measures 73.7mm in length, 55.6mm in height, and 35.7mm in width, making it ideal for panel assembly where space is constrained. It comes with an enclosed bracket mounting case, enhancing mechanical stability in industrial setups.
Safety and quality certifications include CSA, REACH, RoHS, and UL, confirming compliance with industrial and environmental standards suitable for manufacturing, HVAC, and electrical distribution panels.
Features a coil voltage of 120V AC for reliable power control. Supports a 3PDT contact configuration for versatile switching. Provides a switching current rating of 10A and switching AC voltage up to 250V AC. Panel mount design with quick connect solder terminals enables easy installation.
Operates across a temperature range from -45°C to 45°C with Class B coil insulation. Constructed using silver alloy contact material for durability and conductivity. Compact dimensions of 73.7mm length, 55.6mm height, and 35.7mm width for efficient panel integration.
Complies with CSA, REACH, RoHS, and UL standards ensuring safety and environmental compliance. Enclosed relay with bracket mounting case suitable for industrial mounting requirements. Explore EnvMart's comprehensive selection of industrial Power Relays designed to meet demanding operational requirements across diverse sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay features a coil voltage of 120V AC, designed for reliable power control.
It has a switching current rating of 10A, suitable for various applications.
The maximum switching AC voltage for this relay is 250V AC.
This model supports a 3PDT (Triple Pole Double Throw) contact configuration, allowing for versatile switching capabilities.
The relay measures 73.7mm in length, 55.6mm in height, and 35.7mm in width, making it compact for panel integration.
It features quick connect solder terminals, which facilitate easy installation and maintenance.
This unit operates efficiently across a temperature range from -45°C to 45°C.
The contacts are constructed from silver alloy, ensuring good conductivity and durability.
It complies with CSA, REACH, RoHS, and UL standards, ensuring safety and environmental compliance.
This relay features a panel mount design, which is suitable for various industrial applications.
The coil resistance is 1.7kΩ, which is an important specification for its operation.
This model is part of the KUP series from TE Connectivity.
