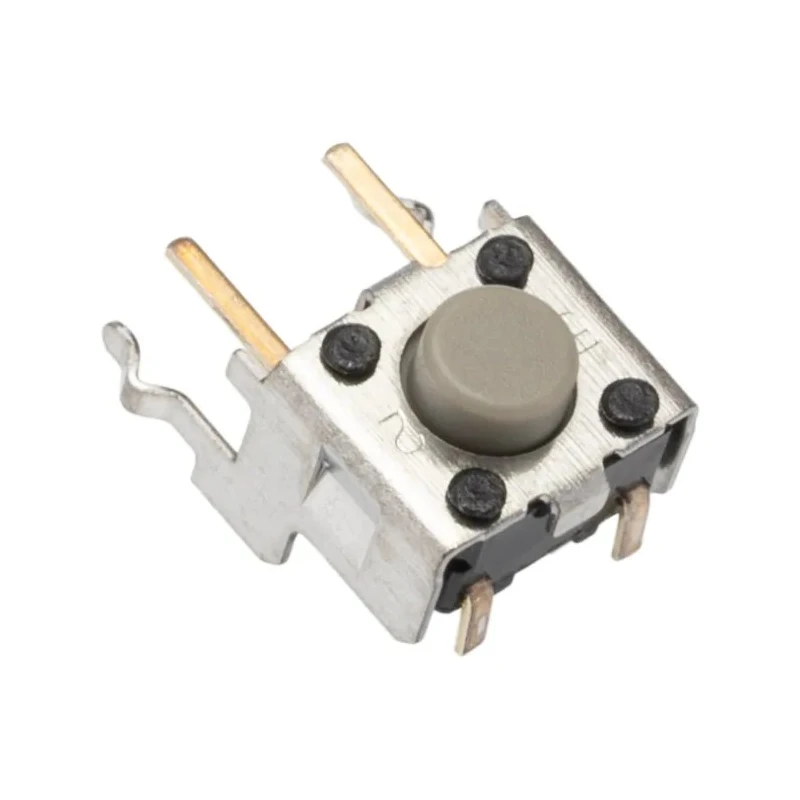

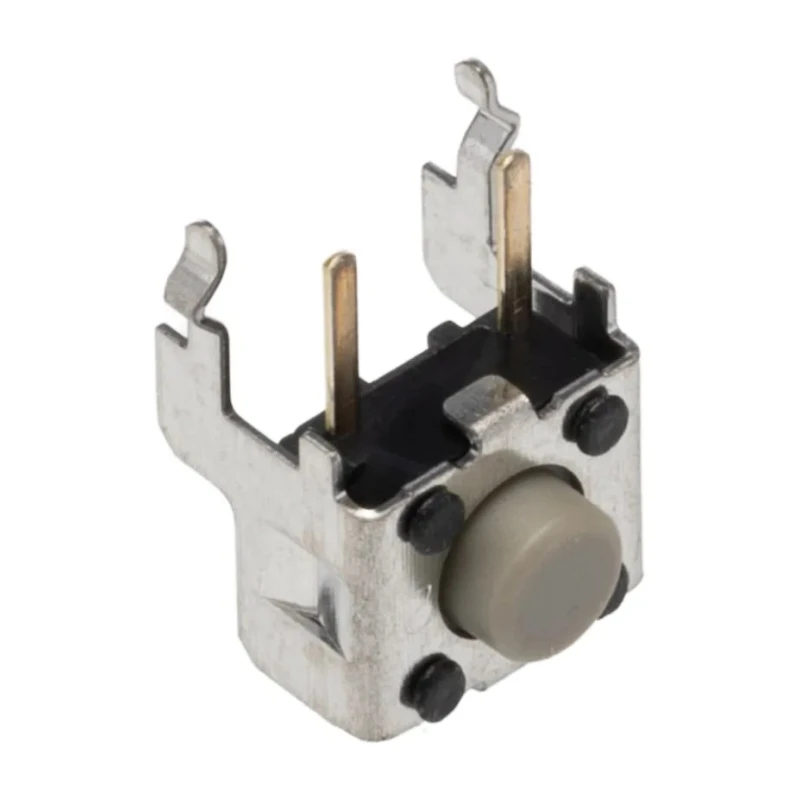

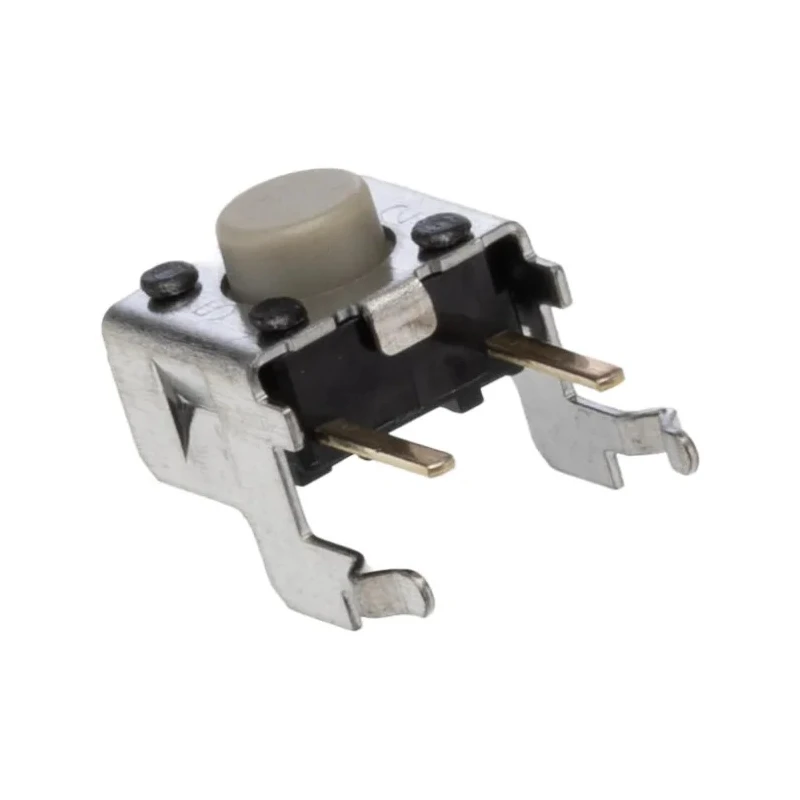

Omron Tactile Switch Plunger SPST 50mA 500V AC 24V DC Grey Actuator 1.6mm Through Hole B3F-3122
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 3.85mm |
| Length | 6.25mm |
| Model | B3F-3122 |
| IP Rating | IP00 |
| Width | 7.3mm |
| Mount Type | Through Hole |
| Series | B3F |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST NC |
| Minimum Operating Temperature | -25°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Actuator Colour | Grey |
| Actuator Length | 1.6mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Plunger |
| Switch Contact Current | 50mA |
| Operating Force | 1.47N |
| Mechanical Life | 300000Operations |
| Contact AC Voltage | 500V ac |
| TE Connectivity Red Tactile Switch, SPST 50 mA @ 24 V dc 1.24mmBrand | TE Connectivity |
Key Features
- The switch configuration is SPST normally closed (NC) type providing dependable on/off functionality.
- Compact dimensions with length 6.25 mm, width 7.3 mm, and height 3.85 mm suit space-constrained applications.
- Mechanical life rating of 300,000 operations ensures lasting durability in industrial environments.
- Operating temperature range from -25°C to 70°C supports varied climatic conditions.
- Complies with RoHS standards for hazardous substances conformity.
- Actuator force is 1.47 N, providing tactile feedback on actuation.
- Ideal for electrical and automation control circuits, keyboards, and industrial instrumentation.
Product Description
Omron B3F-3122 tactile switch is a high-quality plunger type switch designed for through-hole mounting. It offers a SPST (Single Pole Single Throw) normally closed switch contact configuration rated for 50 mA at 24 V DC and 500 V AC, making it suitable for low power signal switching tasks.
The actuator is gray colored with a 1.6 mm length plunger to provide precise tactile feedback. The compact size with dimensions 6.25 mm in length, 7.3 mm width, and 3.85 mm height allows installation in equipment with limited space.
This tactile switch is engineered for durability with a mechanical life expectancy of 300,000 operations. It operates across a wide temperature range from -25°C to 70°C, facilitating use in industrial, electrical automation, and control applications where temperature variations occur.
Compliance with RoHS standards ensures environmental safety by restricting hazardous substances. The operating force of 1.47 N gives users reliable feedback when the switch is actuated. Designed and manufactured in Japan, this switch guarantees quality and performance.
This product finds extensive use in keyboards, keypads, industrial instrumentation, and other electrical control systems requiring reliable tactile switching. Its through-hole mount style supports secure PCB installation.
The switch configuration is SPST normally closed (NC) type providing dependable on/off functionality. Compact dimensions with length 6.25 mm, width 7.3 mm, and height 3.85 mm suit space-constrained applications. Mechanical life rating of 300,000 operations ensures lasting durability in industrial environments.
Operating temperature range from -25°C to 70°C supports varied climatic conditions. Complies with RoHS standards for hazardous substances conformity. Actuator force is 1.47 N, providing tactile feedback on actuation. Ideal for electrical and automation control circuits, keyboards, and industrial instrumentation.
Discover more options within the EnvMart Tactile Switch category curated for industrial, laboratory, and electrical engineering applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact configuration of this switch is SPST (Single Pole Single Throw) normally closed (NC).
The dimensions are 6.25 mm in length, 7.3 mm in width, and 3.85 mm in height.
The mechanical life rating is 300,000 operations, ensuring durability in various applications.
It operates within a temperature range of -25°C to 70°C, making it suitable for diverse environments.
The actuator force is 1.47 N, providing tactile feedback upon actuation.
The maximum AC voltage rating for this switch is 500 V AC.
The DC voltage rating is 24 V DC, suitable for low power signal switching tasks.
This switch uses a through-hole mounting style for secure PCB installation.
Yes, it complies with RoHS standards for hazardous substances conformity.
The actuator is grey in color, designed for easy identification and use.
This switch is manufactured in Japan, ensuring quality and performance.
It is ideal for applications in electrical and automation control circuits, keyboards, and industrial instrumentation.
