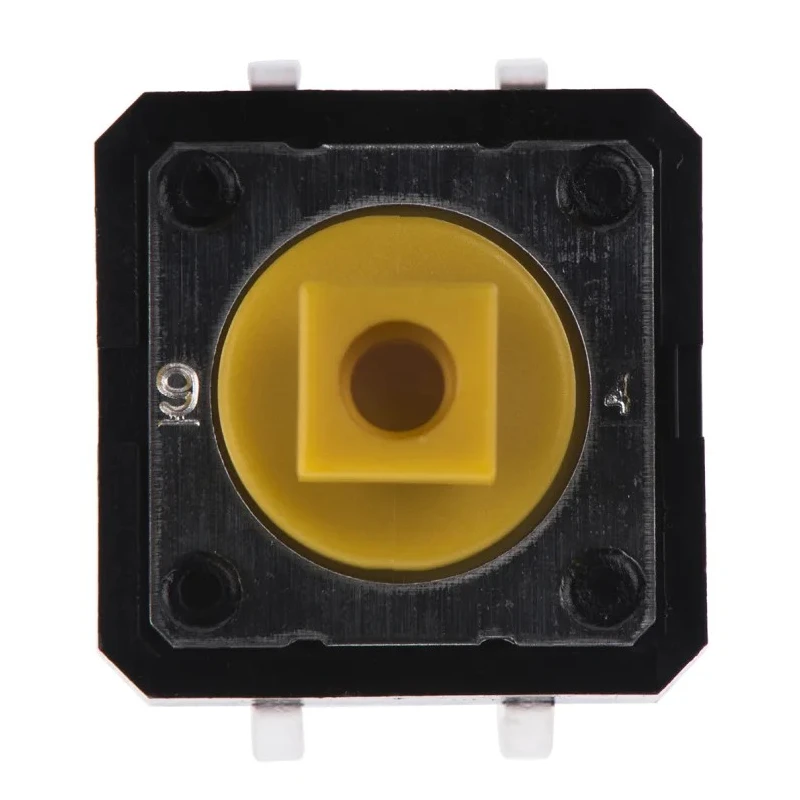

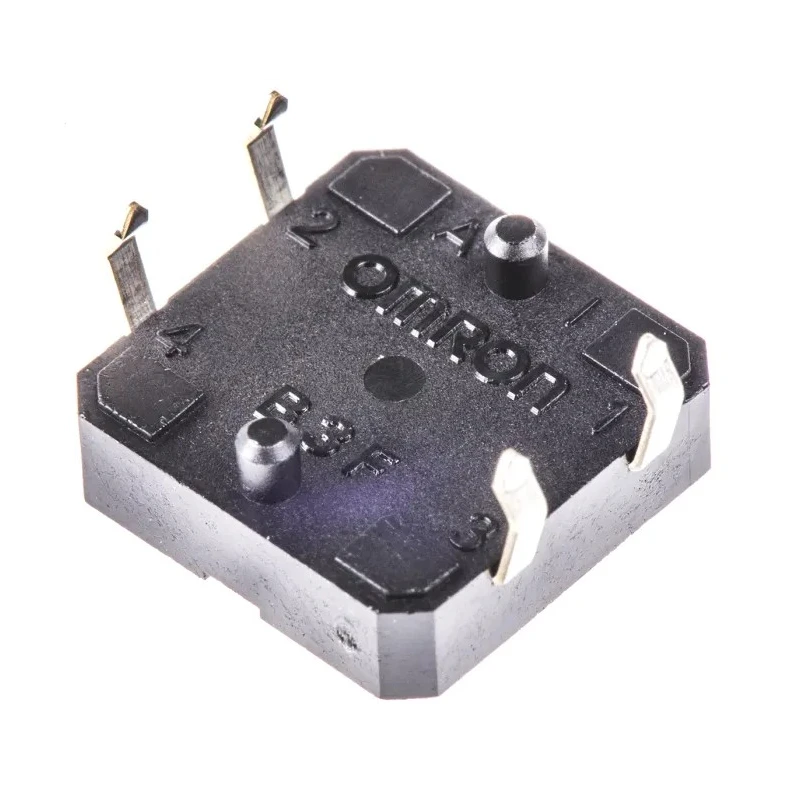

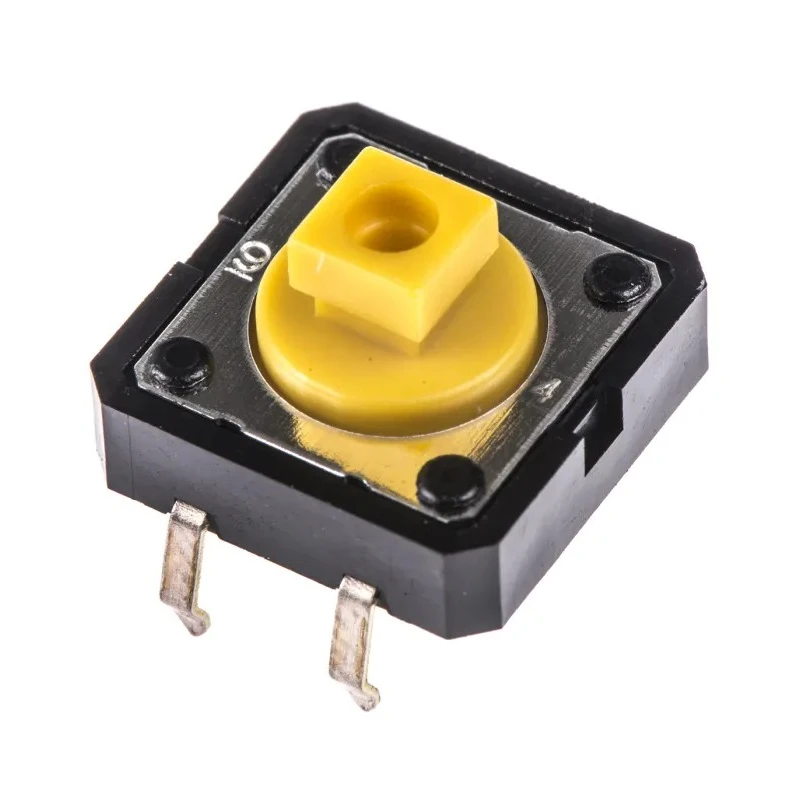

Omron Yellow Tactile Switch Plunger 3 mm SPST 50mA 24V DC Through Hole IP00 B3F IP00
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 7.3mm |
| Length | 12mm |
| Model | IP00 |
| IP Rating | IP00 |
| Width | 12mm |
| Mount Type | Through Hole |
| Series | B3F |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST-NO |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Push-Push |
| Actuator Colour | Yellow |
| Actuator Length | 3mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Plunger |
| Actuator Orientation | Vertical |
| Switch Contact Current | 50mA |
| Operating Force | 2.55N |
| Mechanical Life | 1000000Cycles |
| Contact AC Voltage | 24V |
Key Features
- The switch features a yellow plunger actuator with a 3 mm length for precise control.
- SPST contact configuration supports 50mA current at 24V DC.
- Designed for through hole mounting on printed circuit boards.
- Operates reliably within a temperature range from -25°C to +70°C.
- Mechanical life of 1,000,000 cycles ensures durability and long-term use.
- Compact dimensions of 12 mm length, 12 mm width, and 7.3 mm height for space-saving designs.
- Non-illuminated switch with a vertical plunger style actuator.
- RoHS compliant and rated with an IP00 ingress protection level.
Product Description
Omron IP00 Yellow Tactile Switch Plunger 3 mm SPST 50mA 24V DC Through Hole switch offers high reliability and precise tactile feedback for industrial and electronic devices. This switch belongs to the B3F series with standard tactile characteristics, ideal for applications requiring a compact, durable, and responsive control mechanism.
The push-push operation with a yellow plunger actuator of 3 mm provides tactile confirmation and accurate actuation, suitable for keyboards, keypads, and control interfaces in industrial automation.
Key technical features include a SPST contact configuration rated at 50mA and 24V DC, ensuring safe operation in low-voltage circuits. It has a through hole mount type that facilitates reliable soldered PCB connections.
Designed to operate within -25°C to +70°C and offering a mechanical lifespan of 1,000,000 cycles, the switch ensures longevity in harsh environments. Its dimensions (12mm x 12mm x 7.3mm) make it compatible with compact layouts.
This tactile switch complies with RoHS standards and has an IP00 rating, meaning it is not protected against ingress of solid or liquid but suits typical electronic enclosure uses.
The push-push actuator style offers repeatable tactile feedback for effective user interface control. Non-illuminated actuator color is yellow, enhancing visual identification and usability. Vertical actuator orientation supports ergonomic and space-optimized designs.
The switch's compact size and robust operating force of 2.55N provide comfortable and reliable user interaction. Applications encompass industrial automation, consumer electronics, and other electrical control systems requiring precise tactile switches.
Country of origin: China. Explore more Tactile Switches and electronic components in the Electronics & Electricals section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features an SPST (Single Pole Single Throw) contact configuration, allowing for reliable on/off operation.
It is rated for a maximum current of 50mA and a contact DC voltage of 24V.
This model has compact dimensions of 12 mm in length, 12 mm in width, and 7.3 mm in height.
The switch operates reliably within a temperature range of -25°C to +70°C.
It has a mechanical life rated at 1,000,000 cycles, ensuring longevity in use.
This model is designed for through hole mounting, which facilitates reliable soldered connections on printed circuit boards.
The switch features a plunger actuator style with a yellow color, providing tactile feedback and visual identification.
The operating force for this switch is 2.55N, allowing for comfortable user interaction.
Yes, this model complies with RoHS standards, ensuring it meets environmental regulations for hazardous substances.
The switch has an IP00 ingress protection rating, indicating it is not protected against solid or liquid ingress.
This model is suitable for applications in industrial automation, consumer electronics, and other electrical control systems requiring precise tactile switches.
It features a solder terminal type, which is standard for through hole mounting on PCBs.
