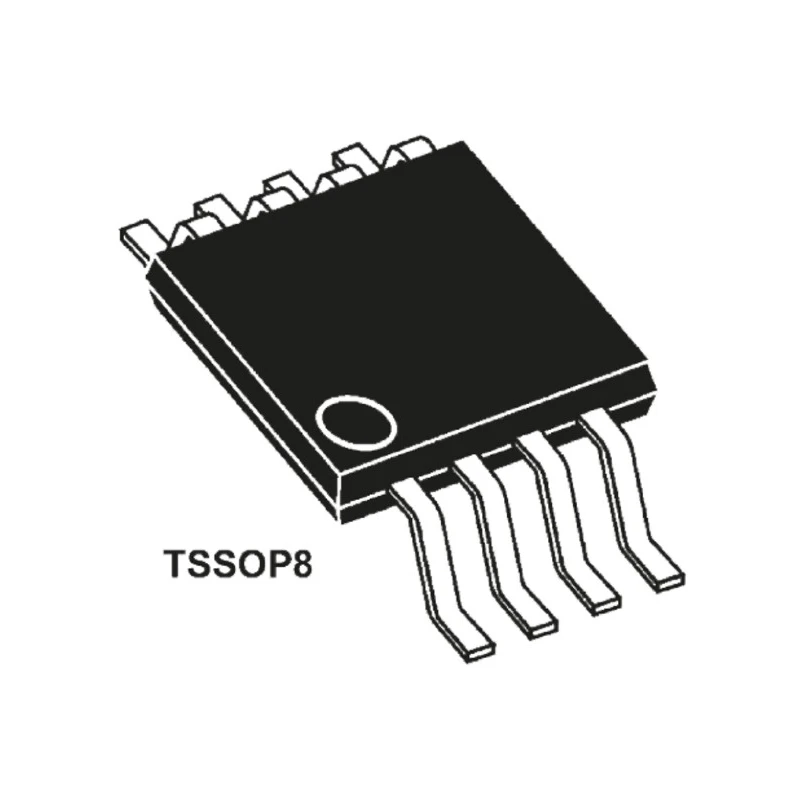

STMicroelectronics 16 kB Serial EEPROM Surface Mount 8-Pin TSSOP 900 ns 1 MHz M24C16-RDW6TP

STMicroelectronics M24C16-RDW6TP is a 16 kB Serial EEPROM designed for applications requiring compact non-volatile memory with fast access and low power consumption. Its 8-pin TSSOP package supports surface mounting, making it ideal for modern electronics assembly.

This EEPROM operates within a voltage range of 1.8 V to 5.5 V, enabling versatility across various power supplies. The maximum clock frequency of 1 MHz ensures rapid data transactions, supported by a maximum random access time of 900 ns, facilitating efficient memory read/write cycles.

The device features a 2K x 8 bit memory organization with 8 bits per word, suitable for storing configuration settings, calibration data, or other critical application parameters. It consumes only 3 mA of supply current during operation, optimizing energy efficiency for embedded systems.

With a wide operating temperature range from -40°C to 85°C and compliance with the Automotive Standard AEC-Q100, this EEPROM is reliable for industrial, automotive, and commercial applications where environmental resilience is paramount.

Physical dimensions include a length of 3.1 mm, height of 1.2 mm, and width of 169 mm, supporting compact PCB layouts. The data retention capability extends up to 200 years, ensuring long-term stability of stored information.

STMicroelectronics M24C16-RDW6TP is compatible with all I²C bus interface modes, allowing seamless integration into existing communication protocols employed in various industrial, laboratory, embedded, and manufacturing systems.

Memory size of 16 kB with 2K x 8 bit organization. Operates with a supply voltage range of 1.8 V to 5.5 V. Maximum clock frequency of 1 MHz for rapid data access. Low supply current consumption of 3 mA. Wide operating temperature range from -40°C to 85°C.

Compliant with Automotive Standard AEC-Q100 for reliability. Compact dimensions: 3.1 mm length, 1.2 mm height, and 169 mm width. Data retention up to 200 years ensuring long-term reliability. Surface mount package TSSOP with 8 pins for easy PCB integration.

Compatible with all I²C bus interface modes for flexible use.

This product is essential for electronic designs requiring non-volatile memory storage, signal processing, and embedded system configuration. It is suitable for industries including automotive electronics, consumer devices, industrial controllers, and data logging systems.
