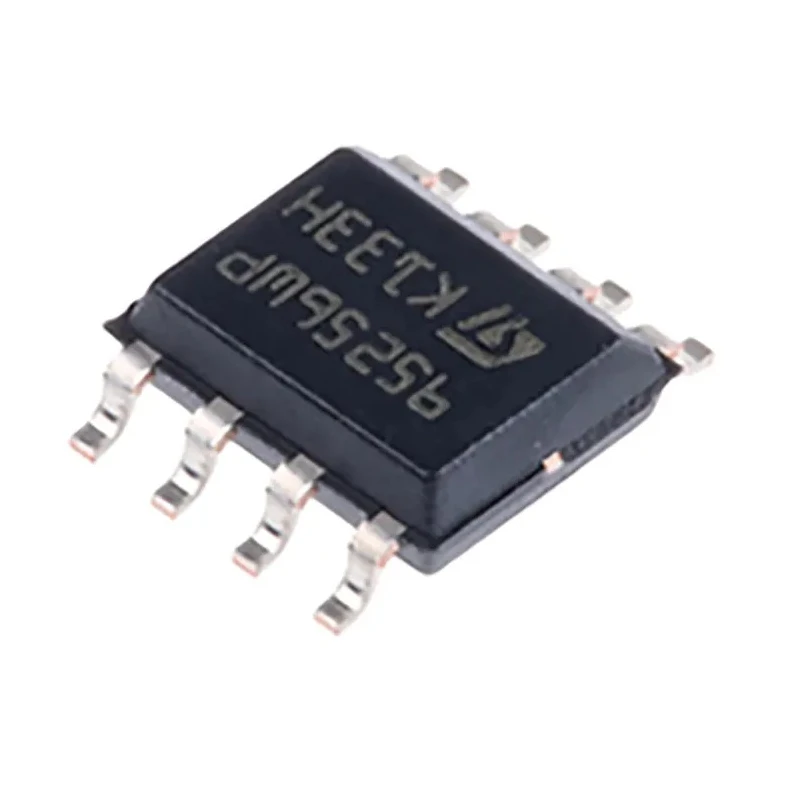

STMicroelectronics 256 kB Serial EEPROM Surface Mount SOIC 8-Pin 60 ns 20 MHz M95256-WMN6TP

STMicroelectronics M95256-WMN6TP is a high-performance 256 kB serial Electrically Erasable Programmable Read-Only Memory (EEPROM) designed for use in industrial, automotive, and consumer electronics applications requiring reliable non-volatile memory storage.

This device supports the Serial Peripheral Interface (SPI), enabling seamless communication with microcontrollers and digital systems. It features a fast access time of 60 ns and a maximum clock frequency of 20 MHz, ensuring efficient read and write operations.

The 8-pin SOIC surface mount package offers compact dimensions with 5 mm length, 1.75 mm height, and an unusually wide 150 mm width, optimizing board space usage in dense layouts.

Operating over a wide temperature range of -40°C to 85°C, the M95256-WMN6TP is suitable for harsh environments including automotive systems, where it adheres to the AEC-Q100 standard, guaranteeing quality and robustness.

With a data retention period of 200 years and a very low supply current of 5.3 mA, this serial EEPROM promises long-lasting performance with minimal power consumption. The memory organization is 32768 words of 8 bits each, supporting standard 8-bit word operations.

Electrical characteristics include a minimum supply voltage of 2.5 V and a maximum of 5.5 V, allowing for flexible use across different circuit voltage levels. Its maximum random access time of 60 ns facilitates rapid data retrieval critical in time-sensitive applications.

256 kB serial EEPROM memory for reliable non-volatile data storage. SPI interface for efficient serial communication and system integration. Compact 8-pin SOIC package designed for surface mount applications. Wide operating temperature and automotive grade AEC-Q100 certification ensure reliable use in demanding environments.

Low supply current enhances power efficiency in battery-operated devices. Data retention up to 200 years for long-term archival storage.

This STMicroelectronics EEPROM is ideal for embedded systems, industrial controls, automotive electronics, and communication equipment requiring durable and compact memory solutions.
