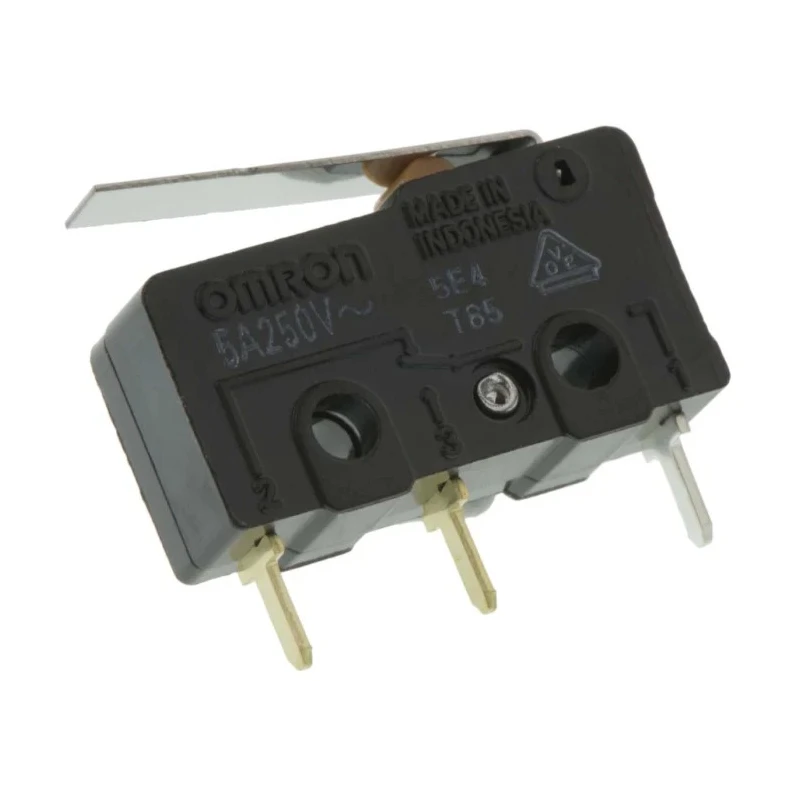

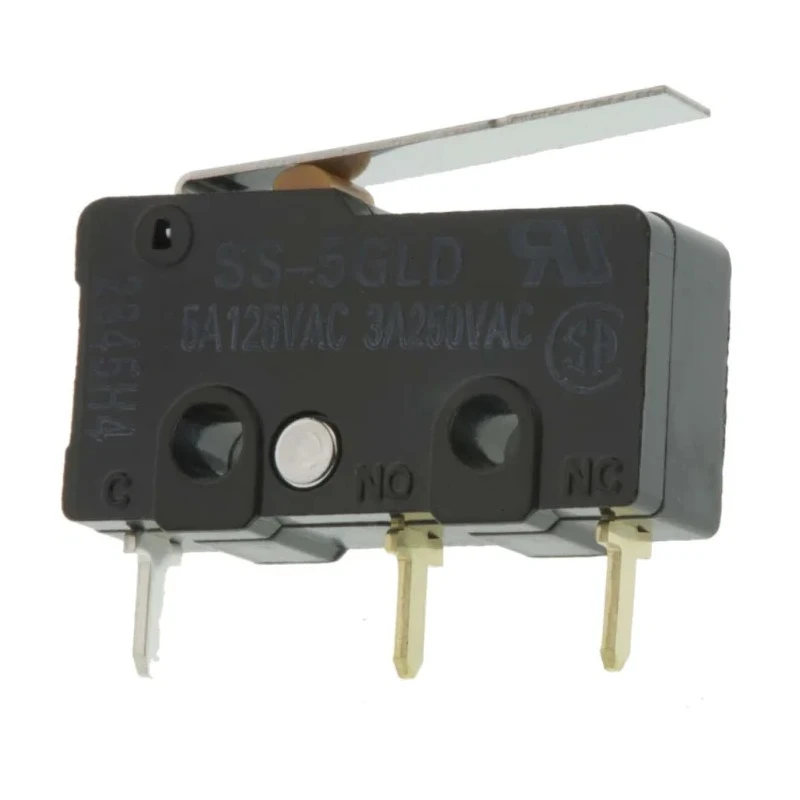

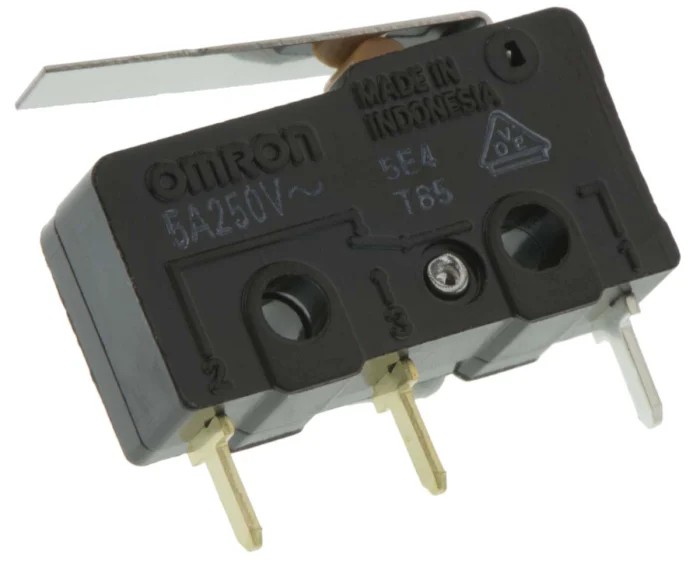

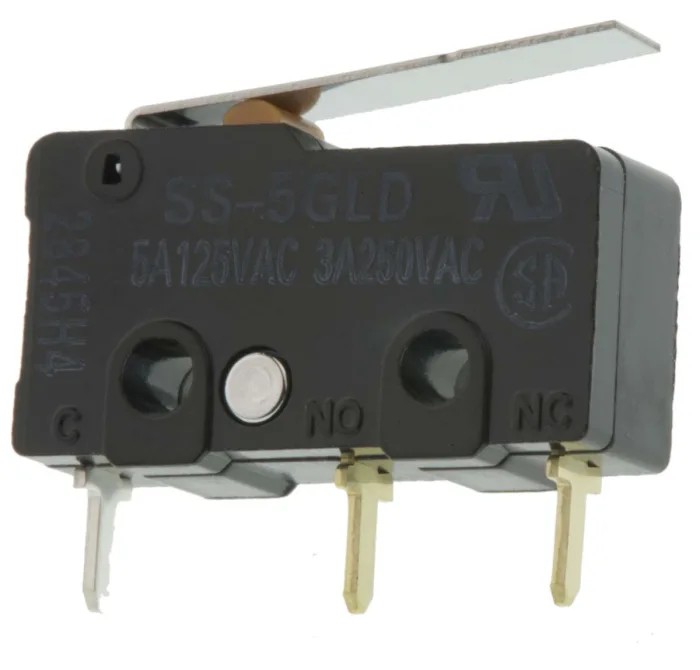

Omron Subminiature Hinge Lever Micro Switch, Through Hole Terminal, 5A, 250 V ac, SPDT, IP40 SS-5GLD

Omron SS-5GLD is a subminiature hinge lever micro switch designed for reliable switching performance in various industrial and commercial applications. Featuring a hinge lever actuator and through hole terminal type, this micro switch supports efficient mounting on printed circuit boards and precise actuation with an operating force of 0.49 Newtons.

This switch is rated for a switch contact current of 5 amperes at an AC voltage of 250 V, making it suitable for control circuits needing SPDT contact configuration. The device is protected with an IP40 ingress rating, safeguarding against ingress of solid objects larger than 1 mm but not liquids, suitable for controlled indoor environments.

Engineered for durability, the SS-5GLD supports a mechanical life expectancy of 30 million operations, ensuring longevity in high-cycle applications. It is operational over a temperature range from -25°C to 85°C, making it adaptable for diverse industrial environments.

The switch meets rigorous international certifications including CSA C22.2 No.55, VDE EN61058-1, RoHS compliance, and UL 1054 certification, confirming its safety and quality standards adherence. Manufactured in Indonesia under the SS series line, it delivers robust quality and consistent performance.

Applications include industrial automation, machinery control, HVAC systems, home appliances, and other electronic control circuits requiring reliable micro switching with low actuation force and compact design.

Features a hinge lever actuator for efficient switching operation. Designed with a through hole terminal for easy PCB mounting. Capable of handling a switch contact current of 5 amperes. Offers a contact configuration of SPDT for versatile circuit applications.

IP40 rated to protect against solid objects greater than 1 mm. Has an operating force of 0.49 Newtons for reliable actuation. Operates reliably within temperature range from -25°C to 85°C. Supports contact AC voltage up to 250 volts alternating current.

Subminiature type micro switch with mechanical durability up to 30 million operations. Complies with standards including CSA C22.2 No.55, VDE EN61058-1, RoHS, and UL 1054. Manufactured in Indonesia with the Series SS designation.

For reliable micro switch solutions in automation and electrical control applications, explore the Omron SS series Micro Switches available at EnvMart.
