Omron Sealed Subminiature Hinge Lever Micro Switch 100mA 30V dc SPDT IP67 D2SW-P01L1M

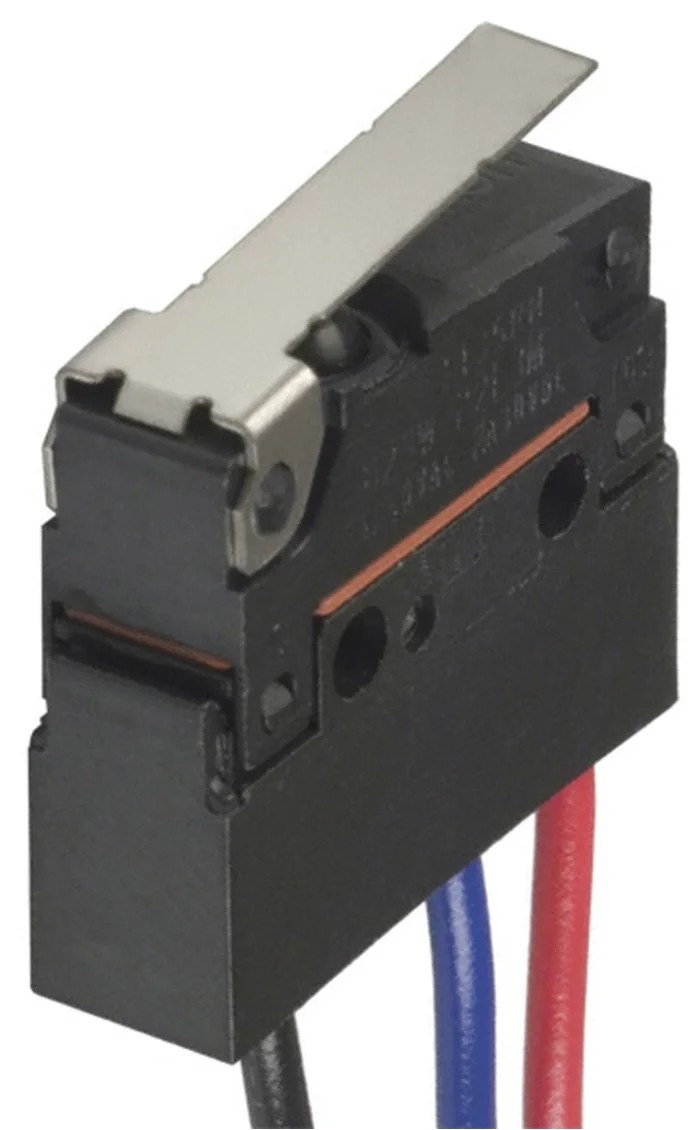

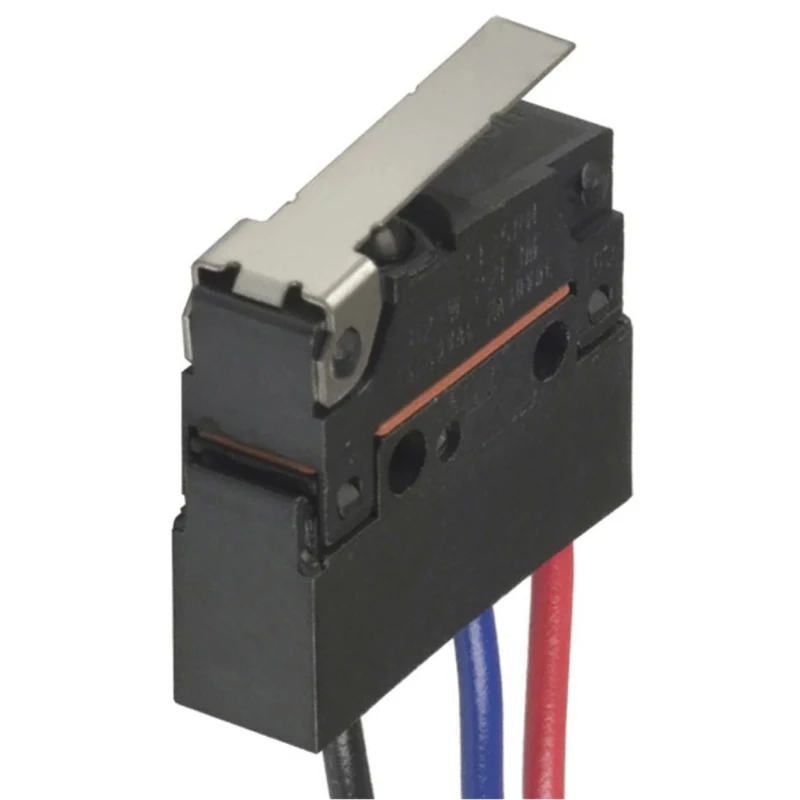

Omron D2SW-P01L1M is a high quality sealed subminiature hinge lever micro switch designed for robust industrial and automation uses. Featuring a compact monoblock construction, it provides excellent sealing performance to protect against dust, water spray, and harsh environments, complying with IEC IP67 standards when wire lead connected and IP50 when soldered or PCB mounted.

The switch is configured as SPDT (Single Pole Double Throw) with a contact rating of 3A at 30Vdc or 125Vac and 2A at 250Vac, supporting versatile electrical switching needs. It operates with a low force of 0.6 Newtons and can reliably function over a temperature range from -40°C to +80°C.

With an expected mechanical life of 1,000,000 operations, this micro switch is engineered for durability and longevity in demanding applications. The included pre-wired terminal simplifies wiring and installation, making it well suited for electrical equipment, control panels, machinery, and automation systems.

The product is RoHS compliant and manufactured in China, ensuring environmentally responsible production. Its compact width of 6.4 mm and the industry standard V4 housing allow compatibility with various designs.

Compact sealed miniature design ensures high sealing capability and durability. Pre-wired terminal allows straightforward installation and connection. Contact configuration is single pole double throw (SPDT) for versatile switching functions.

Rated for 100mA current at 30 V dc with IP67 ingress protection rating. Operates reliably within -40 to +80°C temperature range suitable for various environments. Low operating force of 0.6 N reduces actuation effort and wear.

Mechanical life expectancy of up to 1,000,000 operations ensures longevity. IEC IP50 rated for solder/pcb terminal and IEC IP67 for wire lead applications. Ideal for industrial, automation, and electrical applications requiring sealed and durable microswitches.

Manufactured in China under RoHS compliance ensuring environmental safety. Explore the full range of Omron Micro Switches on EnvMart for reliable electrical switching solutions.
