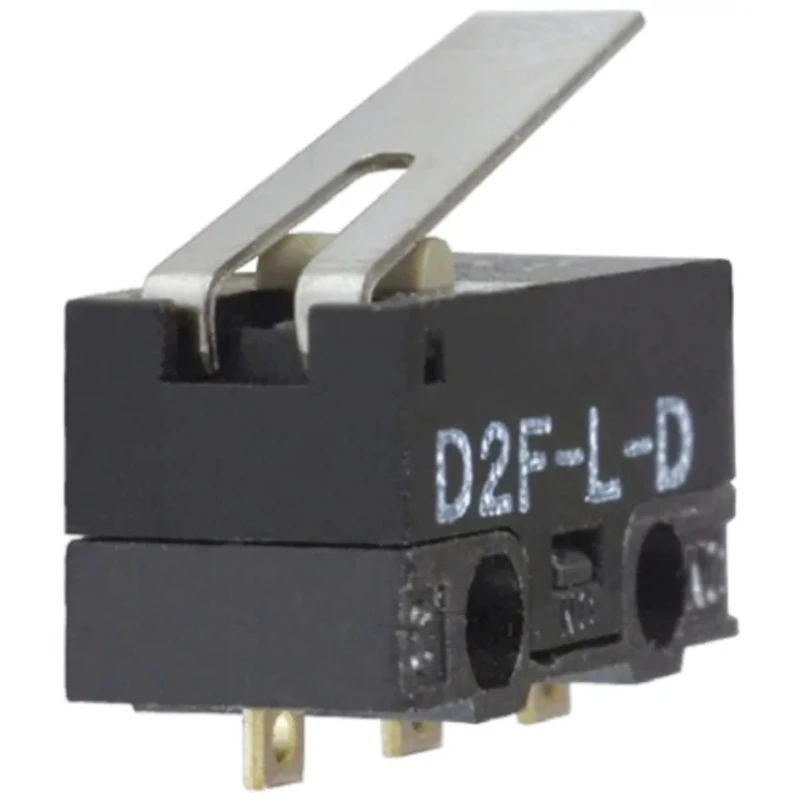

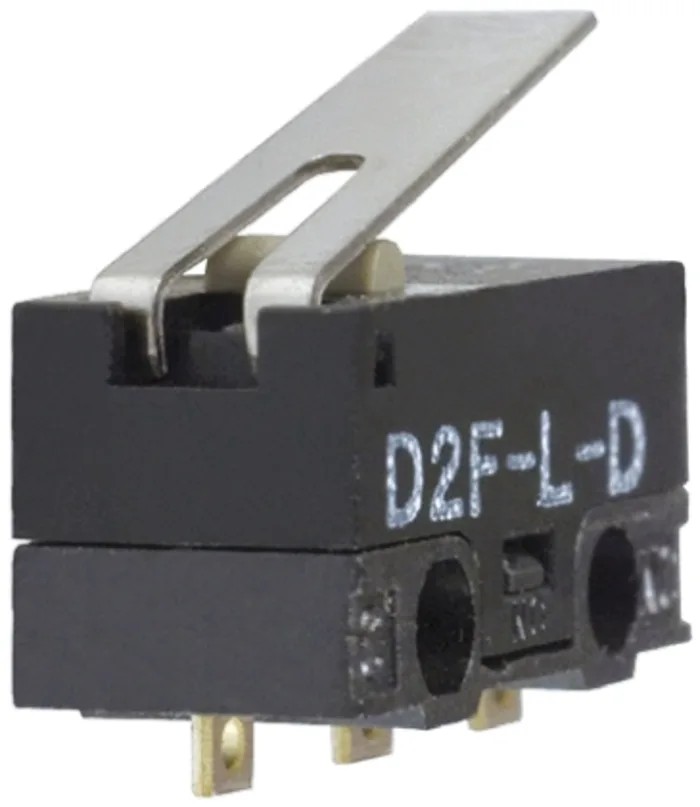

Omron Ultra Subminiature Hinge Lever Micro Switch, Solder Terminal, 3A Contact Current, 30 V dc, SPDT, IP40 D2F-L-D
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Length | 12.8mm |
| Model | D2F-L-D |
| IP Rating | IP40 |
| Approvals | UL & CSA |
| Series | D2F |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Actuator Type | Hinge Lever |
| Contact Rating | 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 3A |
| Operating Force | 0.78N |
| Mechanical Life | 1000000Operations |
| Microswitch Type | Ultra Subminiature |
| Aratas Hinge Lever Micro Switch, Solder Terminal, 3A, 30 V dc, SPDT, IP40Brand | Omron |
Key Features
- Features a hinge lever actuator for easy operation and low actuation force.
- Equipped with SPDT contact configuration.
- Has IP40 rated enclosure for protection against solid objects larger than 1 mm.
- Operates at a contact DC voltage of 30 V with guaranteed mechanical life of 1,000,000 operations.
- Designed to operate over a temperature range from -25°C to 65°C.
- Compact size with a length of 12.8 mm, ideal for space-constrained applications.
- Approved for safety by UL and CSA standards and compliant with RoHS regulations.
- Suitable for home appliances, audio, and communication equipment requiring precise switching.
Product Description
Omron D2F-L-D is an ultra subminiature micro switch featuring a hinge lever actuator and solder terminal connections. It is rated for a 3A contact current at 30 V dc, making it suitable for a range of precision switching applications in electrical and automation fields.
This micro switch utilizes a snap action mechanism ensuring rapid and reliable switching. The IP40 rating protects the switch against ingress of solid objects larger than 1 mm, making it appropriate for use in indoor environments where dust protection is necessary.
The device supports a wide operating temperature range from -25°C to 65°C and boasts a mechanical life expectancy of 1 million operations, providing long-term reliability and durability. Its compact 12.8 mm length facilitates integration into small and compact equipment designs.
The switch configuration is SPDT (Single Pole Double Throw), suitable for various circuit switching tasks requiring alternate connection paths. Safety standards like UL and CSA certifications along with RoHS compliance ensure that this device meets stringent quality and environmental standards.
Typical industrial use cases include home appliances, audio devices, communication equipment, and other precision electronic systems requiring dependable, repeatable switching performance with solder terminal connections for secure PCB mounting.
Features a hinge lever actuator providing efficient mechanical operation. Utilizes solder terminals for reliable electrical connections. Supports a maximum contact current of 3A at 125 Vac and 0.1A at 30 Vdc with gold contacts.
Compact ultra subminiature design suitable for space-limited applications. Endorsed by UL and CSA approvals, ensuring safety and compliance. Complies with RoHS environmental standards. Made in Japan, assuring high manufacturing quality.
Explore more Micro Switches and related components at EnvMart to find the perfect solution for your electrical and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a contact current rating of 3A at 125Vac with silver contacts and 0.1A at 30Vdc with gold contacts.
This model has an IP40 rating, providing protection against solid objects larger than 1 mm.
It operates over a temperature range from -25°C to 65°C.
It features a hinge lever actuator, which allows for easy operation with low actuation force.
The mechanical life expectancy is rated for 1,000,000 operations.
This micro switch has a compact length of 12.8 mm, making it suitable for space-constrained applications.
It utilizes solder terminals for reliable electrical connections.
It is approved by UL and CSA standards and complies with RoHS regulations.
The switch features an SPDT (Single Pole Double Throw) contact configuration.
It is suitable for use in home appliances, audio devices, communication equipment, and other precision electronic systems requiring dependable switching.
The operating force required is 0.78N.
This micro switch is made in Japan, ensuring high manufacturing quality.
