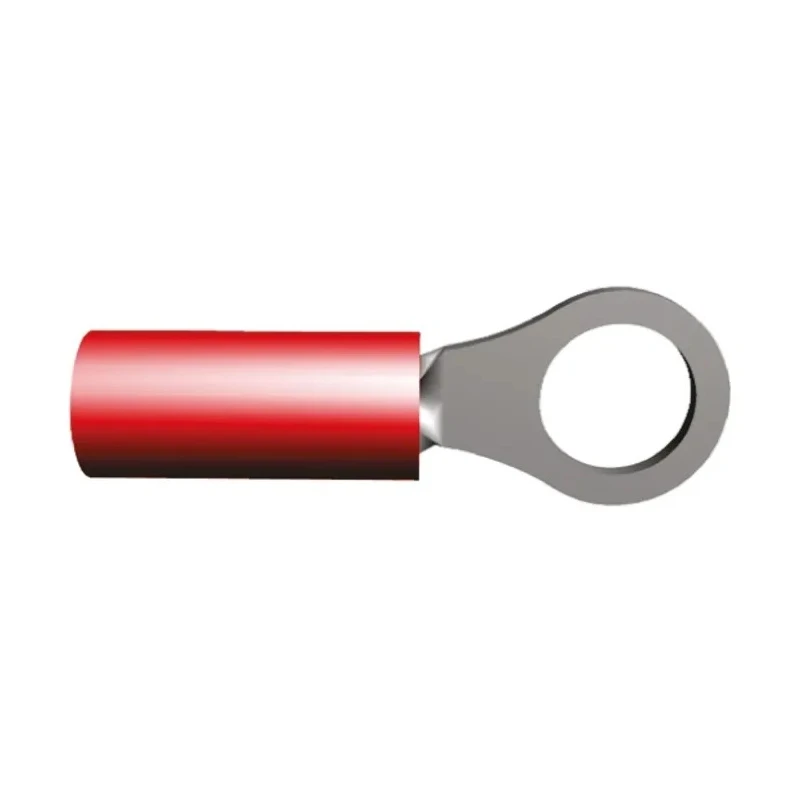

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 22 AWG 16 AWG Wire Size Nylon Insulation Red 320552

TE Connectivity 320552 PIDG Insulated Ring Terminal is engineered for reliable and durable electrical connections in various industrial and commercial applications. It supports wire sizes from 22 AWG to 16 AWG with a stud size of M5.

The terminal features a high conductivity copper body designed for maximum electrical efficiency. The wire barrel inside contains serrations that provide exceptional contact and tensile strength upon crimping. A copper sleeve inside the barrel enhances wire insulation support and prevents fraying of wire strands during installation.

An outer red nylon sleeve is color-coded for quick wire size identification, facilitating ease of use in high-volume production environments. The funnelled wire entry design streamlines wire insertion, allowing for efficient high-speed assembly processes.

This PIDG (Pre-Insulated Diamond Grip) terminal series is constructed to guarantee a uniform and reliable crimp, with specialized tool dies facilitating consistent crimp quality. The tin-plated copper contact provides enhanced corrosion resistance, making it suitable for environments where durability is critical.

Applications span a wide range including instrumentation control, lighting systems, power supplies, panel boxes, transportation equipment, lifting apparatus, motors, aerospace components, and household appliances.

The product complies with RoHS environmental standards and can operate reliably up to a maximum temperature of 105°C. Made in the United States, this ring terminal ensures quality and performance for demanding electrical connector requirements.

Constructed with high conductivity copper for effective electrical flow. Nylon red insulation sleeve enables easy wire size identification. Serrated wire barrel ensures maximum contact and tensile strength after crimping.

Compatible with wire sizes ranging from 22 AWG to 16 AWG. Designed for use with M5 stud size for secure terminal connections. Overall length of 20.24 mm and a thickness of 0.79 mm for compact applications. Tin-plated copper contact material provides corrosion resistance.

Meets RoHS standards for environmental compliance. Maximum operating temperature of 105°C ensures durability in demanding environments. Manufactured in the United States for quality assurance. Explore related TE Connectivity power connectors and Ring Terminals for your electrical component needs on EnvMart.
