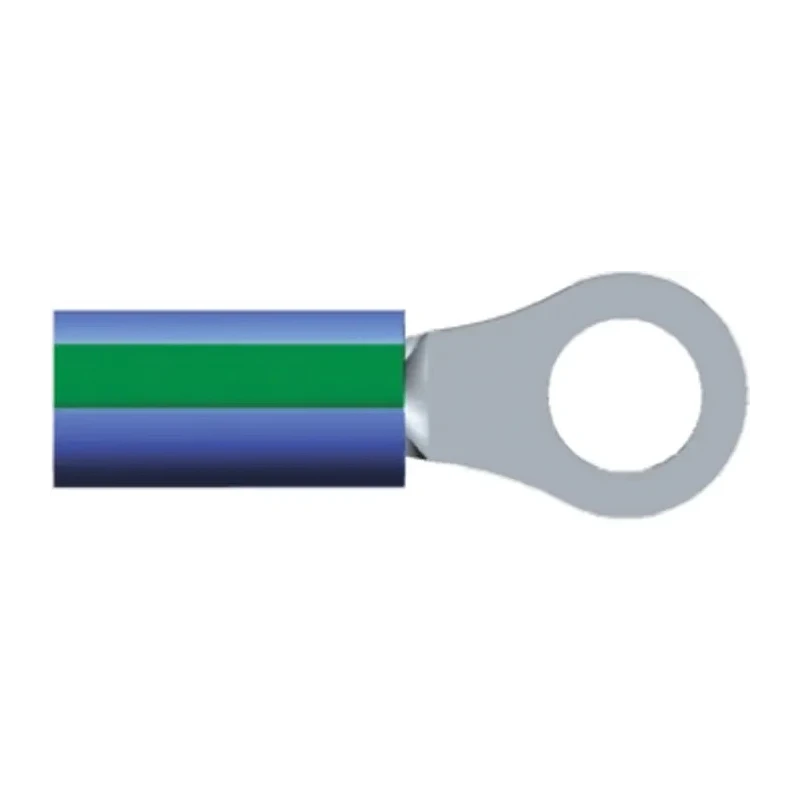

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 14 AWG Wire Size, Green, Blue 51864-9

TE Connectivity 51864-9 PIDG Insulated Ring Terminal M5 Stud Size 14 AWG Wire Size is engineered for uniform reliability in the most challenging circuit environments. Its precision-formed copper body offers high conductivity and robust electrical performance. The copper sleeve surrounding the wire barrel enhances wire insulation support and prevents fraying, while the funnelled entry prevents turned back wire strands, allowing rapid wire insertion during production.

The Ring Terminal includes a colour coded nylon insulation sleeve to aid in wire size identification and tooling. Serrations inside the wire barrel ensure maximum contact and tensile strength after crimping, producing a uniform and reliable connection. This design enables secure electrical contacts suitable for various industrial and commercial applications.

Applications include instrumentation and control systems, lighting installations, power supplies, panel boxes, transportation equipment, lifting devices, motors, aerospace systems, and household or commercial appliances. These terminals are compliant with UL, CSA, and RoHS standards, ensuring safety, environmental stewardship, and high-quality manufacturing.

Product dimensions include an outer ring diameter of 7.92 mm, inner ring diameter of 5 mm, overall length of 23.01 mm, and a thickness of 0.79 mm. The terminal is designed to support wire and stud sizes of 14 AWG and M5 respectively, operating safely up to 105°C.

The terminal features a high conductivity copper body. It is insulated with a durable nylon sleeve for wire protection. Provides excellent wire insulation support via a copper sleeve. Features serrations in the wire barrel for maximum contact and tensile strength.

Colour coded sleeves facilitate easy identification of wire size and tooling. Funnelled wire entry design ensures fast and easy wire insertion. Suitable for applications including control instruments, lighting, and aerospace.

Complies with UL, CSA, and RoHS standards for safety and environmental compliance. The terminal supports wire sizes of 14 AWG with an M5 stud size. Maximum operating temperature is 105 degrees Celsius. Explore the extensive range of quality components at EnvMart to meet your professional electrical wiring needs.
