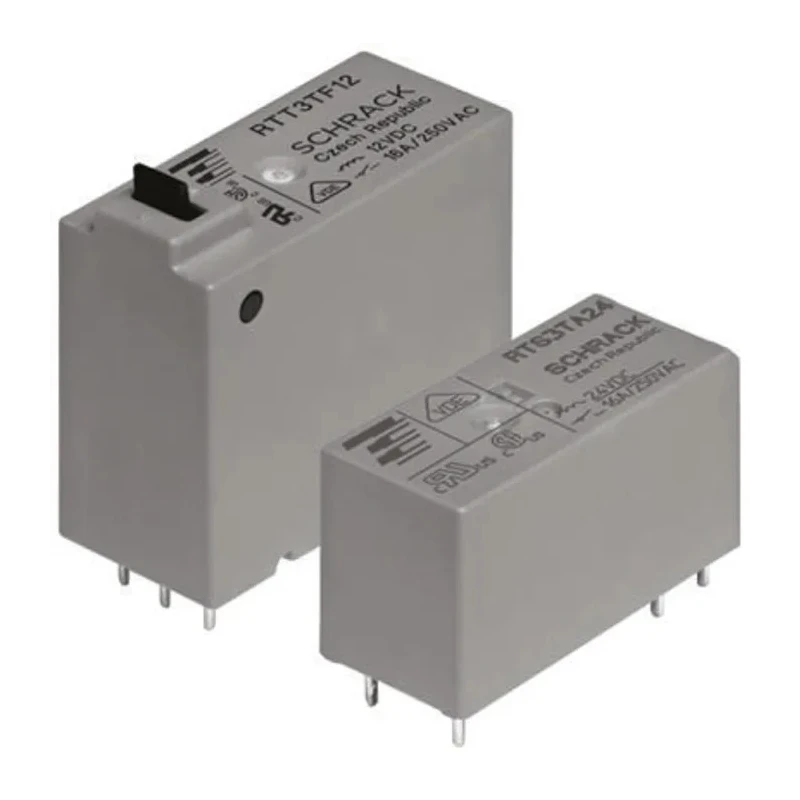

TE Connectivity High Inrush PCB Power Relay 12V DC Coil 16A Switching Current SPST RTS3TF12
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTS3TF12 |
| Width | 12.7mm |
| Mount Type | PCB |
| Series | RT |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 240Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 600mW |
Key Features
- Offers a high inrush current capability suitable for demanding applications.
- Single Pole Single Throw (SPST) contact configuration for straightforward control.
- Designed for PCB mounting with solder terminal type for ease of installation.
- Compact dimensions with length of 29mm, width of 12.7mm, and height of 15.7mm.
- Operates reliably between -40°C to 85°C ambient temperatures.
- Coil power consumption is only 600mW for efficient energy usage.
- Complies with RoHS standards ensuring environmental safety.
- Suitable for lighting systems, filament lamps, motors, and sensor control applications.
Product Description
TE Connectivity RTS3TF12 is a high-quality PCB Power Relay featuring a 12V DC coil voltage and 16A switching current. It is designed for reliable operation in industrial and electrical control applications requiring efficient switching performance.
This relay belongs to the RT1 series of high inrush relays and supports bistable operation. It features a Single Pole Single Throw (SPST) contact configuration, making it suitable for basic control circuits.
The device is compact, measuring 29mm in length, 12.7mm in width, and 15.7mm in height, allowing for space-efficient PCB mounting. It uses solder pins for secure and permanent mounting.
Its operating temperature range of -40°C to 85°C ensures functionality in a variety of environmental conditions. The coil power is very low at 600mW, which helps reduce overall power consumption in electronic circuits.
The silver alloy and tungsten contact materials provide excellent durability and reliability under high current loads and switching cycles. This relay supports up to 16A switching current at 250VAC with a making and breaking capacity compliant with IEC 60669-1 standards.
Applications include control of lighting systems, movement sensors, filament and incandescent lamp loads, motors, and other general-purpose switching tasks in industrial, commercial, and automation environments.
Offers a high inrush current capability suitable for demanding applications. Single Pole Single Throw (SPST) contact configuration for straightforward control. Designed for PCB mounting with solder terminal type for ease of installation.
Compact dimensions with length of 29mm, width of 12.7mm, and height of 15.7mm. Operates reliably between -40°C to 85°C ambient temperatures. Coil power consumption is only 600mW for efficient energy usage. Silver alloy and tungsten contact material ensures long service life and durability.
Complies with RoHS standards ensuring environmental safety. Suitable for lighting systems, filament lamps, motors, and sensor control applications. This product is ideal for use in electrical automation, industrial control, HVAC systems, manufacturing processes, and general electronics applications.
Explore more from TE Connectivity and related categories at EnvMart for comprehensive electronics and electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 16A.
The coil voltage for this relay is 12V DC.
It measures 29mm in length, 12.7mm in width, and 15.7mm in height.
It operates reliably within a temperature range of -40°C to 85°C.
It features a Single Pole Single Throw (SPST) contact configuration.
The coil power consumption is 600mW.
This relay is designed for PCB mounting with solder terminal type for secure installation.
The contacts are made from silver alloy and tungsten, providing durability under high current loads.
It complies with RoHS standards, ensuring environmental safety.
This relay is suitable for applications including lighting systems, motors, filament lamps, and sensor control.
The coil resistance is 240Ω.
It can switch up to 400V AC.
