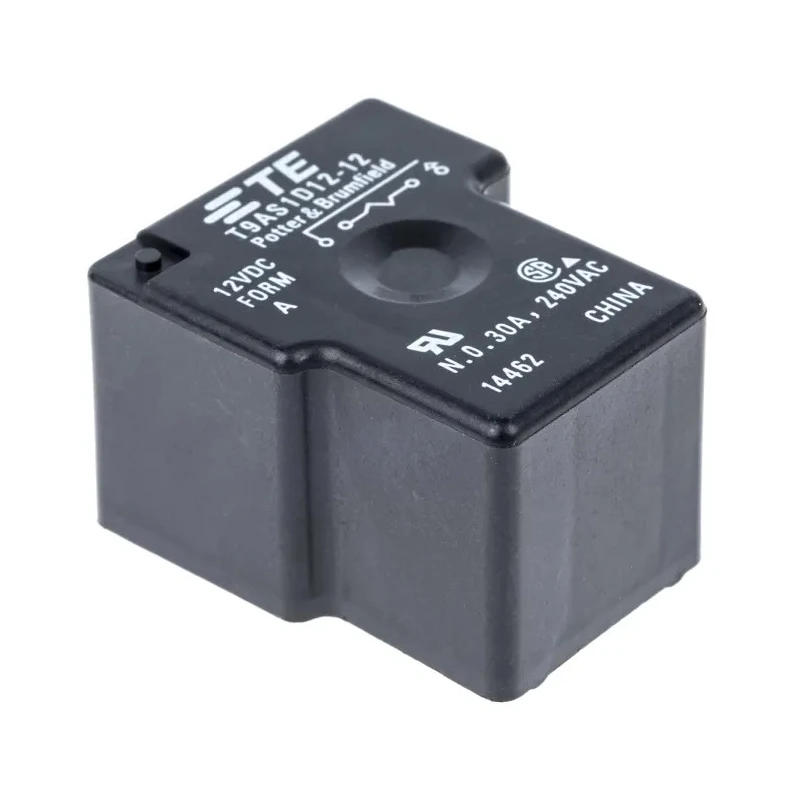

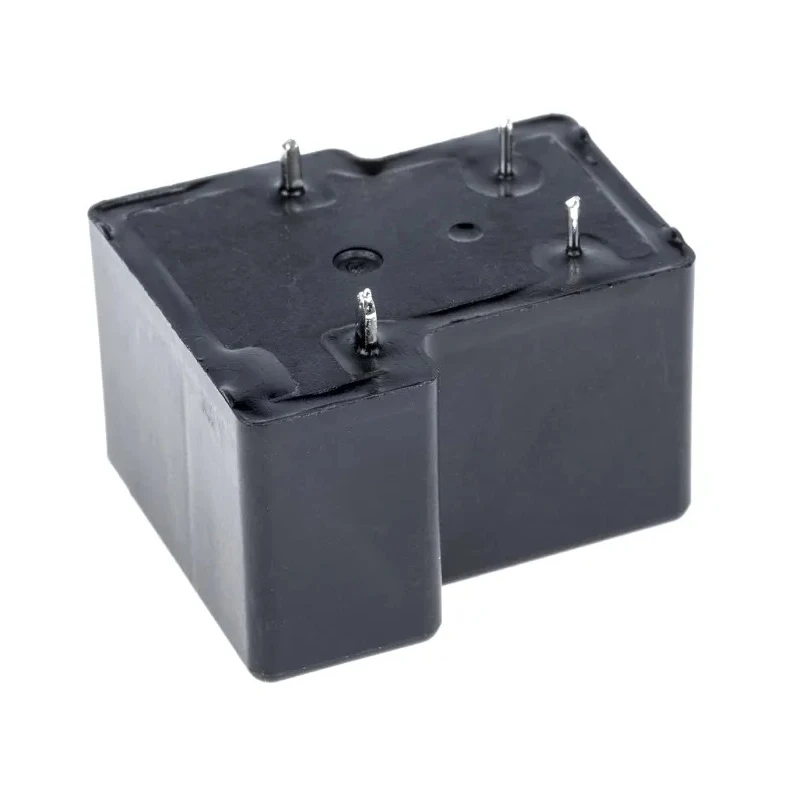

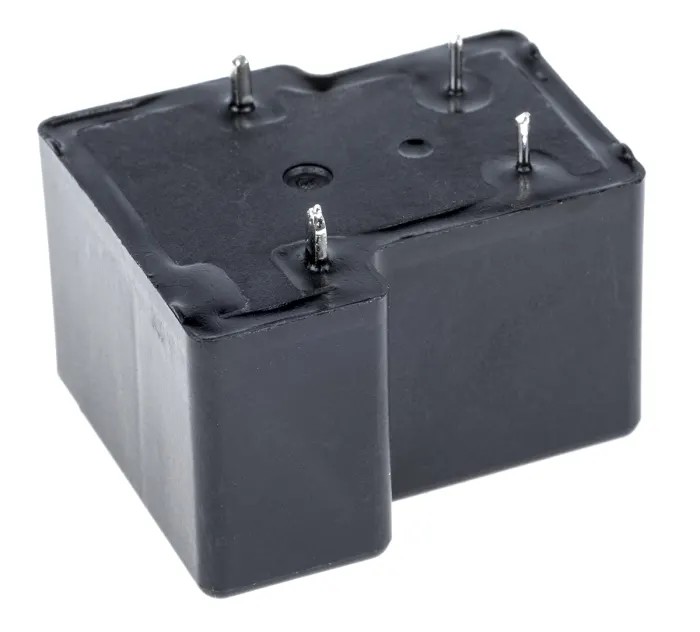

TE Connectivity PCB Power Relay 12V dc Coil 30A Switching Current SPST T9AS1D12-12
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 20.4mm |
| Operating Temperature Range | -55 → +85°C |
| Length | 32.5mm |
| Model | T9AS1D12-12 |
| Width | 27.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | T9A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -55°C |
| Switching Current | 30A |
| Terminal type | Solder |
| Contact Resistance | 75mΩ |
| Standards/Approvals | IEC 61810, RoHS |
| Coil Resistance | 144Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 0.9W |
Key Features
- Designed for PCB mounting with solder terminal type.
- Operating temperature range from -55°C to 85°C for wide application usage.
- Silver alloy contact material ensures reliable electrical conductivity.
- Coil resistance of 144 ohms with coil power rating of 0.9 watts.
- Supports switching DC voltage up to 28V and AC voltage up to 277V.
- Complies with IEC 61810 standards and RoHS directive.
- Contact resistance of 75 milliohms for efficient operation.
Product Description
TE Connectivity T9AS1D12-12 is a high-quality PCB power relay designed for industrial and commercial electrical applications. Featuring a 12V dc coil, this relay supports a robust switching current of 30A with a Single Pole Single Throw (SPST) contact configuration, suitable for demanding switching operations on printed circuit boards.
The relay incorporates silver alloy contacts which ensure enhanced electrical conductivity and durability. It operates reliably across a temperature range from -55°C to 85°C, making it versatile for use in harsh industrial environments. Its compact design, with dimensions of 32.5mm length, 27.4mm width, and 20.4mm height, facilitates easy integration into electronic assemblies.
With a coil resistance of 144 ohms and a coil power consumption of just 0.9 watts, this relay is energy-efficient. It handles switching of DC voltages up to 28V and AC voltages up to 277V, suitable for a variety of circuit needs. The solder terminal type and PCB mount facilitate straightforward assembly in automated manufacturing processes.
Designed for PCB mounting with solder terminal connection. Wide operating temperature range from -55°C to 85°C supports industrial and commercial environments. Compliance with IEC 61810 standards and RoHS ensures product reliability and environmental safety.
High switching capacity of 30A makes it ideal for power relay applications. Compact size allows integration into tight electronic spaces. Silver alloy contacts for reduced contact resistance and enhanced durability. Low coil power consumption of 0.9W supports efficient energy usage.
Robust contact resistance rating of 75 milliohms minimizes power loss.
This PCB power relay is suitable for use in electrical control systems, automation equipment, industrial machinery, and other applications requiring reliable high-current switching. Its durability and standardized compliance make it an excellent component for circuit designers and engineers.
Explore the full range of Power Relays and related electrical components for your industrial and electronic needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 30A, making it suitable for high-current applications.
This model operates with a coil voltage of 12V DC.
The dimensions of the relay are 32.5mm in length, 27.4mm in width, and 20.4mm in height.
It operates within a temperature range of -55°C to 85°C, suitable for various environments.
The relay features a Single Pole Single Throw (SPST) contact configuration.
The coil resistance is 144 ohms, which contributes to its energy efficiency.
The contacts are made of silver alloy, ensuring reliable electrical conductivity.
It can switch AC voltages up to 277V.
It complies with IEC 61810 standards and the RoHS directive, ensuring product reliability and environmental safety.
This relay is designed for PCB mounting with solder terminals, facilitating easy integration into electronic assemblies.
The contact resistance is rated at 75 milliohms, which helps minimize power loss during operation.
The coil power consumption is 0.9 watts, contributing to its energy-efficient design.
