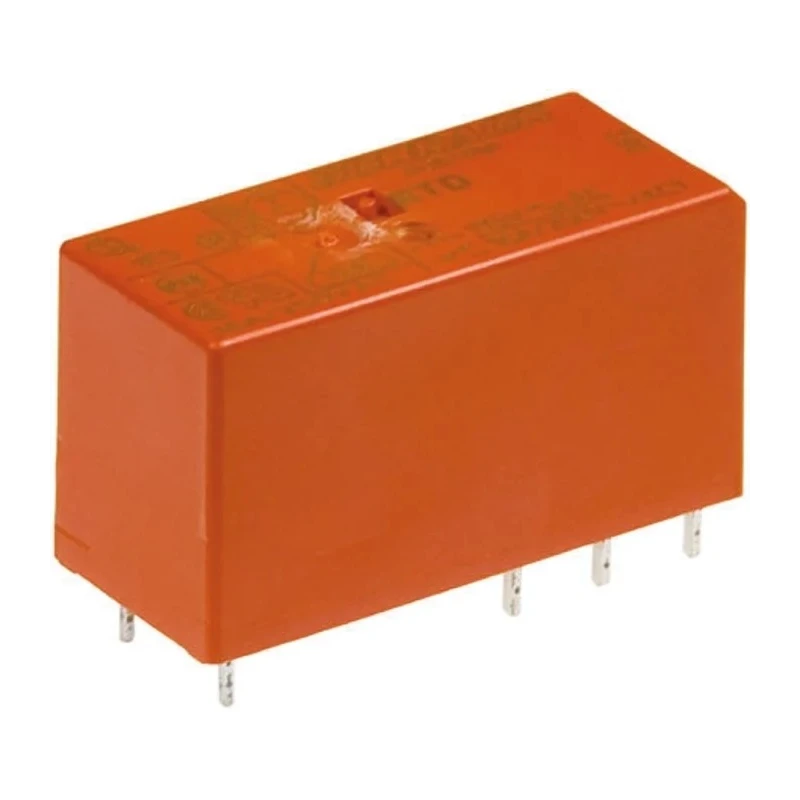

TE Connectivity PCB Power Relay 48V dc Coil 12A Switching Current SPDT RTB14048
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTB14048 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 5.5kΩ |
| Coil Voltage | 48V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Operates with a coil voltage of 48V DC for efficient control.
- Features a Single Pole Double Throw (SPDT) contact configuration.
- Rated switching current of 12 amperes suitable for medium power loads.
- Designed for PCB mounting with solder terminal type.
- Compatible with switching AC voltage up to 400V AC.
- Coil resistance of 5.5kΩ ensures stable coil operation.
- Coil power consumption at 250mW for energy-efficient performance.
- Operates in temperature range from -40°C to 85°C, suitable for industrial environments.
Product Description
TE Connectivity RTB14048 PCB Power Relay is a high-performance component designed for precise switching in industrial, automation, and domestic applications. Featuring a coil voltage of 48V DC and a robust 12A switching current, this relay is ideal for controlling medium power circuits with high reliability.
The relay boasts a SPDT (Single Pole Double Throw) contact configuration mounted on a PCB with solder terminals, facilitating easy integration into electronic assemblies. Its compact form factor with dimensions 29mm length, 12.7mm width, and 15.7mm height allows space-saving designs.
The coil resistance of 5.5kΩ and power rating of 250mW ensure efficient energy use while maintaining switching accuracy. It supports switching AC voltages up to 400V and performs reliably in harsh conditions, with a temperature range from -40°C to 85°C.
Constructed with silver nickel alloy contacts, the relay delivers high durability and low contact resistance for extended service life. It is manufactured in Austria and complies with IEC 60335-1, RoHS, and VDE standards, illustrating its quality and safety adherence.
Typical use cases include automation systems, security lighting, heating systems, and industrial machinery interfaces that require dependable switching solutions. This relay belongs to the RT1 series, known for its versatile coil voltages and contact options suitable for a wide range of PCB mounting requirements.
Operates with a coil voltage of 48V DC for efficient control. Features a Single Pole Double Throw (SPDT) contact configuration. Rated switching current of 12 amperes suitable for medium power loads. Designed for PCB mounting with solder terminal type.
Compatible with switching AC voltage up to 400V AC. Coil resistance of 5.5kΩ ensures stable coil operation. Compact dimensions: Length 29mm, Width 12.7mm, Height 15.7mm. Coil power consumption at 250mW for energy-efficient performance.
Operates in temperature range from -40°C to 85°C, suitable for industrial environments. Contact material made from durable silver nickel alloy to ensure longevity. Manufactured in Austria with approvals including IEC 60335-1, RoHS, and VDE standards compliance.
Explore more PCB Power Relays and related components in the Electronics & Electricals category on EnvMart for industrial automation and electrical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 48V DC, allowing for efficient control in various applications.
It has a rated switching current of 12 amperes, suitable for medium power loads.
This model features a Single Pole Double Throw (SPDT) contact configuration, providing versatile switching options.
The relay has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height.
It is compatible with switching AC voltages up to 400V AC, making it suitable for various applications.
The coil resistance is 5.5kΩ, which ensures stable coil operation during use.
The coil power consumption is 250mW, contributing to its energy-efficient performance.
It operates in a temperature range from -40°C to 85°C, making it suitable for industrial environments.
The contacts are made from silver nickel alloy, which helps ensure longevity and low contact resistance.
This relay complies with IEC 60335-1, RoHS, and VDE standards, illustrating its adherence to quality and safety regulations.
It is designed for PCB mounting with solder terminals, facilitating easy integration into electronic assemblies.
The relay is manufactured in Austria, reflecting its quality production standards.
