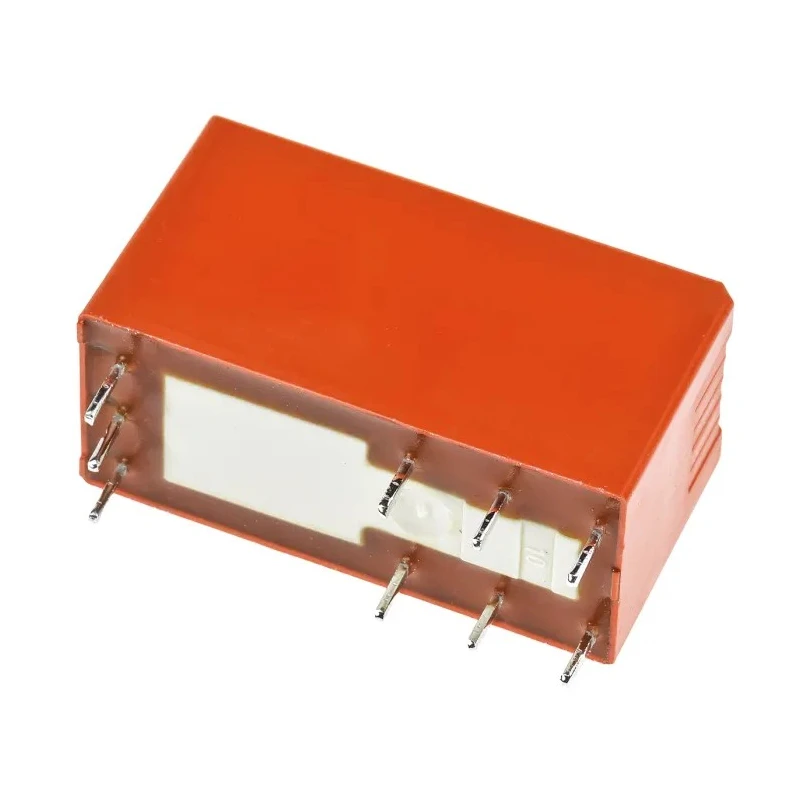

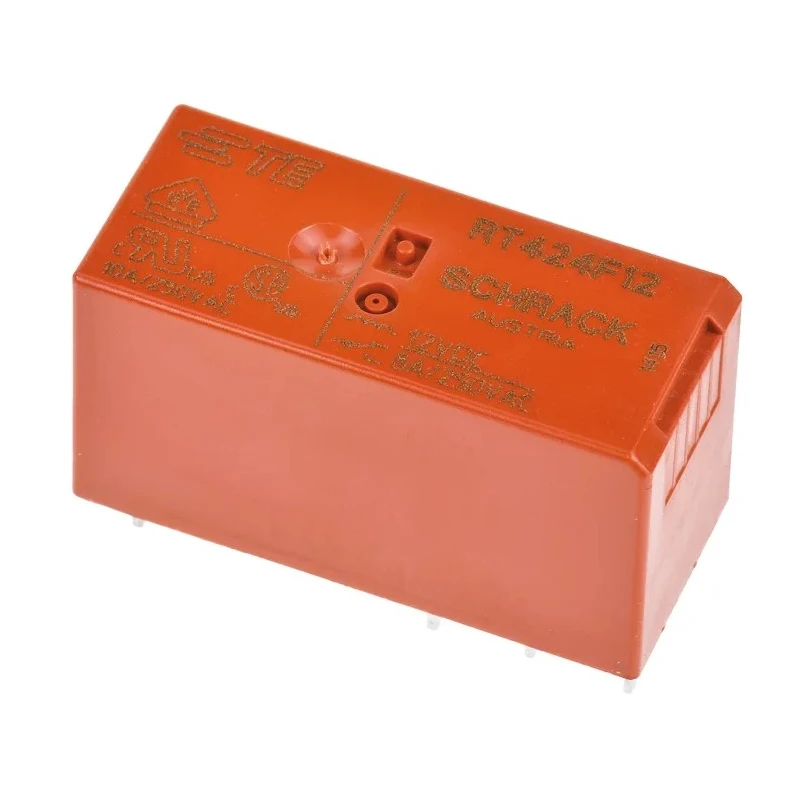

TE Connectivity PCB Power Relay 12V DC Coil 15A Switching Current DPDT RT424F12
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT424F12 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 15A |
| Terminal type | Solder |
| Standards/Approvals | EN, VDE, UL, RoHS, REACH, IEC |
| Coil Resistance | 240Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 600mW |
| TE Connectivity PCB Mount Latching Relay, 12V dc Coil, DPDTBrand | TE Connectivity |
Key Features
- This power relay is designed for PCB mounting with solder terminals.
- It operates within a temperature range of -40°C to 85°C.
- The relay supports a switching AC voltage of up to 400V AC.
- Constructed with silver alloy contact material for reliable conductivity.
- The coil resistance is 240 ohms with a coil power of 600mW.
- Complies with EN, VDE, UL, RoHS, REACH, and IEC standards.
- Ideal for industrial automation, electrical control systems, and signal conditioning applications.
Product Description
TE Connectivity RT424F12 PCB Power Relay is a high-performance relay featuring a 12V DC coil and a DPDT (Double Pole Double Throw) contact configuration designed for PCB mounting. With a switching current of 15A and switching AC voltage capacity of 400V AC, this relay is suitable for demanding industrial and electrical applications requiring reliable switching and control.
The relay is constructed with silver alloy contacts to ensure low contact resistance and durability over extensive operational cycles. The coil resistance of 240Ω and power consumption of 600mW support efficient energy use. This relay withstands operating temperatures ranging from -40°C to 85°C, making it stable for environments subjected to wide temperature variations.
Its compact dimensions of 29mm length, 12.7mm width, and 15.7mm height facilitate space-saving PCB layouts and easy integration into electronic control units. The solder terminal type ensures secure and reliable electrical connections on printed circuit boards.
Certified to meet international standards including EN, VDE, UL, RoHS, REACH, and IEC, the RT424F12 relay ensures compliance with safety, environmental, and performance regulations. It finds extensive use in industrial automation, power control systems, telecommunications, and manufacturing equipment where dependable relay switching is critical.
This power relay is designed for PCB mounting with solder terminals. It operates within a temperature range of -40°C to 85°C. The relay supports a switching AC voltage of up to 400V AC. Constructed with silver alloy contact material for reliable conductivity.
The coil resistance is 240 ohms with a coil power of 600mW. Dimensions are compact: 29mm length, 12.7mm width, and 15.7mm height. Complies with EN, VDE, UL, RoHS, REACH, and IEC standards. Suitable for industrial automation, electrical control systems, and signal conditioning applications.
This TE Connectivity power relay offers a combination of performance, reliability, and durability, making it an ideal choice for engineers and system integrators designing advanced electrical and electronic control systems.
Explore other Power Relay options and automation components at EnvMart for your next project or maintenance requirement.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 15A, making it suitable for various industrial applications.
The coil voltage for this relay is 12V DC, which is necessary for its operation.
The dimensions of this relay are 29mm in length, 12.7mm in width, and 15.7mm in height, allowing for efficient PCB layout.
This relay supports a maximum switching AC voltage of 400V AC, suitable for various electrical control systems.
The coil resistance of this model is 240 ohms, which contributes to its operational efficiency.
This relay features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching applications.
The operating temperature range for this unit is from -40°C to 85°C, making it suitable for a variety of environments.
The contacts of this relay are constructed from silver alloy, which ensures reliable conductivity.
This model uses solder terminals for secure and reliable connections on printed circuit boards.
This relay complies with several international standards including EN, VDE, UL, RoHS, REACH, and IEC, ensuring safety and performance regulations are met.
This power relay is suitable for industrial automation, electrical control systems, and signal conditioning applications, among others.
The country of origin for this relay is Austria, indicating its manufacturing location.
