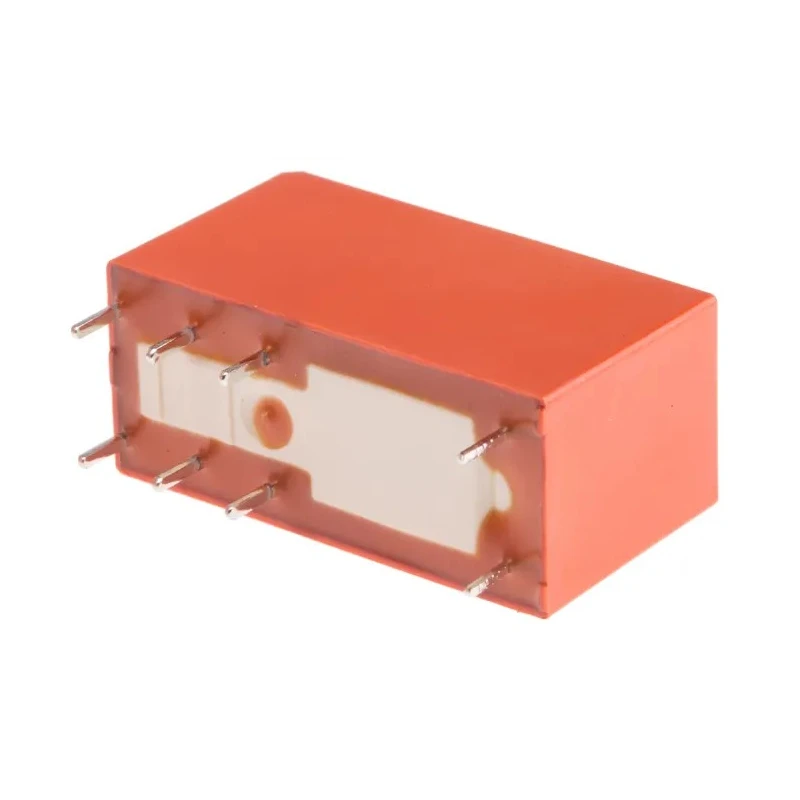

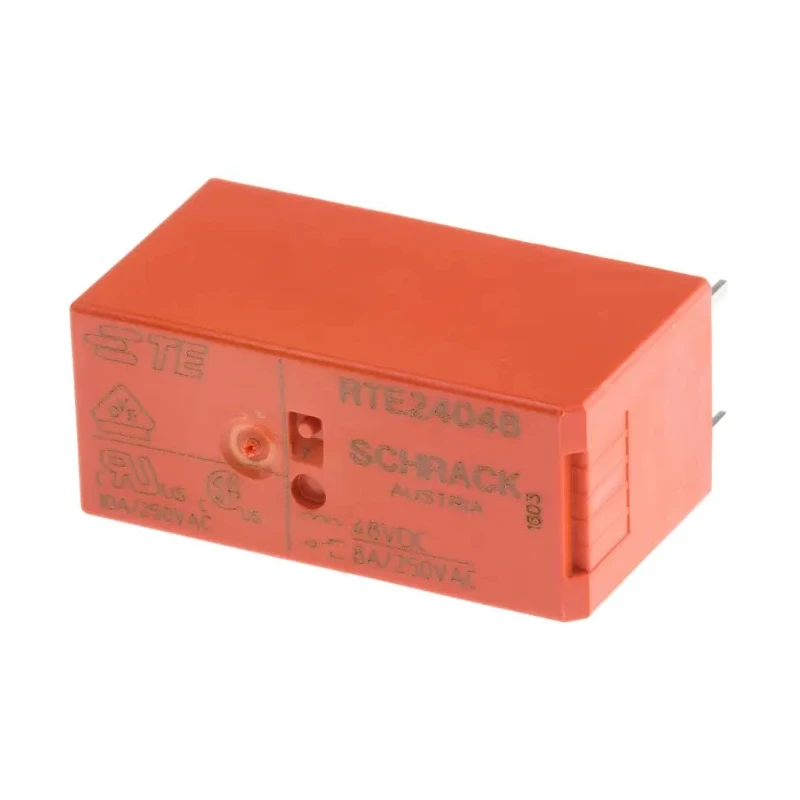

TE Connectivity Power Relay PCB Mount, 48V DC Coil Voltage, 8A Switching Current, DPDT Contact Configuration RTE24048

TE Connectivity RTE24048 Power Relay is a PCB mount power relay featuring a 48V DC coil voltage and 8A switching current with a DPDT (Double Pole Double Throw) contact configuration. This relay belongs to the RT2 series known for their quality through-hole mounting and flux-proof designs.

This power relay is designed for use in various industrial and domestic applications requiring reliable interface and automation switching solutions. Its compact size with dimensions 29mm length, 12.7mm width, and 15.7mm height enables easy PCB integration.

The contact system uses durable silver nickel alloy providing low contact resistance and long-lasting performance. The relay has a switching AC voltage rating of 400V AC and switching power up to 2kVA, ensuring robust control of loads within these limits. It operates efficiently within a temperature range of -40°C to 85°C.

The coil specifications include a resistance of 5.5kΩ and power consumption of 250mW at 48V DC coil voltage, optimized for low power usage. The relay meets major international standards including IEC 60335-1, RoHS compliance, and VDE certification, reflecting high reliability and safety standards.

Typical applications include interface switching, automation, security lighting, heating systems, and other domestic or commercial electrical control schemes requiring a dependable relay solution. The RT series offers variations such as RT1, RT3, RTB, RTD, RT4, and RTE with different pinning and protection options.

Power relay suitable for PCB mounting with solder terminals. 48V DC coil voltage providing efficient coil operation. Double pole double throw (DPDT) contact configuration for versatile applications. Switching current capacity up to 8 amperes.

Compact dimensions: length 29mm, width 12.7mm, height 15.7mm. Silver nickel alloy contact material ensures durability and low contact resistance. Operating temperature range from -40°C to 85°C ensuring wide environmental suitability.

Coil resistance of 5.5kΩ and coil power consumption of 250mW. Complies with IEC 60335-1, RoHS, and VDE standards for quality assurance. Manufactured in Austria for assured quality and performance. Explore EnvMart for a variety of reliable Power Relays and electrical components from top manufacturers to support your industrial and commercial electronics projects.
