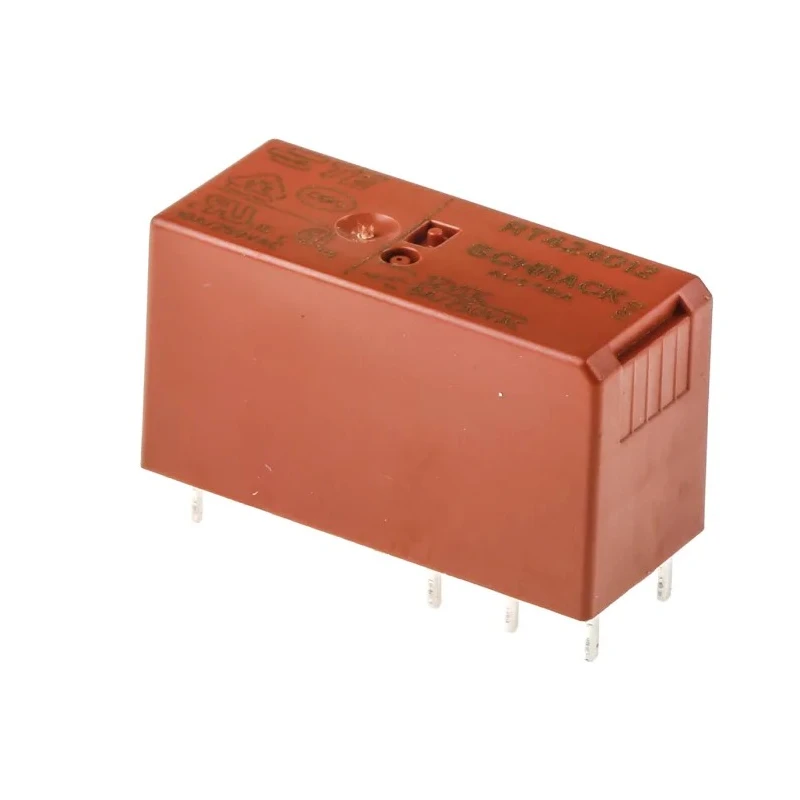

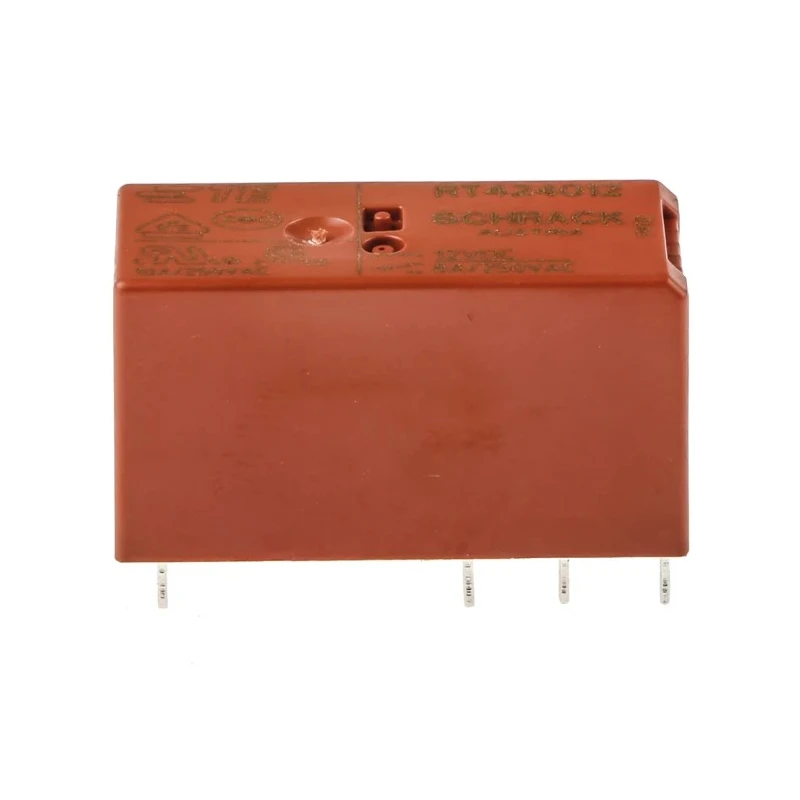

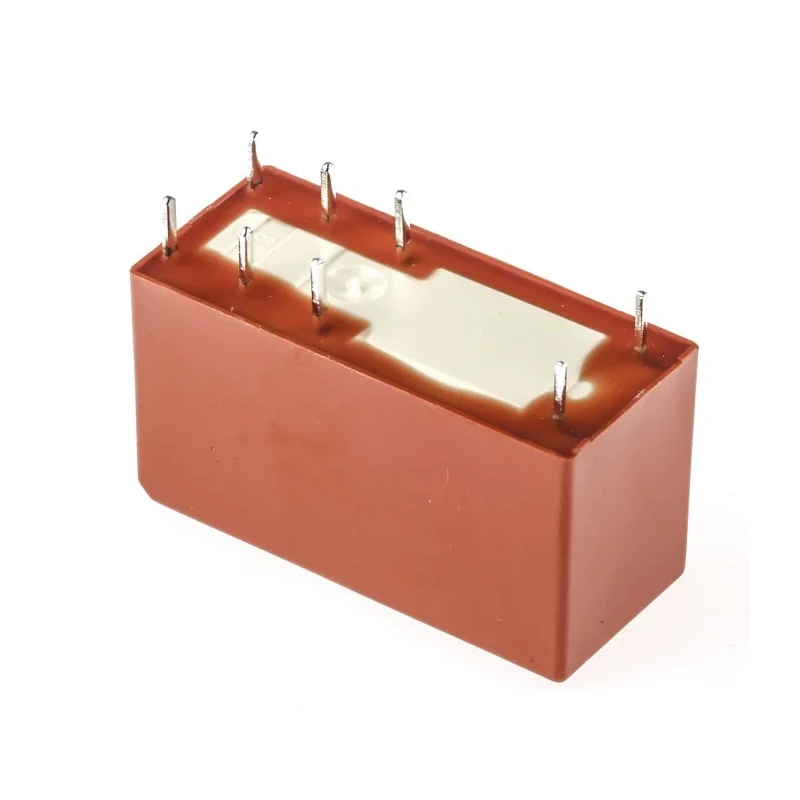

TE Connectivity PCB Power Relay 12V DC Coil 8A Switching Current DPDT RT424012 6-1393243-3
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT424012 6-1393243-3 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, VDE, IEC 60335-1 |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- The relay is designed for PCB mounting with through-hole solder terminals for secure connections.
- It supports switching AC voltage up to 400V AC, suitable for various electronic and industrial automation uses.
- Operating temperature ranges from -40°C to 85°C, ensuring durability in harsh environments.
- The coil resistance measures 360 ohms with a power consumption of 250 mW for efficient operation.
- Constructed with silver nickel alloy contacts delivering dependable conductivity and performance.
- Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height optimize PCB space usage.
- Complies with industry standards including RoHS, VDE, and IEC 60335-1 for safety and quality assurance.
- Ideal for control systems such as boilers, timers, garage door automation, POS, and interface modules.
Product Description
TE Connectivity RT424012 6-1393243-3 PCB Power Relay offers a robust solution for switching applications requiring a double pole double throw (DPDT) contact configuration. It operates on a 12V DC coil voltage and supports an 8A switching current, making it versatile for various industrial and electronic automation tasks.
The relay mounts directly onto printed circuit boards (PCB) with solder-type terminals and features a through-hole pinning of 5mm, facilitating reliable and easy installation. Coil resistance is 360 ohms with a coil power of just 250 mW, ensuring energy-efficient activation.
Designed to tolerate operating temperatures from -40°C up to 85°C, this relay withstands demanding environments while maintaining consistent performance. Silver nickel alloy contacts guarantee excellent conductivity and switching reliability, suitable for frequent cycling.
Its compact dimensions of 29mm length, 12.7mm width, and 15.7mm height assist in minimizing PCB footprint, critical for space-restricted applications. The relay’s contact configuration and switching capabilities support up to 400V AC voltage, suitable for numerous control and automation systems.
The relay is RoHS and VDE compliant and meets IEC 60335-1 standards, ensuring high safety and quality benchmarks. Common applications include boiler controls, timers, garage door openers, POS automation systems, and interface modules in industrial settings.
Manufactured in Austria, this product combines reliability with industry-grade quality from TE Connectivity, a leader in electrical components. Explore the wide range of Power Relays and related components available at EnvMart to support your industrial automation and electronic design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of 8A, making it suitable for various applications in electronic and industrial automation.
The relay operates on a 12V DC coil voltage, which is essential for its activation in control systems.
It has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, optimizing PCB space usage.
This relay can switch AC voltage up to 400V AC, making it versatile for various control applications.
The coil resistance measures 360 ohms, which contributes to its efficient operation with a power consumption of 250 mW.
It is designed for PCB mounting with through-hole solder terminals, ensuring secure connections.
The operating temperature range for this model is from -40°C to 85°C, allowing it to function in harsh environments.
The contacts are constructed from silver nickel alloy, providing dependable conductivity and performance.
It complies with RoHS, VDE, and IEC 60335-1 standards, ensuring safety and quality assurance.
Common applications include control systems for boilers, timers, garage door automation, POS systems, and interface modules.
The coil power consumption is 250 mW, which supports its energy-efficient operation.
This product is manufactured in Austria, reflecting the quality standards of TE Connectivity.
