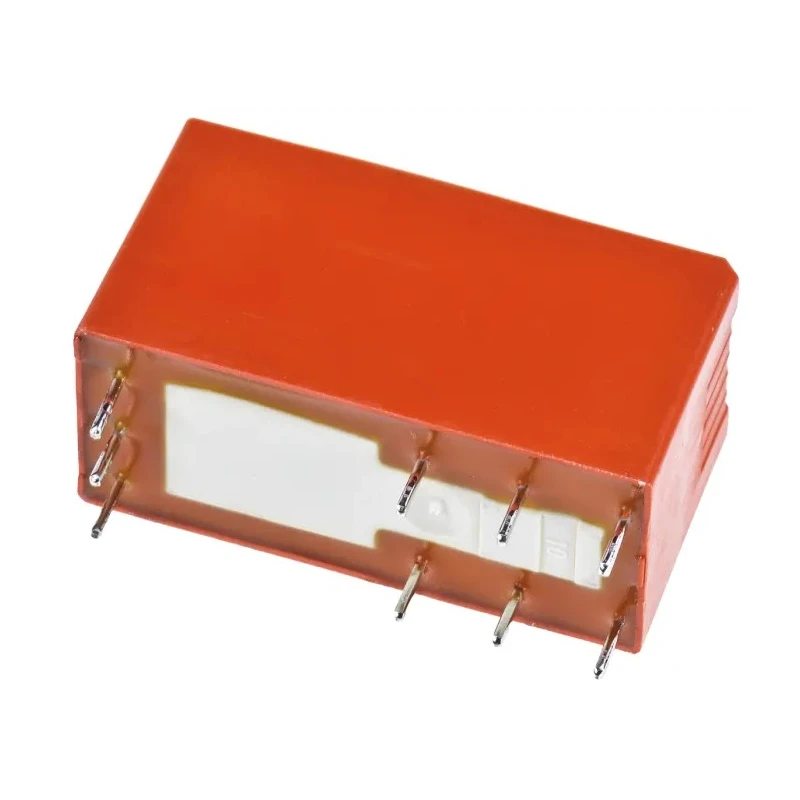

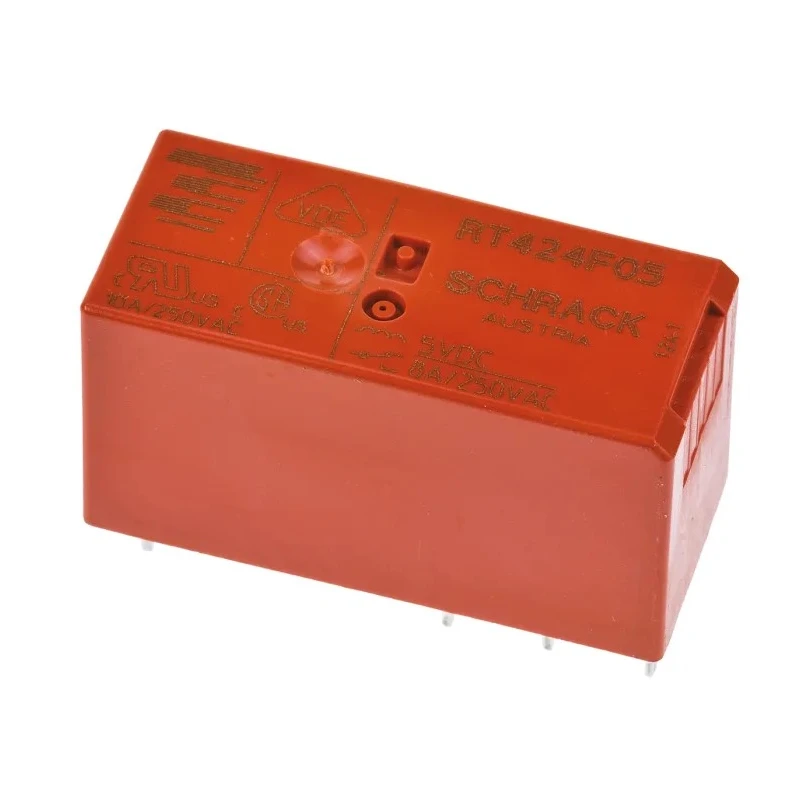

TE Connectivity PCB Power Relay, 5V DC Coil Voltage, 8A Switching Current, DPDT Contact Configuration RT424F05
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT424F05 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 42Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
Key Features
- Operates at a coil voltage of 5V DC for low power consumption.
- Double Pole Double Throw (DPDT) contact configuration for versatile switching applications.
- Maximum switching current of 8 amperes supports moderate load devices.
- Designed for PCB mounting with solder terminals for secure installation.
- Wide operating temperature range from -40°C to 85°C ensuring performance in harsh environments.
- Contact material constructed from silver alloy for durability and conductivity.
- Compliance with RoHS standards ensuring environmental safety.
- Series SCHRACK offers reinforced insulation and shock resistance up to 100g.
Product Description
TE Connectivity RT424F05 PCB Power Relay is engineered for industrial and electronic automation applications requiring reliable switching and long-term durability. This power relay operates at a coil voltage of 5 volts DC and features a double pole double throw (DPDT) contact configuration, allowing control of two separate circuits simultaneously with an 8 amp switching current capacity.
Constructed with silver alloy contacts, this relay ensures excellent conductivity and extended service life. It offers compact dimensions of 29mm length, 12.7mm width, and 15.7mm height, making it ideal for space-constrained printed circuit board (PCB) mounting with solder terminal connections.
The RT424F05 operates effectively across a temperature range from -40°C to 85°C, supporting operation in various environmental conditions. The relay is part of the SCHRACK series known for reinforced insulation and superior shock resistance, rated at 100g destructive shock, making it robust for vibration-prone manufacturing, HVAC, and industrial automation settings.
Designed as a bistable or latching relay, it is well suited for applications that require memory functions, such as retention during mains failure or power interruptions. This reliability makes it indispensable in battery-powered equipment, control systems, and automation circuits.
Operates at 5V DC coil voltage with low power consumption. DPDT contact configuration to control multiple circuits. Switching current rating of 8 amperes for moderate loads. Solder terminal mount for secure PCB integration.
Robust silver alloy contacts for reliable conductivity. Wide operating temperature range from -40°C to 85°C. Meets RoHS environmental compliance standards. Schrack series with reinforced insulation and shock resistance. Applications include industrial automation, HVAC, and battery-powered equipment.
Choose TE Connectivity RT424F05 for dependable power relay performance in demanding electronic and industrial environments. Explore more Power Relays and automation components at EnvMart for your industrial, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 5V DC, which allows for low power consumption during operation.
The maximum switching current for the RT424F05 is 8 amperes, supporting moderate load devices.
It features a Double Pole Double Throw (DPDT) contact configuration, enabling control of two separate circuits simultaneously.
This model has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, making it suitable for PCB mounting.
The RT424F05 is designed for PCB mounting and features solder terminals for secure installation.
It operates effectively across a wide temperature range from -40°C to 85°C, making it suitable for various environmental conditions.
The contacts are constructed from silver alloy, which ensures excellent conductivity and durability.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
This power relay is part of the SCHRACK series, known for reinforced insulation and shock resistance.
The coil resistance of the RT424F05 is 42Ω, which is relevant for its operation.
It is suitable for industrial automation, HVAC systems, and battery-powered equipment due to its reliable switching capabilities.
The maximum switching AC voltage for the RT424F05 is 400V AC, suitable for various applications.
