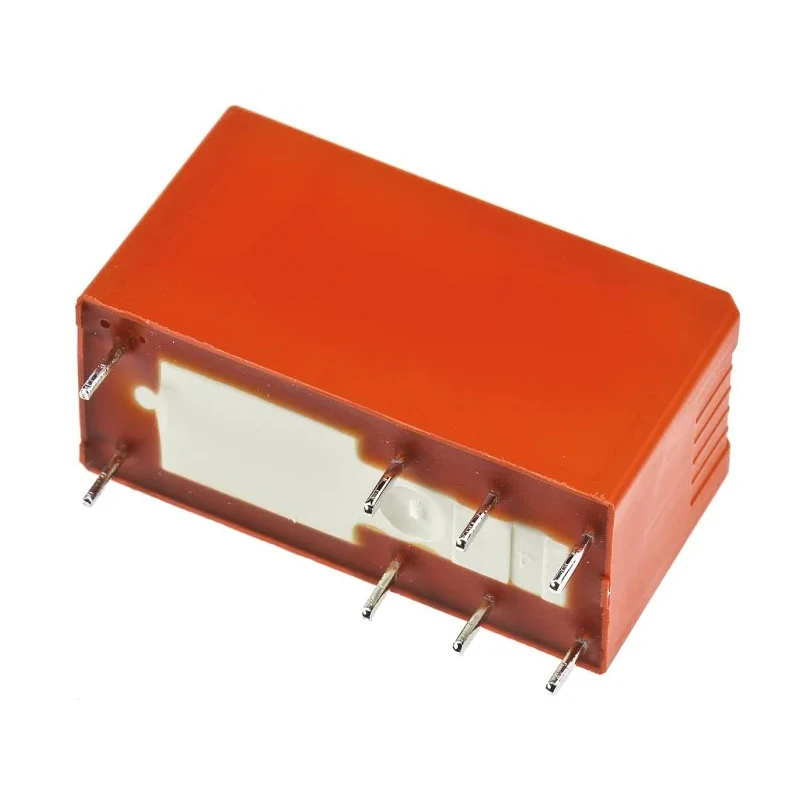

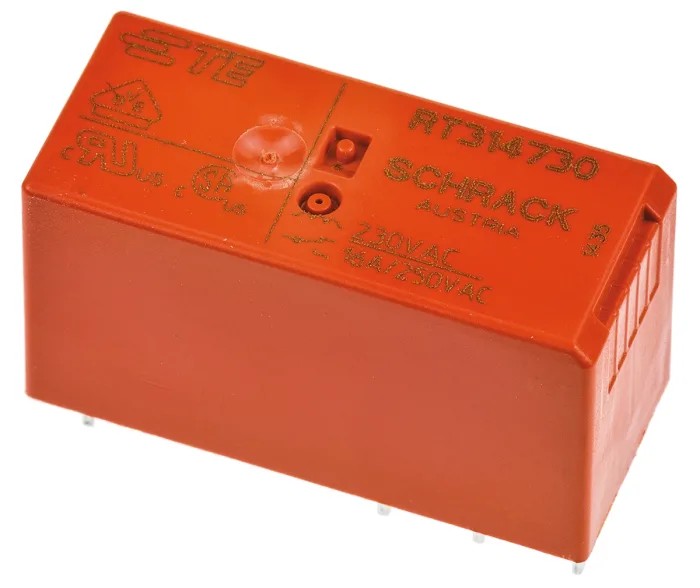

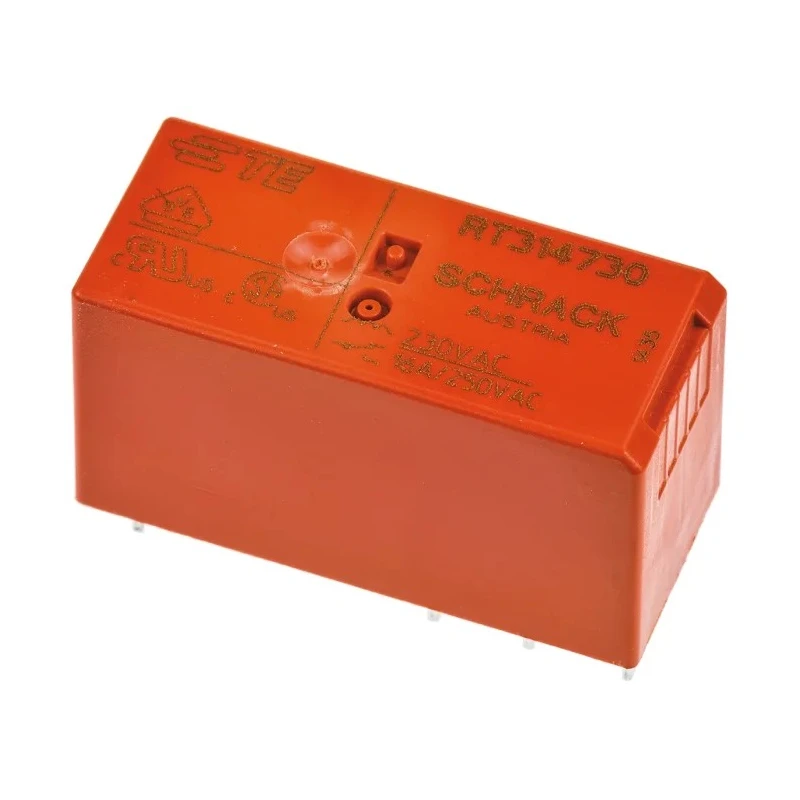

TE Connectivity PCB Power Relay 230V AC Coil 16A Switching Current SPDT RT314730
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314730 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 32.5kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Designed for PCB mounting with solder terminal type ensuring secure installation.
- Operates efficiently at coil power consumption of 250mW and coil resistance of 32.5kΩ.
- Capable of switching up to 400V AC with a power rating of 4kVA.
- Wide operating temperature range from -40°C to 70°C suitable for various applications.
- Constructed with durable silver nickel alloy contact material for long service life.
- Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height for space-saving PCB integration.
- Complies with IEC 60335-1, RoHS, and VDE standards for safety and environmental regulations.
- Ideal for interface, automation, domestic appliances, security lighting, and heating systems.
Product Description
TE Connectivity RT314730 is a high-quality PCB Power Relay featuring a 230V AC coil voltage and a 16A switching current in a Single Pole Double Throw (SPDT) contact configuration. This relay is part of the RT1 series, designed for reliable through-hole mounting on PCBs with a solder-type terminal for robust electrical connections.
With a coil power rating of 250mW and a coil resistance of 32.5kΩ, it operates efficiently, switching AC voltages up to 400V and power levels up to 4kVA. The relay functions reliably across a broad temperature range from -40°C to 70°C, making it suitable for diverse industrial and commercial applications.
The compact design measures 29mm in length, 12.7mm in width, and 15.7mm in height, allowing integration into space-constrained PCB layouts. Contacts employ a silver nickel alloy material, providing durability and stable electrical performance over extended operating periods.
Manufactured in Austria, this relay complies with key international standards including IEC 60335-1, RoHS, and VDE, ensuring adherence to safety, quality, and environmental guidelines.
Commonly deployed in automation systems, interface controls, domestic electrical appliances, security lighting, and heating equipment, the RT314730 relay enhances control accuracy and system reliability. The RT1 series relays are flux proof with 3.5mm pinning, optimized for PCB installations requiring dependable switching performance.
Designed for PCB mounting with solder terminal type ensuring secure installation. Operates efficiently at coil power consumption of 250mW and coil resistance of 32.5kΩ. Capable of switching up to 400V AC with a power rating of 4kVA.
Wide operating temperature range from -40°C to 70°C suitable for various applications. Constructed with durable silver nickel alloy contact material for long service life. Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height for space-saving PCB integration.
Complies with IEC 60335-1, RoHS, and VDE standards for safety and environmental regulations. Ideal for interface, automation, domestic appliances, security lighting, and heating systems. Explore more products within the Power Relays category at EnvMart for comprehensive industrial and electronic control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can switch up to 400V AC.
The coil voltage for this relay is 230V AC.
It has a switching current rating of 16A.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height.
The coil power consumption is 250mW.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
It operates efficiently within a temperature range from -40°C to 70°C.
It uses a solder terminal type for secure PCB mounting.
The contacts are made from a silver nickel alloy material.
It complies with IEC 60335-1, RoHS, and VDE standards.
It is commonly used in automation systems, interface controls, domestic appliances, security lighting, and heating equipment.
This relay is manufactured in Austria.
