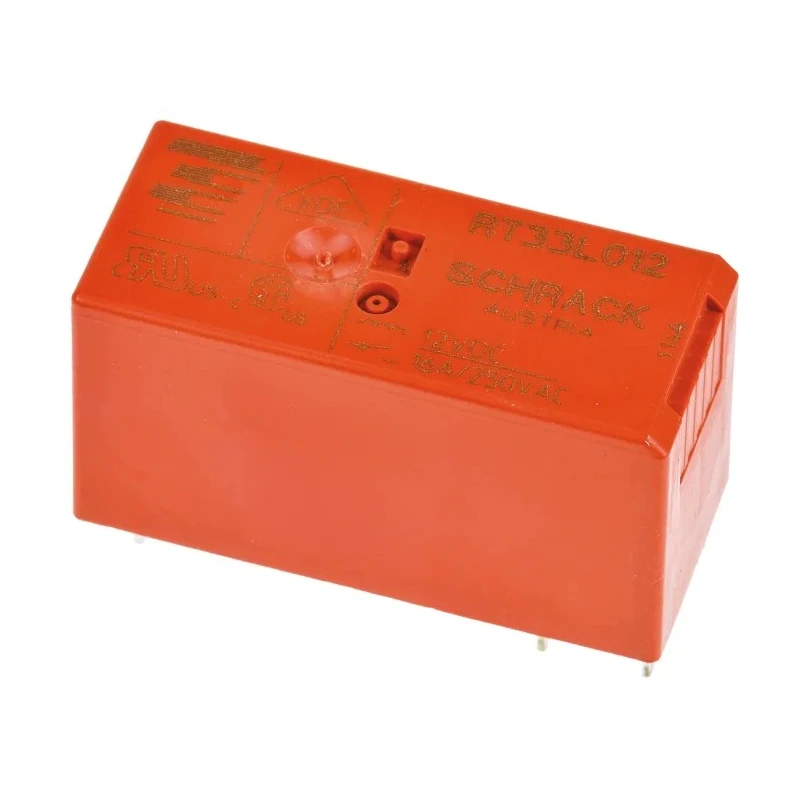

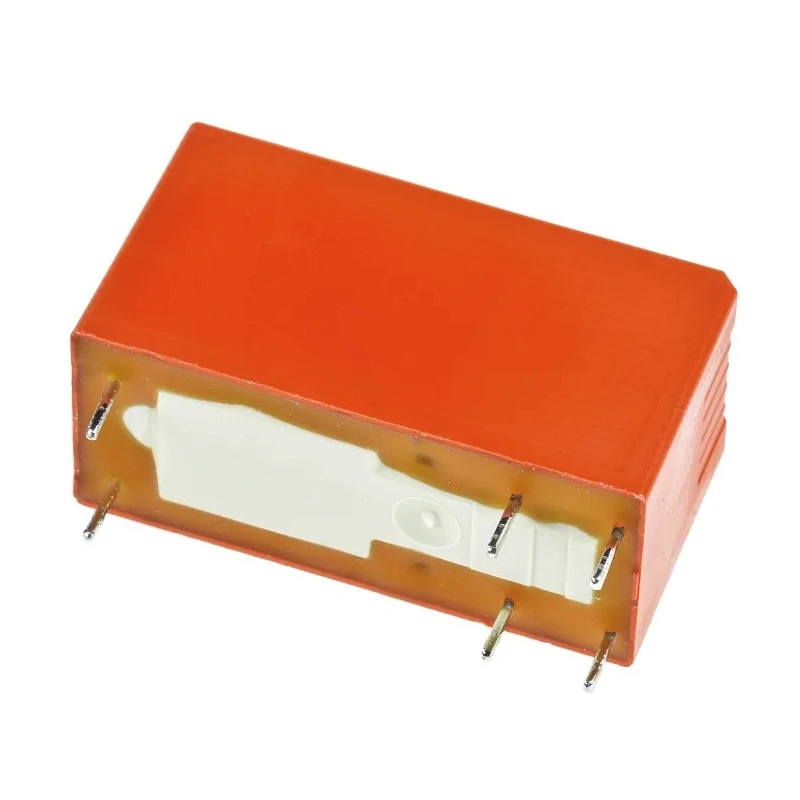

TE Connectivity PCB Power Relay 12V DC Coil 16A Switching Current SPST RT33L012

TE Connectivity RT33L012 is a high-performance PCB Power Relay designed for industrial and automation applications requiring reliable switching at 12V DC coil voltage and 16A current capacity. Its SPST contact configuration ensures straightforward switching operations on PCBs while offering reinforced insulation and a creepage clearance of 10mm for safety.

The relay supports a switching AC voltage up to 400V AC and delivers a making and breaking capacity compliant with IEC 60669-1 standards. The silver alloy contacts provide excellent conductivity and wear resistance, guaranteeing durability in demanding applications.

With an operating temperature range from -40°C to 85°C, the RT33L012 is suitable for harsh environments. Its compact form factor, measuring 29mm in length, 12.7mm in width, and 15.7mm in height, enables efficient space utilization on circuit boards. Coil resistance is precisely 360Ω, and the coil power consumption is only 250mW, enhancing energy efficiency.

This relay is ideal for applications such as lighting control systems, movement sensors, filament lamps, incandescent lamps, motors, and other equipment requiring high inrush current handling. It meets multiple international certifications including UL, CSA, and VDE lending confidence for global use.

Operates at a coil voltage of 12V DC with low coil power consumption of 250mW. Single Pole Single Throw (SPST) contact configuration suitable for various switching tasks. Supports a maximum switching current of 16A and switching AC voltage up to 400V AC.

Robust silver alloy contact material enhances durability and conductivity. Designed for extreme temperature range from -40°C to 85°C operation. Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height for dense PCB layouts.

Complies with IEC 60335-1, RoHS, and VDE standards ensuring safety and environmental compliance. Applications include lighting systems, sensors, lamps, and motors requiring high inrush current capacity.

Whether used in industrial automation, manufacturing equipment, HVAC control, or electrical signal conditioning, the TE Connectivity RT33L012 reliably enhances operational efficiency and safety on printed circuit boards.
