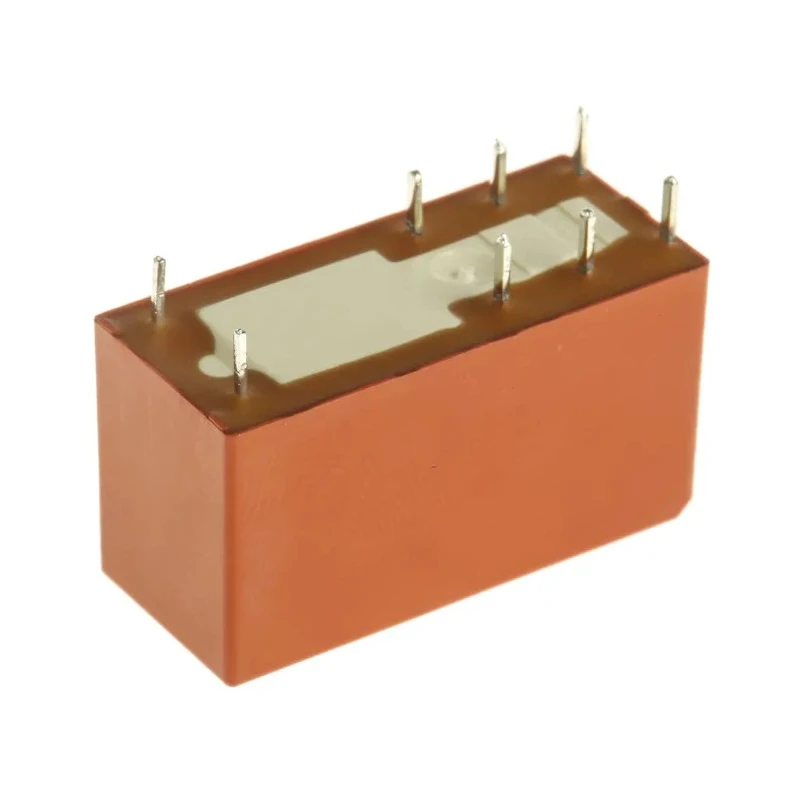

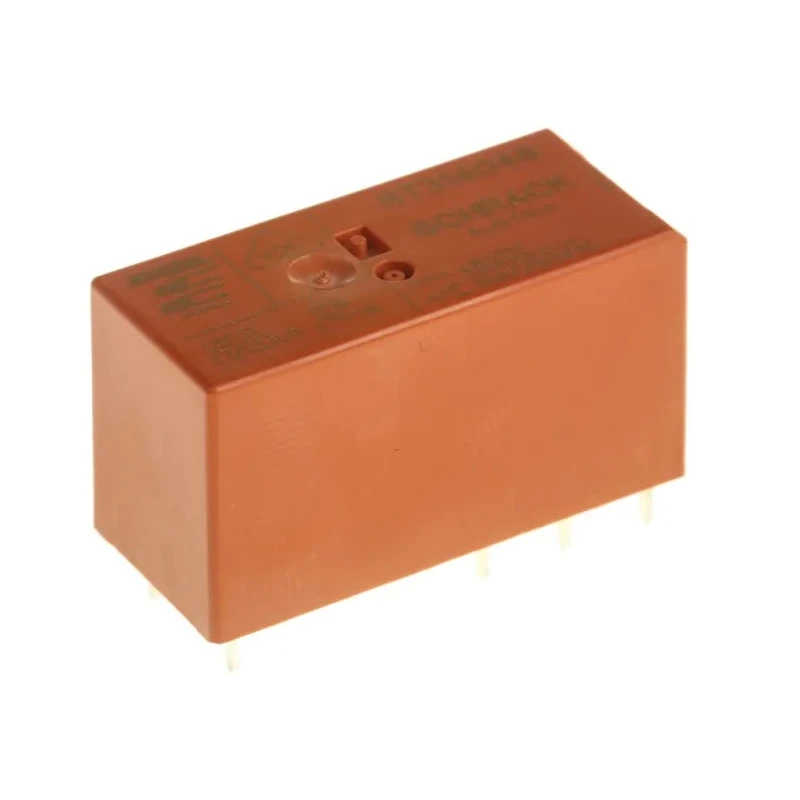

TE Connectivity PCB Power Relay, 48V DC Coil, 16A Switching Current, SPDT RT314048
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314048 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 5.5kΩ |
| Coil Voltage | 48V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Designed with a 48V DC coil for reliable power relay operation.
- Supports a maximum switching current of 16 amperes.
- Single Pole Double Throw (SPDT) contact configuration for versatile switching.
- Mount type is optimized for PCB soldering installation.
- Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height.
- Coil resistance is 5.5 kΩ with coil power consumption of 250 mW.
- Suitable for operation from -40°C up to 85°C ambient temperature.
- Switching AC voltage rated up to 400V AC with switching power of up to 4 kVA.
Product Description
TE Connectivity RT314048 is a PCB power relay featuring a 48V DC coil and a 16A switching current rating with Single Pole Double Throw (SPDT) contact configuration. This relay is engineered for industrial and automation applications requiring reliable control of high power loads on printed circuit boards.
The RT314048 relay belongs to the RT1 series, characterized by through-hole mounting compatibility with 3.5 mm pinning and flux-proof design, suitable for robust soldering on PCB systems.
Compact sized at 29 mm in length, 12.7 mm in width, and 15.7 mm in height, this relay offers a coil resistance of 5.5 kiloohms and operates with a low coil power consumption of 250 milliwatts, ensuring efficient energy use.
Designed to perform reliably in harsh environments, it operates within a temperature range from -40°C minimum to 85°C maximum, meeting the demands of industrial, automation, security lighting, heating, and domestic system applications.
The relay supports switching voltages up to 400V AC with a power switching capacity of 4 kVA, and the contacts made of silver nickel alloy ensure long operational life and resistance to wear.
Compliance with IEC 60335-1, RoHS directives, and VDE standards guarantees quality, safety, and environmental adherence. Designed with a 48V DC coil for reliable power relay operation. Supports a maximum switching current of 16 amperes.
Single Pole Double Throw (SPDT) contact configuration for versatile switching. Mount type is optimized for PCB soldering installation. Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height. Coil resistance is 5.5 kΩ with coil power consumption of 250 mW.
Suitable for operation from -40°C up to 85°C ambient temperature. Switching AC voltage rated up to 400V AC with switching power of up to 4 kVA. Contact material constructed of silver nickel alloy for durability. Complies with IEC 60335-1, RoHS, and VDE standards for safety and environmental compliance.
This TE Connectivity PCB power relay RT314048 is ideal for use in electrical automation systems, industrial machinery control, security lighting, and heating control systems, offering robust performance and compliance with international standards.
Explore similar high-quality Power Relays and other relay types at EnvMart for your industrial and automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current of this relay is 16 amperes.
This model operates with a coil voltage of 48V DC.
The relay has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height.
It features a Single Pole Double Throw (SPDT) contact configuration, allowing versatile switching.
The relay supports switching AC voltages up to 400V AC.
The coil resistance is 5.5 kΩ.
The coil power consumption is 250 milliwatts.
It can operate in ambient temperatures ranging from -40°C to 85°C.
The contacts are made of silver nickel alloy, which contributes to their durability.
This relay complies with IEC 60335-1, RoHS directives, and VDE standards.
It is designed for PCB soldering installation with a terminal type that is solder-compatible.
The relay belongs to the RT1 series, which is characterized by its robust design for industrial applications.
