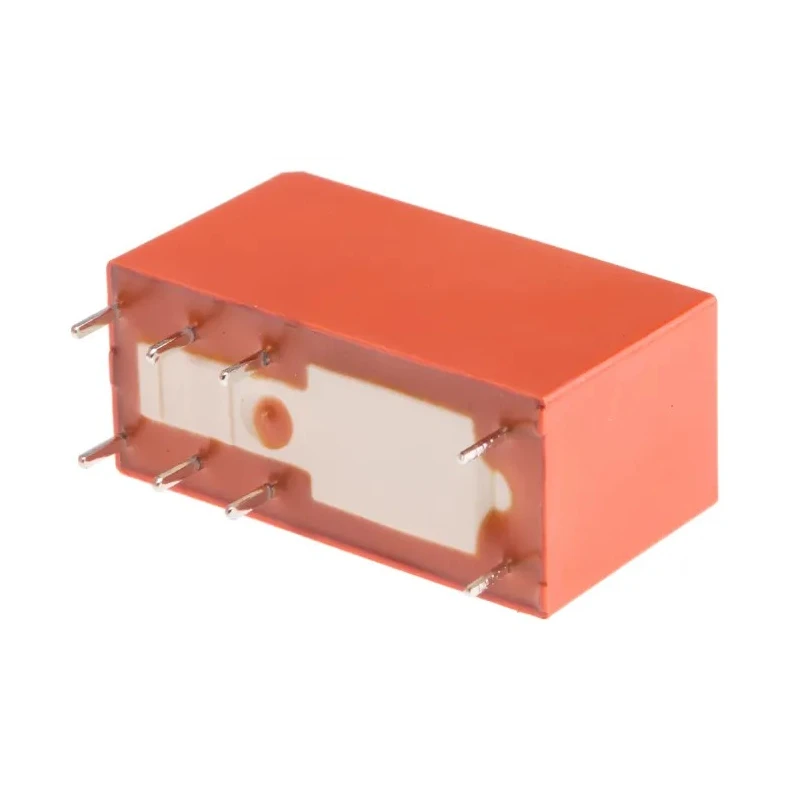

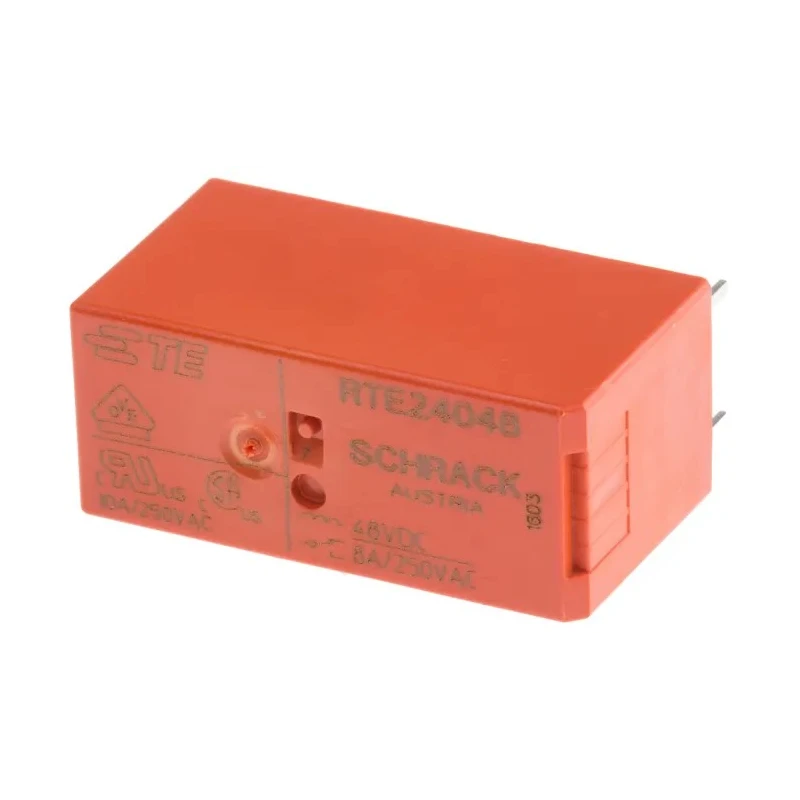

TE Connectivity Power Relay PCB Mount DPDT 48V DC Coil 8A Switching Current RTE24048

TE Connectivity RTE24048 Power Relay is an advanced double-pole double-throw (DPDT) relay designed for PCB mounting in various power switching applications. Operating with a 48V DC coil voltage and a switching current capacity of 8A, this relay offers reliable performance in industrial, automation, and domestic usage scenarios.

The RT2 series relay features solder terminal type mounting with a compact form factor measuring 29mm in length, 15.7mm in height, and 12.7mm in width, ensuring easy integration into printed circuit boards. The coil resistance is specified at 5.5kΩ with a low coil power consumption of 250mW, promoting energy-efficient operation.

This relay supports an operating temperature range from -40°C to 85°C, making it suitable for applications that require durability under extreme environmental conditions. Silver nickel alloy contacts provide excellent conductivity and long service life by resisting corrosion.

The RTE24048 complies with international safety and quality standards such as IEC 60335-1, RoHS, and VDE, guaranteeing both performance and regulatory compliance.

Applications include interface and automation circuits, domestic appliance control, security lighting, and heating system controls. Its reliable switching capability and robust construction make it ideal for these industrial and commercial use cases.

DPDT contact configuration supports dual-pole double-throw switching. Coil voltage of 48V DC ensures efficient operation with low coil power consumption of 250mW. Switching current rating of 8A suitable for various industrial and automation applications.

Compact dimensions of 29mm length, 15.7mm height, and 12.7mm width allow easy PCB integration. Coil resistance measured at 5.5kΩ for stable coil performance. Operating temperature range from -40°C to 85°C ensures durability in harsh conditions.

Silver nickel alloy contacts offer excellent conductivity and corrosion resistance. Series RT2 design with PCB solder terminal type for secure mounting. Complies with IEC 60335-1, RoHS, and VDE standards for quality and safety.

Ideal for use in interface circuits, automation, domestic appliances, security lighting, and heating systems. Explore the Electronics & Electricals Power Relay category on EnvMart for more relay options from TE Connectivity and other trusted brands.
