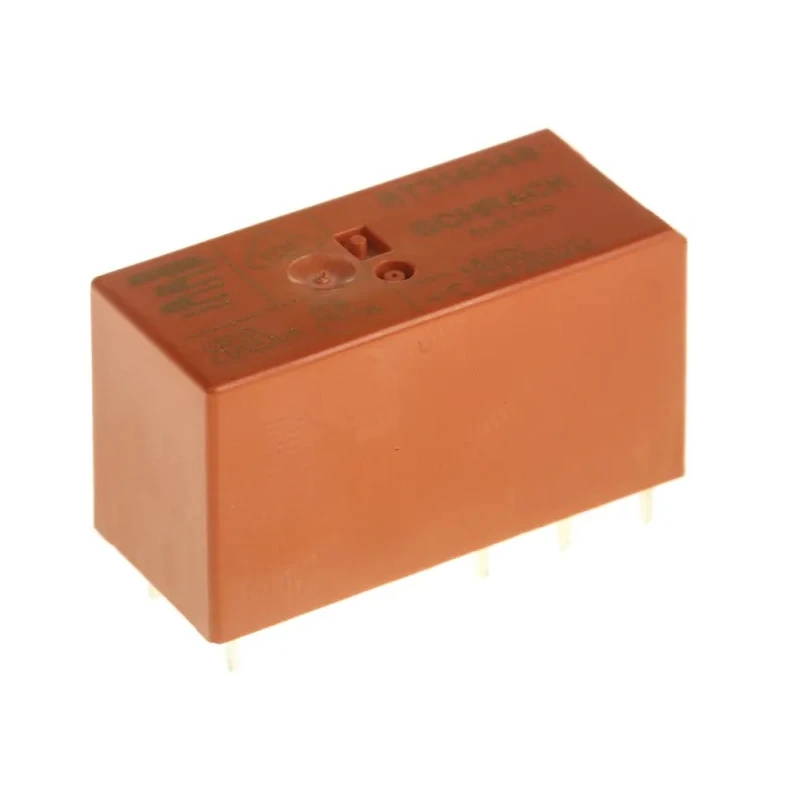

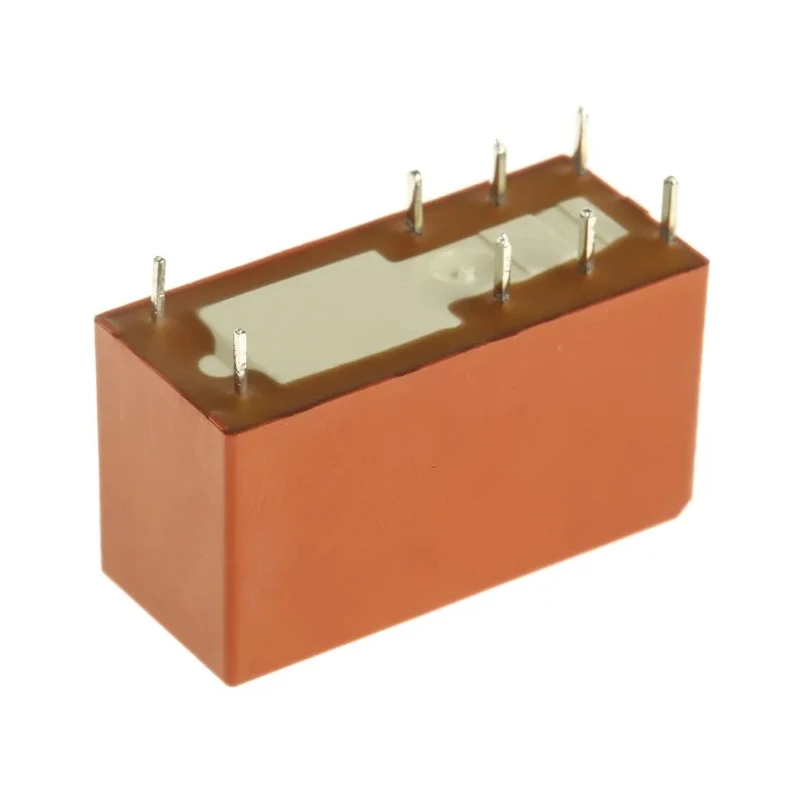

TE Connectivity PCB Power Relay 48V dc Coil 16A Switching Current SPDT RT314048
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314048 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 5.5kΩ |
| Coil Voltage | 48V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- The relay is designed for PCB mounting with solder terminals.
- It has a coil resistance of 5.5kΩ and coil power consumption of 250mW.
- Operational temperature range from -40°C to 85°C ensures performance in various conditions.
- Contact material uses silver nickel alloy for reliable electrical conduction.
- Complies with IEC 60335-1, RoHS, and VDE standards for safety and environmental compliance.
- Designed for applications in interface, automation, domestic systems, security lighting, and heating systems.
- RT series relays are flux proof with 3.5mm pinning suitable for various industrial uses.
Product Description
TE Connectivity RT314048 PCB Power Relay is a high-quality power relay featuring a 48V dc coil voltage and a 16A switching current capacity with SPDT contact configuration. Designed for PCB mounting with solder terminals, this relay belongs to the RT1 series and supports diverse industrial and domestic applications.
The relay has a coil resistance of 5.5kΩ and consumes 250mW coil power, providing efficient operation while maintaining compact dimensions of 29mm length, 15.7mm height, and 12.7mm width. It operates reliably in temperature ranges from -40°C up to 85°C, making it suitable for harsh environments.
The contact material is made of silver nickel alloy, ensuring excellent conductivity and durability. The relay meets several industry standards including IEC 60335-1, RoHS, and VDE certifications, making it compliant with safety and environmental requirements.
The RT series includes various mounting pin sizes and configurations with flux proof and wash tight designs, optimized for industrial automation, interface systems, security lighting, heating systems, and other applications requiring robust relay solutions.
TE Connectivity RT314048 relay package ensures compatibility with through-hole mounting PCB designs, enhancing manufacturing efficiency and product reliability. With a switching AC voltage rating of 400V ac and switching power of 4kVA, it accommodates a broad range of power relay needs.
The relay is designed for PCB mounting with solder terminals. It features a 48V dc coil voltage and 16A switching current. Dimensions: Length 29mm, Width 12.7mm, Height 15.7mm. Coil power consumption is 250mW, coil resistance 5.5kΩ.
Operating temperature from -40°C to 85°C ensures durable performance. Contact material is silver nickel alloy for long-lasting reliability. Complies with IEC 60335-1, RoHS, and VDE standards. Suitable for industrial, automation, domestic, security lighting, and heating system applications.
Explore a wide range of TE Connectivity Power Relays on EnvMart for efficient and dependable relay solutions in electronics and electrical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 16A, making it suitable for various applications requiring this level of current.
The relay operates with a coil voltage of 48V dc, which is essential for its activation and performance.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height, allowing for compact PCB mounting.
It has a coil power consumption of 250mW, which contributes to its efficient operation.
This model operates reliably within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
It features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching applications.
The contact material is made of silver nickel alloy, which ensures good electrical conductivity and reliability.
It complies with IEC 60335-1, RoHS, and VDE standards, ensuring safety and environmental compliance.
This relay is designed for PCB mounting with solder terminals, facilitating easy integration into electronic circuits.
The RT314048 relay can handle a maximum switching AC voltage of 400V ac, suitable for various applications.
It is designed for applications in interface, automation, domestic systems, security lighting, and heating systems.
The coil resistance is 5.5kΩ, which is an important specification for its electrical characteristics.
