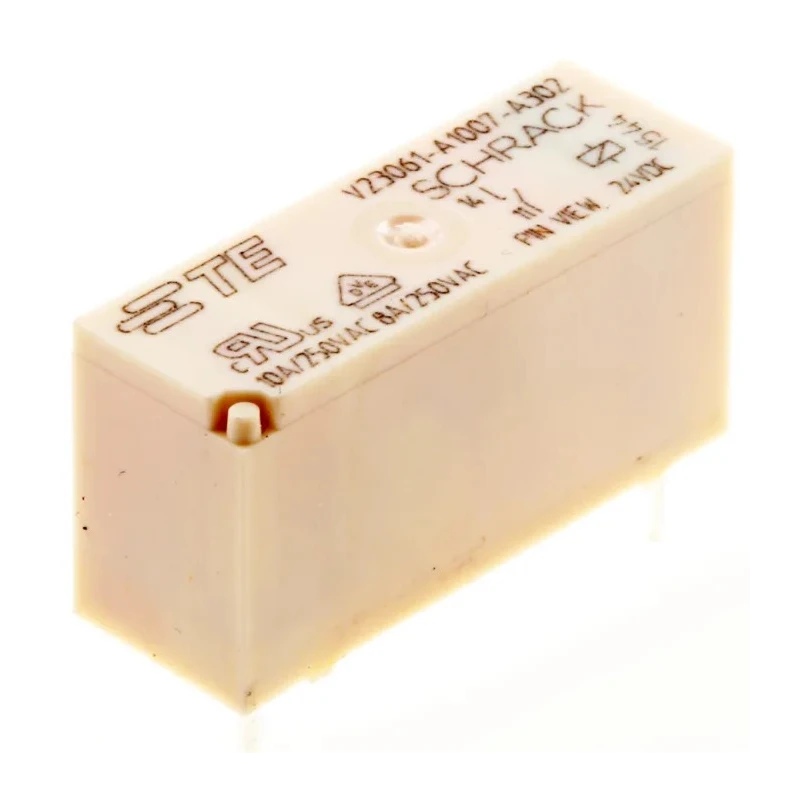

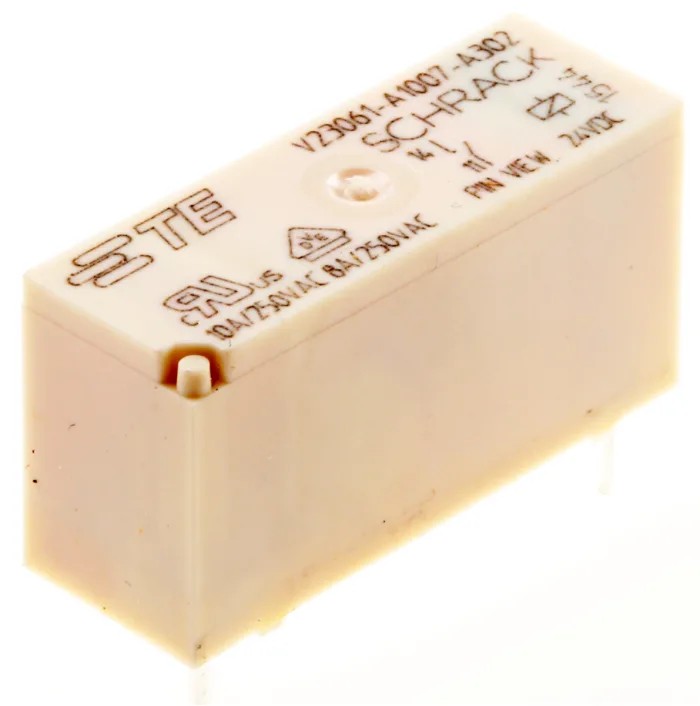

TE Connectivity Power PCB Relay 24V dc Coil 8A Switching Current SPST V23061A1007A302

TE Connectivity V23061A1007A302 is a robust power PCB relay designed with a 24V dc coil voltage and 8A switching current capacity, offering single-pole single-throw (SPST) contact configuration suitable for various industrial and electrical automation tasks.

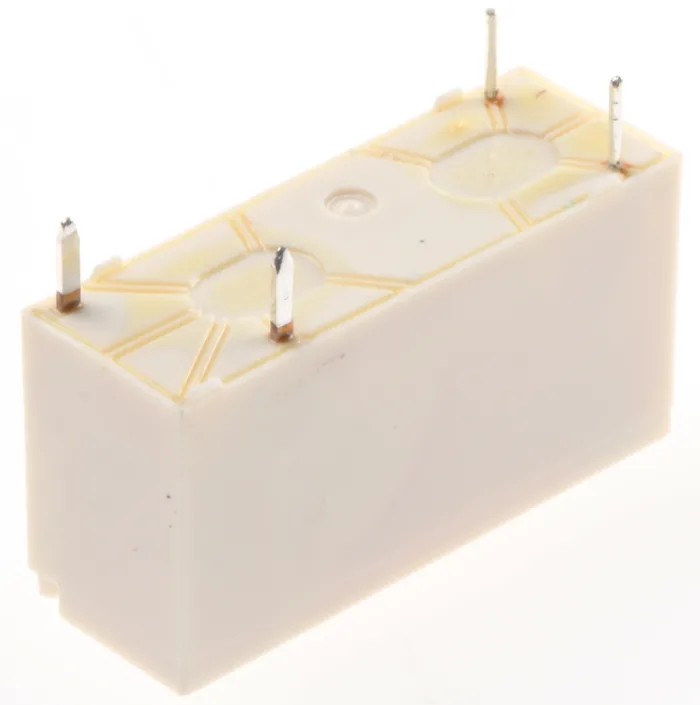

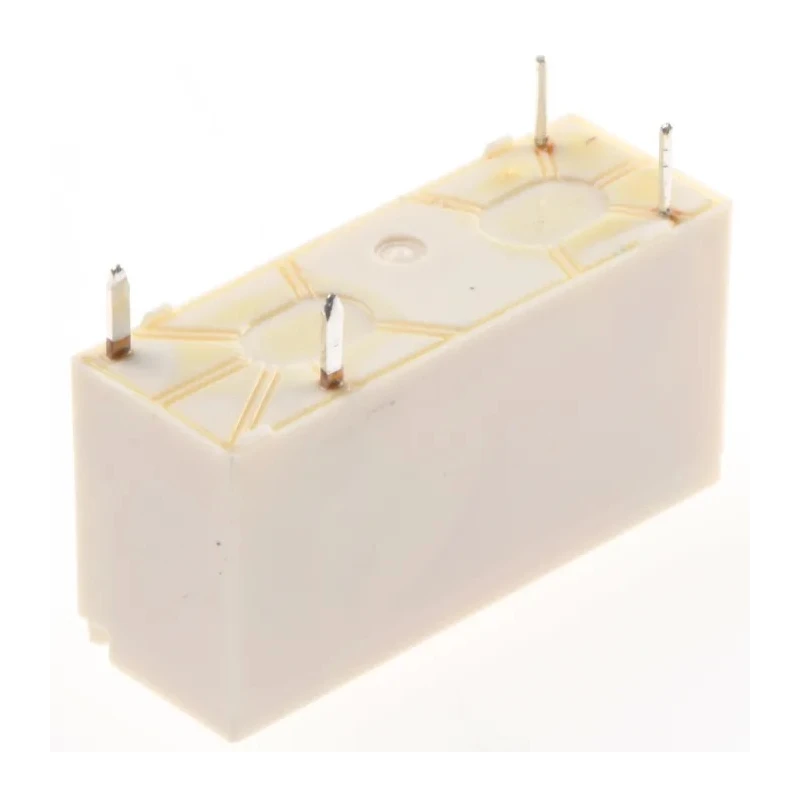

The relay features solder type terminals enabling secure PCB mounting, making it ideal for integration in control circuits and power management systems. This component operates efficiently within a broad temperature range from -40°C minimum to a maximum of 85°C, allowing reliable performance in harsh environments.

The coil resistance is precisely 2.3kΩ, consuming low coil power of only 254mW, optimising energy usage in circuits.

Constructed with high-quality silver alloy contacts, the relay delivers outstanding durability and high conductivity, supporting high inrush currents with AgSnO contact technology.

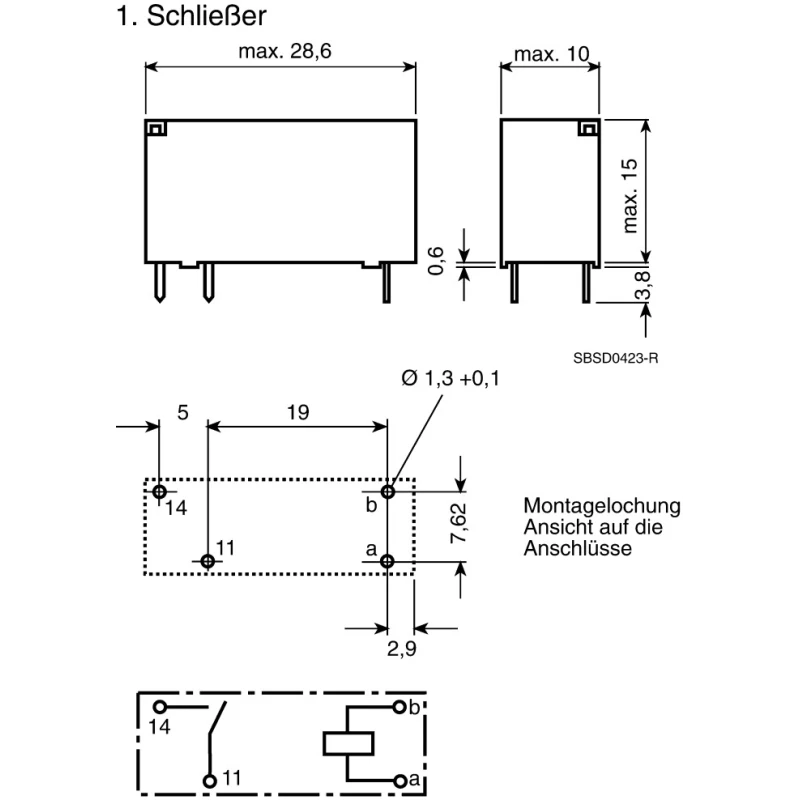

Physical dimensions of the relay measure 28.6mm in length, 10mm in width, and 15mm in height, contributing to its compact form factor suited for dense PCB layouts.

Certified to meet international standards such as REACH, RoHS, UL, and VDE, it ensures compliance with safety and environmental regulations for industrial and commercial applications.

This relay serves critical functions in automation systems, manufacturing equipment, HVAC controls, and other industrial applications requiring reliable switching capabilities at up to 400V AC voltage levels.

The relay supports a switching AC voltage up to 400V ac. It is designed for PCB mounting with solder terminal type for secure installation. Operates reliably in temperature range from -40°C to 85°C. The coil resistance is 2.3kΩ and coil power consumption is 254mW.

Constructed with silver alloy contact material for high durability and conductivity. The compact dimensions are 28.6mm length, 10mm width, and 15mm height. Certified with standards including REACH, RoHS, UL, and VDE ensuring quality and safety compliance.

High inrush current capacity with AgSnO contact and protection class II. Washproof and suitable for industrial automation and electrical control applications. Explore more TE Connectivity components and advanced Power Relay products on EnvMart to enhance your industrial automation and electrical system designs.
